Donati GBP UB I-Profile Wall Mounted Under Braced Jib Crane

Manual Rotation Swing Jib Crane with I-Profile Beam

As manually rotated jib cranes, the GBP UB I-profile jib crane range for Donati is available with lifting capacities from 125 kg to 2000 kg and jibs from 2m to 8m and is designed and manufactured according to the ISO A5 classification.

GBP UB Jib Crane Features

• 250° slewing range of the jib arm as standard. This slew range can also be restricted if required, with an optional and adjustable mechanical slew restrictor.
• Lifting capacity options are available from 63kg up to 2 tonnes. Specific capacities in between 63kg and 2000kg can also be accommodated if required, such as 100kg or 750kg for example.
• Arm lengths are available from 2 metres up to 5 metres as standard, with custom lengths available in between, such as 4.5 metres.
• The arm is made using a laminated I-beam form, which allows a traditional beam trolley and/or chain hoist to run on the lower flange of the I-beam.
• The girder is self-supporting and cantilevered, so it has no support tie rods, and it is directly integral with, via suitable reinforcement, the rotation tube.
• This version allows the optimum use of the available space at a height due to the absence of tie rods and allows the maximum use of the hook path.
• The arm allows the addition of either an electric or a hand-pushed trolley.

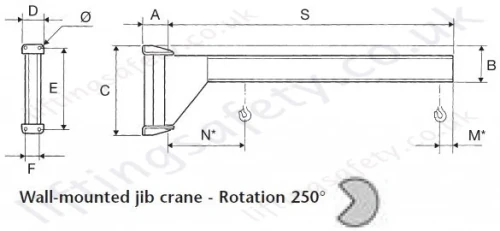

Jib Specifications

The below jib crane weights are in kilograms (kg), and dimensions are in millimetres (m) unless otherwise stated.

Mounting Brackets

Size of Crane		A	B	C	D	E	F
Reactions (kN)	Q2	2.95	5	9.2	16.85	26.10	25.6
	R	11.9	21.75	27.05	49	66.8	120
Type of Bracket		01		02		03
Staybolts	ø	M14		M20		M30
Clamping couples	(Nm)	67		200		685
Bracket Type: Short (mm)	Code	GBP010110		GBP020110		GBP030110
	U	50		60		80
	V	400		490		532
	Z	75		90		135
	Weight (kg)	21		36		75
Pillar dimensions (mm)	x min	200		250		300
	x max	330		400		400
	y max	850		810		750
Bracket Type: Medium (mm)	Code	GBP010120		GBP020120		GBP030120
	U	50		80		100
	V	530		640		682
	Z	75		120		145
	Weight (kg)	26		60		96
Pillar dimensions (mm)	x min	200		250		400
	x max	460		550		550
	y max	850		770		710
Bracket Type: Long (mm)	Code	GBP010130		GBP020120		GBP030130
	U	60		80		120
	V	720		840		882
	Z	85		120		155
	Weight (kg)	40		74		132
Pillar dimensions (mm)	x min	460		550		550
	x max	650		750		750
	y max	830		770		670
