Neofeu Load Arrestor - Range from 200kg to 4000kg

Neofeu Load Arrestor - Range from 200kg to 4000kg

Model:

Neofeu NCHL / LA-1009

Neofeu Load Arrestor - Range from 200kg to 4000kg

Small Body - LLHNC Large Body - LHNNC

This page has now expired. Click to be redirected to the new and updated pages for the Neofeu L Series / Small Series Load Arrestors & Neofeu NCHL Series / Big Series Load Arrestors.





Click here to download the Load Arrestor Questionnaire

 Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

What is a load arrestor?

A load arrestor is pretty much a block that has a lot in common with regular safety blocks. The big difference is that Load Arrestors are built and designed to arrest loads instead of people.
In other words Load Arrestors are used as a backup safety system which provides independant protection that will arrest the fall of a load in the event of the primary systems failing, it reduces the risk of equipment damage and protects personnel in and around the danger zone.

Specifications

For product specific and pricing information, please see the tabs above.

The Load Arrestors are available from 200kg up to 4000kg and in length from 2.5 metres upto 30 metres. By using a pulley the load can be double at the expence of the active wire length.
The load is secured to the Load Arrestor by a wire cable. The wire cable is attached to a spring loaded wire drum, keeping the wire under constant light tension. If a fall occurs or the wire speed exceeds 0.5m/sec, a brake mechanism engages and stops the load within approximately 0.5 metres

About Load Arrestors

In any industry, you will find lots of lifting devices that could lose their load in case of a broken chain, motor axel, etc. The same goes with safety doors, nuclear plants, heavy tools hanging in balance blocks etc. Load Arrestors can be used in almost unlimited situations. They give the customer a second safety backup and ensure that personnel or loads are not risked in a fall.

Load Arrestors are very reliable and if, inspected and maintained, could last 20 years +.

Small Models:
LLHNC-200, LLHNC-250/10, LLHNC-250, LLHNC-300, LLHNC-400, LLHNC-500

Large Models:
LHNNC-300, LHNNC-500, LHNNC-1000, LHNNC-1500, LHNNC-2000, LHNNC-3000, LHNNC-4000

Small Load Arrestors

Neofeu Load Arrestor model numbers: NCHLL-200, NCHLL-250/10, NCHLL-250, NCHLL-300, NCHLL-400, NCHLL-500

Load arrestor inertia reel spec 2 - NCHLL

Model Maximum load (kg) Cable Length (m) Cable Ø (mm) Weight (kg) A (mm) B - long cable (mm) C (mm) D (mm) E (mm) F (mm)
NCHLL - 200 200 15 4.5 10 420 15 250 52 25 140
NCHLL - 250 / 10 250 10 4.8 6 290 10 188 52 25 130
NCHLL - 250 250 12 5 11 420 12 250 52 25 140
NCHLL - 300 300 12 5 12 420 12 250 52 25 140
NCHLL - 400 400 12 6.3 14 520 12 290 52 25 140
NCHLL - 500 500 12 6.5 16 520 12 290 52 25 140

Large Load Arrestors

Neofeu Load Arrestor model numbers: NCHL-300, NCHL-500, NCHL-1000, NCHL-1500, NCHL-2000, NCHL-3000, NCHL-4000

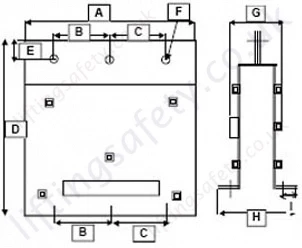

Load arrestor big inertia - NNCHL

Model Maximum load (kg) Cable length (m) Cable Ø (mm) Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)

H (mm)

 I (mm)
NCHL-300 300 5 and 10 5 - 330 120 120 430 50 18 160 230 30
NCHL-300 300 15 and 20 5 - 330 120 120 420 50 20 210 280 30
NCHL-300 300 25 and 30 5 30 450 120 120 550 42 20 270 280 30
NCHL-500 500 5 and 10 7 - 330 120 120 430 50 18 160 230 30
NCHL-500 500 15 and 20 7 - 330 120 120 420 50 20 210 260 30
NCHL-500 500 25 and 30 7 35 450 120 120 550 42 20 270 280 30
NCHL-1000 1000 5 and 10 9 - 370 150 150 480 50 20 260 350 25
NCHL-1000 1000 15 and 20 9 90 450 150 150 560 50 20 320 390 25
NCHL-1500 1500 5 and 20 11 100 450 150 150 560 50 20 320 390 25
NCHL-2000 2000 5 and 20 13 120 620 150 150 625 50 25 370 390 25
NCHL-3000 3000 5 and 15 15 150 620 150 150 625 50 25 370 390 25
NCHL-4000 4000 5 and 10 18 200 620 150 150 625 50 25 370 390 25
Housing Screw fittings Arrest system Type of cable Standard unwinding speed Arrest distance Number of cycles
Corrosion treated steel Zinc plated steel Two steel pawls Galvanized steel 20m/min - can be adjusted in our premises < 60 cm Superior to 50 cycles

Pricing

Unfortunately, this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Contact Us About This Product
Description

This page has now expired. Click to be redirected to the new and updated pages for the Neofeu L Series / Small Series Load Arrestors & Neofeu NCHL Series / Big Series Load Arrestors.





Click here to download the Load Arrestor Questionnaire

 Please complete and return this questionnaire to enable our technical team to offer the most suitable load arrestor for your application.

What is a load arrestor?

A load arrestor is pretty much a block that has a lot in common with regular safety blocks. The big difference is that Load Arrestors are built and designed to arrest loads instead of people.
In other words Load Arrestors are used as a backup safety system which provides independant protection that will arrest the fall of a load in the event of the primary systems failing, it reduces the risk of equipment damage and protects personnel in and around the danger zone.

Specifications

For product specific and pricing information, please see the tabs above.

The Load Arrestors are available from 200kg up to 4000kg and in length from 2.5 metres upto 30 metres. By using a pulley the load can be double at the expence of the active wire length.
The load is secured to the Load Arrestor by a wire cable. The wire cable is attached to a spring loaded wire drum, keeping the wire under constant light tension. If a fall occurs or the wire speed exceeds 0.5m/sec, a brake mechanism engages and stops the load within approximately 0.5 metres

About Load Arrestors

In any industry, you will find lots of lifting devices that could lose their load in case of a broken chain, motor axel, etc. The same goes with safety doors, nuclear plants, heavy tools hanging in balance blocks etc. Load Arrestors can be used in almost unlimited situations. They give the customer a second safety backup and ensure that personnel or loads are not risked in a fall.

Load Arrestors are very reliable and if, inspected and maintained, could last 20 years +.

Small Models:
LLHNC-200, LLHNC-250/10, LLHNC-250, LLHNC-300, LLHNC-400, LLHNC-500

Large Models:
LHNNC-300, LHNNC-500, LHNNC-1000, LHNNC-1500, LHNNC-2000, LHNNC-3000, LHNNC-4000

Small Load Arrestors

Small Load Arrestors

Neofeu Load Arrestor model numbers: NCHLL-200, NCHLL-250/10, NCHLL-250, NCHLL-300, NCHLL-400, NCHLL-500

Load arrestor inertia reel spec 2 - NCHLL

Model Maximum load (kg) Cable Length (m) Cable Ø (mm) Weight (kg) A (mm) B - long cable (mm) C (mm) D (mm) E (mm) F (mm)
NCHLL - 200 200 15 4.5 10 420 15 250 52 25 140
NCHLL - 250 / 10 250 10 4.8 6 290 10 188 52 25 130
NCHLL - 250 250 12 5 11 420 12 250 52 25 140
NCHLL - 300 300 12 5 12 420 12 250 52 25 140
NCHLL - 400 400 12 6.3 14 520 12 290 52 25 140
NCHLL - 500 500 12 6.5 16 520 12 290 52 25 140
Large Load Arrestors

Large Load Arrestors

Neofeu Load Arrestor model numbers: NCHL-300, NCHL-500, NCHL-1000, NCHL-1500, NCHL-2000, NCHL-3000, NCHL-4000

Load arrestor big inertia - NNCHL

Model Maximum load (kg) Cable length (m) Cable Ø (mm) Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm)

H (mm)

 I (mm)
NCHL-300 300 5 and 10 5 - 330 120 120 430 50 18 160 230 30
NCHL-300 300 15 and 20 5 - 330 120 120 420 50 20 210 280 30
NCHL-300 300 25 and 30 5 30 450 120 120 550 42 20 270 280 30
NCHL-500 500 5 and 10 7 - 330 120 120 430 50 18 160 230 30
NCHL-500 500 15 and 20 7 - 330 120 120 420 50 20 210 260 30
NCHL-500 500 25 and 30 7 35 450 120 120 550 42 20 270 280 30
NCHL-1000 1000 5 and 10 9 - 370 150 150 480 50 20 260 350 25
NCHL-1000 1000 15 and 20 9 90 450 150 150 560 50 20 320 390 25
NCHL-1500 1500 5 and 20 11 100 450 150 150 560 50 20 320 390 25
NCHL-2000 2000 5 and 20 13 120 620 150 150 625 50 25 370 390 25
NCHL-3000 3000 5 and 15 15 150 620 150 150 625 50 25 370 390 25
NCHL-4000 4000 5 and 10 18 200 620 150 150 625 50 25 370 390 25
Housing Screw fittings Arrest system Type of cable Standard unwinding speed Arrest distance Number of cycles
Corrosion treated steel Zinc plated steel Two steel pawls Galvanized steel 20m/min - can be adjusted in our premises < 60 cm Superior to 50 cycles
