"Tall" - Heavy Duty Hydraulic Press With Electric Hydraulic Pump - Range from 40,000kg to 100,000kg

"Tall" - Heavy Duty Hydraulic Press With Electric Hydraulic Pump - Range from 40,000kg to 100,000kg

Excellent range from 40 tonnes to 100 tonnes- with added height in the air gap to accomodate larger workpieces

Model:

TEHP-1196

"Tall" - Heavy Duty Hydraulic Press With Electric Hydraulic Pump - Range from 40,000kg to 100,000kg

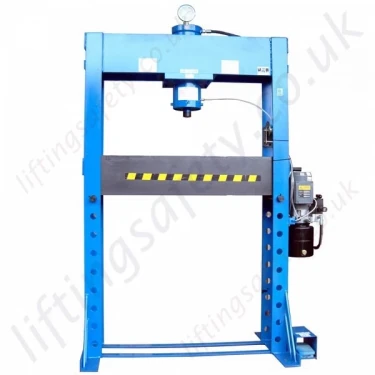

Extra Height Electric Press Electric Pump - Front View Electric Pump - Side View
More from:
Lifting Safety Logo
  • Heavy Duty Models
  • Specially placed gauge for easy reading
  • All work tables are raised and lowered by hand winches and press over 25 tonnes
  • Hydraulics are lower pressures to give longer working life
  • Rams are fitted with stroke resistor
  • To prevent damage, units are fitted with release valves
  • Fully welded frame
  • 12 Months Guarantee
  • Manufactured in England
  • Excellent quality, suitable for heavy industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction).

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

Part Number O/A Frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min. Daylight (mm) E Max. Daylight (mm) F Side clearance between posts (mm) J Front clerance between posts (mm) K
1196-14455 2230 2030 1440 1150 800 270 1170 260 925
1196-14456 2230 2030 1560 1270 800 270 1170 260 1050
1196-14457 2230 2030 1560 1270 800 270 1170 260 1050
1196-14458 2230 2030 1560 1270 800 240 1150 260 1065
1196-14459 2230 2030 1560 1270 800 240 1150 260 1065
1196-14460 2230 2030 1560 1270 800 240 1150 260 1065
1196-14461 2230 2030 1560 1270 800 240 1150 260 1065
12 to 20 tonne hydraulic workshop press
Part N° Type Capacity ( tonnes ) Ram stroke ( mm ) Type of hand pump Approx Weight ( kg ) Guide Price (Ex. VAT) Quantity
1196-T14519 Floor 40 tonne 175 TS 670 Quote Required
1196-T14520 Floor 50 tonne 175 TS 690 Quote Required
1196-T14521 Floor 60 tonne 175 TS 690 Quote Required
1196-T14522 Floor 70 tonne 180 TS 750 Quote Required
1196-T14523 Floor 80 tonne 180 TS 750 Quote Required
1196-T14524 Floor 90 tonne 180 TS 750 Quote Required
1196-T14525 Floor 100 tonne 180 TS 750 Quote Required
NOTE: This item has separate transport costs (£ 70.00)
Description

  • Heavy Duty Models
  • Specially placed gauge for easy reading
  • All work tables are raised and lowered by hand winches and press over 25 tonnes
  • Hydraulics are lower pressures to give longer working life
  • Rams are fitted with stroke resistor
  • To prevent damage, units are fitted with release valves
  • Fully welded frame
  • 12 Months Guarantee
  • Manufactured in England
  • Excellent quality, suitable for heavy industrial use, not to be confused with lesser quality imported presses.

Design features on all press models:

Precise guidance of the piston rod through a high quality self-lube bush gives first class pressing performance. The cylinder is manufactured from top quality hydraulic tube (all welded construction).

The hydraulic pump and cylinder are manufactured from top quality materials, giving good tolerance and long working life.

Part Number O/A Frame height (mm) A Frame height (mm) B O/A Frame width (mm) C Frame width (mm) D O/A Frame depth (mm) L Min. Daylight (mm) E Max. Daylight (mm) F Side clearance between posts (mm) J Front clerance between posts (mm) K
1196-14455 2230 2030 1440 1150 800 270 1170 260 925
1196-14456 2230 2030 1560 1270 800 270 1170 260 1050
1196-14457 2230 2030 1560 1270 800 270 1170 260 1050
1196-14458 2230 2030 1560 1270 800 240 1150 260 1065
1196-14459 2230 2030 1560 1270 800 240 1150 260 1065
1196-14460 2230 2030 1560 1270 800 240 1150 260 1065
1196-14461 2230 2030 1560 1270 800 240 1150 260 1065
12 to 20 tonne hydraulic workshop press
