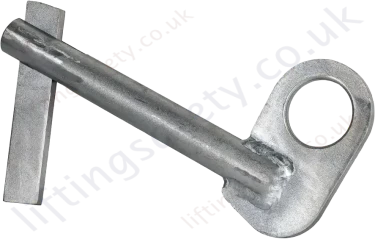

Quick Release Pins for Lifting Concrete Manhole Pipes
The safe way to lift, position, and handle manhole pipes and chambers.
The unique design enables ground workers to easily and efficiently complete the installation without the need for additional tools.
Key Features
- Alloy steel.
- Electro-galvanised finish.
- Minimum breaking load is 4 times the W.L.L.
- Marked with CE, UKCA, W.L.L, manufacturer's ID, mfg date, unique serial number and product ID mark.
- W.L.L. stated is per pin; do not use single pin application.
- Designed specifically to speed up lifting operations where manhole pipes are involved.
- Safe and simple to use.
- No threads needing protection or nuts to safeguard.
- 4 standard sizes are available.
A chain sling is not included, but can be supplied separately.
Specifications
| W.L.L. |
A |
B |
C |
D |
E |
F |
G |
H |
J |
Weight |
| t |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kgs |
| 0.75 |
50 |
120 |
25 |
139 |
365 |
165 |
225 |
10 |
10 |
2.5 |
| 1 |
50 |
150 |
32 |
139 |
400 |
165 |
260 |
10 |
10 |
2.8 |
| 1.5 |
50 |
175 |
35 |
155 |
425 |
165 |
285 |
12 |
10 |
3 |
| 2 |
50 |
215 |
38 |
155 |
465 |
165 |
325 |
15 |
10 |
3.25 |
