Fork Lift Truck Tine Mounted Hydraulic Ram Operated Telescopic Extender Jib Attachment - Range From 210kg to 1000kg
Fork Lift Truck Tine Mounted Hydraulic Ram Operated Telescopic Extender Jib Attachment - Range From 210kg to 1000kg
Hydraulic Telescopic Jib. Arm Length 2000 to 3000mm. Please note the beam cannot be operated under load.
Model:
HTJ-606
More from:
Fork Mounted Jibs are ideal for handling un-palletised long loads such as scaffolding poles & bundles of wood. Models are available to suit trucks up to 10,000Kg capacity. Fork pockets allow easy fitting to the forklift forks. Heel fixing retention gives positive locking onto the fork blades.
About
All our Fork Mounted Jibs are CE Marked and Fully Certified.

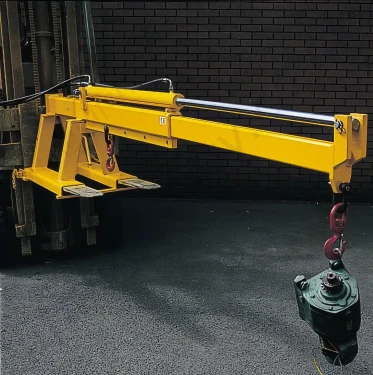

This Deluxe Model of Fork Mounted Extender Jib is fitted with a hydraulic cylinder to enable the telescopic inner beam to be positioned with ease without the need for the forklift operator to leave his seat. The inner beam can also be positioned infinitely between 2000mm - 3000mm. Lifting points under the fix section of the beam run from 1000mm to 1750mm at 250mm increments. This Jib is provided with two hooks and shackles thus allowing long loads to be slung at greater centres presenting superior stability of the load. This jib requires 1 double acting hydraulic service on the fork lift truck. Crane Jib also supplied without hoses. (Please note the beam cannot be operated under load)
Features
Hydraulically operated.
Can be extended ready for lift without driver leaving the seat.
Fork mounted for quick fitting.
Supplied with two hooks.
Other closed and extended lengths are available on request.
Jib Load Chart
Model Ref
Truck Capacity (Kg) @ 500mm (not jib capacity)
Load Centre Capacity @ 2000 mm
Load Centre Capacity @ 2250 mm
Load Centre Capacity @ 2500 mm
Load Centre Capacity @ 2750 mm
Load Centre Capacity @ 3000 mm
606-12287
2000
500
360
330
260
210
606-12288
2500
750
560
440
320
230
606-12289
3000
840
670
490
360
270
606-12290
3500
900
730
580
450
370
606-12291
4000
1000
820
670
540
460
