Metric Thread Lifting Eye Bolts (Non-Swivel)
- High Tensile Collar Eyebolts to BS4278, with links, long shank, to DIN 582 and to BS4278 are available within this category.
- Various SWL (safe working load) capacities are available from 95kg to 30 tonnes.
- All these eyebolts are drop forged from high tensile steel.
Metric Thread Collared Eye bolts to BS4278 - Range from 100kg to 30,000kg
Product Images
Material: As specified by BS 4278 Hardened and Tempered S.W.L. Shown at 0° (vertical) angle of lift.Safety Note: Eyebolts under M12 are not recommended for lifting.
- Model: CEB-2652
Metric Thread DIN580 Collared Eye bolt - Range from 95kg to 16,000kg
Product Images
DIN 580 metric thread collared eye bolts are available in capacities from 95kg up to 16000kg with thread sizes from M8 to M64
Metric thread DIN Collared eye bolts are available in sizes - 0.09t - 11.6t.
- Model: CEB-43
Metric Thread Dynamo Eye Bolts to BS4278 - Range from 100kg to 3200kg
Product Images
Dynamo eye bolts to BS4278 table. 3 are available with capacities from 100kg to 3200kg with thread sizes from M6 up to M30
Metric thread dynamo eye bolts are available in the following sizes - 0.1t, 0.15t, 0.25t, 0.32t, 0.63t, 1t, 1.25t, 2t, 2.5t, 3.2t,
- Model: DEB-44
Metric Thread Oval Link Eye Bolts as BS4278 or from BS4278 Forgings - Range from 100kg to 6300kg
Product Images
Collared eye bolts with oval links to BS 4278 Table 2 are available from 1000kg to 6300kg with thread sizes: M20, M24, M30, M36 and M48.
Metric Thread Oval Link Eye Bolts are available in the following sizes - 1t, 1.6t, 2.5t, 4t, 6.3t.
- Model: EBWOL-45
Metric Thread Long Collared Eye bolts to BS529 - Range from 250kg to 4000kg
Product Images
Long thread collared eyebolts to BS529 are available with capacities from 250kg to 4000kg with thread sizes from M10 to M30, thread sizes are as follows.
Metric tread long collared eye bolts are available in the following sizes - 0.25t, 0.4t, 0.5t,...
- Model: LCEB-42
Metric Thread 316 Stainless Steel Eye Bolts - Range from 150kg to 6300kg
Product Images
Eyebolts under 12mm are not recommended for lifting. Product image for display purposes only. Material: As specified by BS 4278 Hardened and Tempered S.W.L. Shown at 0° (vertical) angle of lift. Other diameters, thread forms and pitches available on application. High tensile 316 stainless steel...
- Model: SSE-2650
Metric Thread Collared Eyebolts with Non-reevable Egg Links - Range from 250kg to 6300kg
Product Images
As standard our non-reevable egg link eyebolts are available only with metric thread, however, upon special request, they are available with a variety of other thread forms and pitches, such as UNC and BSW etc... Capacities and thread sizes as standard are: 0.25t (M10), 0.4t (M12), 0.8t (M16),...
- Model: MTCE-3971
Metric Thread Collared Eyebolts with Reevable Egg Links - Range from 250kg to 4000kg
Product Images
As standard our reevable egg link eyebolts are available only with metric thread, however, upon special request, they are available with a variety of other thread forms and pitches, such as UNC and BSW etc... Capacities and thread sizes as standard are: 0.25t (M10), 0.4t (M12), 0.8t (M16), 1.6t...
- Model: MTCE-3972

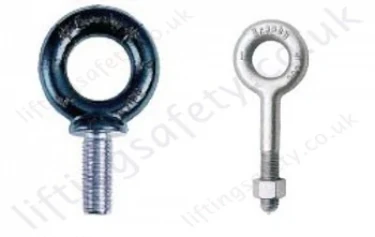

Crosby S279 / M279 Shoulder Eye Machinery Eye Bolts - Range from 200kg to 8500kg
Product Images
We offer the range of Crosby S279 UNC thread and metric thread Shoulder Type Machinery Eyebolts that are made from forged Steel (Quenched and Tempered) Working Load Limits shown are for in-line pull (Not pulled at an angle) and range from 200kg to 8500kg (650lbs to 24000lbs). These eye bolts are...
- Model: Crosby S-279 M-279
Crosby S-276 Shoulder Nut Eye Bolts - Range from 290kg - 10,800kg
Product Images
Crosby G277 Shoulder Nut Eye Bolts are made from forged Steel and are quenched and tempered, they are also fatigue rated at 1.5 times the Working Load Limit (rated at 20,000 cycles) and the WLL shown her is for in line pull (not at an angle). All G277's are galvanized after threading (UNC) and are supplied with...
- Model: Crosby G-277
Crosby G291 Regular Nut Eye Bolts - Range from 290kg to 9520kg
Product Images
Our Crosby G291 Regular Nut long shank Eye Bolts are supplied forged Steel - Quenched and Tempered with fatigue rated at 1.5 times the Working Load Limit (WLL) at 20,000 cycle; All These G291 eye Bolts are Hot Dip galvanized after threading (UNC). They are supplied with standard Hot Dip galvanized hex nuts and are...
- Model: Crosby G-291
Crosby G257 Shoulder Nut Ring Bolts - 540kg or 1000kg
Product Images
The Crosby G-257 Shoulder Nut Ring Bolts are forged eyebolt that is manufactured from forged steel and are quenched and tempered. They are Hot Dip galvanized (Bolt, Nut and ring) and UNC threaded after galvanising.
The Diameter of ring stock is same as shank diameter and the ring eyebolts are supplied in two safe...
- Model: Crosby G-257
Crosby S405 Lifting Eyes - Range from 390kg to 8160kg
Product Images
The range of Crosby S405 Eye Bolts are supplied Un-threaded; they are made from forged Steel that is quenched and Tempered. There are 9 options to choose from with different shaft diameters and length's that when threaded can achieve SWL's from 390kg to 8160kg,
Remember: these are not supplied...
- Model: Crosby S-405
Crosby G275 Screw Eye Bolts
Product Images
The Crosby G275 Screw threaded Eyebolts are made from forged Steel and are quenched and Tempered / hot dip galvanised.
- Model: Crosby G-275
Crosby S293 Rivet Eye Bolts
Product Images
The range of Crosby S293 Rivet Eye Bolts are made from forged steel that is quenched and tempered. There are 9 options to choose from with different shaft diameters and lengths.
Remember: these are not threaded!
- Model: Crosby S-293
RUD "RS" Grade 8 Lifting Eye Bolts (Non Swivel) - Range from 100kg upto 8000kg
Product Images
Forged, tempered and 100% crack detected. Fool-proof compared with common DIN eye bolts by: Shape: Octagonal means quality class 8 Identification: Distinct indication of WLL for the most unfavourable case (lateral load - not allowed with DIN 580).
- Model: RUD RS
