RSJ (Profile) Fall Arrest Anchorages to EN795
Liftingsafety have Various Systems available for Connecting to a Steel Girder for Fall Arrest, with up to 15% Discount Available!
This category is populated with EN795 anchorage devices specifically designed for use on steel beams, I beams / runway beams. The anchorages either connect to the beam like a clamp to create a fixed fall arrest anchorage point or they allow movement along the beam like a beam trolley, enabling the person working at height to have fall arrest protection along the length of the beam. Please feel free to contact us at any time for advice or for a quotation.

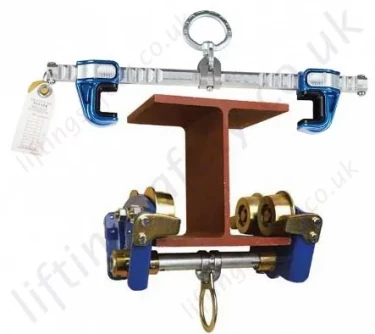

SALA "Beam Anchor" Fixed or Sliding. Used on RSJ Beams.
Product Images
This is a portable and lightweight anchorage point which is easy to install and can be adjusted in seconds, also it can be used either horizontally or vertically. Available to fit beam flanges up to 91.44cm width and 6.5cm thickness.
- Model: FBA-2786
Sala "Glider 2" Sliding Beam Anchor for Fall Arrest Applications - Width 87.5mm - 350mm
Product Images
Glider 2 Beam Anchor's integrated ratcheting adjustment system provides quick and easy installation and removal, its unique guarded mechanism protects the anchor from accidental disengagement. Replaceable synthetic wear pads eliminate metal to metal contact reducing friction which provide...
- Model: KM22104700
SALA "Trolley" Adjustable Fall Arrest Beam Trolley - Width 76mm - 203mm
Product Images
The Trolley can be adjusted to the exact size of the beam flange, by a series of holes in the load bar, and a dial system on the side plates. The side plates of the Trolley may be demounted, for a mid-span installation, or for removal for inspection. Each of the trolleys 4 steel wheels contain non...
- Model: Sala Trolley
Ridgegear "RGK7" Steel Spring Hook Fall Arrest Anchorage Karabiner - 105mm Opening
Product Images
Not strictly a karabiner, the RGK7 is an attachment device with a wide gate opening, ideal for use in industrial areas. The use of this karabiner often negates the use of a sling as it can connect directly to steelwork and is most often fitted to lanyards for working on steel structures. It has...
- Model: RGK7
Ridgegear "RGK8" Steel Spring Fall Arrest Anchor Hook Karabiner - Opening 140mm
Product Images
Not strictly a karabiner, the RGK8 is an attachment device with a wide gate opening, ideal for use in industrial areas. The use of this karabiner often negates the use of a sling as it can connect directly to steel work. Most often fitted to lanyards for working on steel structures. With a gate...
- Model: RGK8
Ridgegear "RGBT1" Fall Arrest or Man Riding Beam Trolley. Quick Adjustment Width - 75mm - 200m
Product Images
The easy installation to any beam makes this a suitable fixing for any Fall Arrest System, it can be adjusted quickly to the beam width by turning the main spindle. Safety is ensured by the special locking lever.
- Model: RGBT1

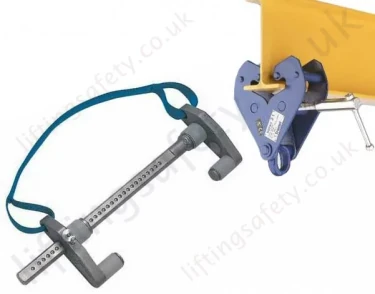

Tractel Adjustable Fall Arrest Beam Clamp Anchorage Point - Width 75mm - 235mm
Product Images
This hitching clamp is equipped with an anchoring ring, with a compact and strong construction; this can also be quickly and easily adjusted with its removable handle. It's adjustable from 75mm to 235mm.
- Model: BCA-2200
Tractel "Rollbeam" Fall Arrest Push Travel Trolley Anchorage Device. Quick Fit & Adjustable Width - 58mm - 220mm
Product Images
The rollbeam mobile anchorage device is used to create a permanent or semi-permanent anchorage fitted on an H-shaped bar. The trolley moves along the lower flange of the bar, fitted with a ring for attaching the block for retractable lifeline or a standard lifeline....
- Model: RollBeam
Tractel "Dover Clamp" Fall Arrest Beam Anchorage Point. Fixes to the Flange of a Steel Column (Medium & Large) - Width 120mm - 640mm
Product Images
The Tractel Rollclamp (dover clamp) beam anchors are mobile anchorage devices which meet the requirements of construction workers who require the capability to work safely while retaining freedom of movement. The dover clamp has 4 rollers which enable...
- Model: DCBA-2203

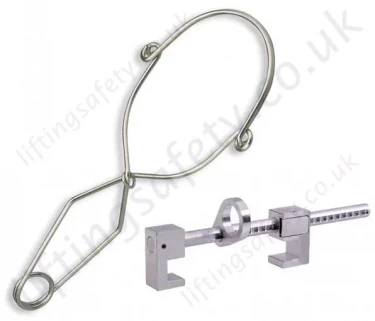

Miller "MJ52 MJ54" Wire Girder Grips Fall Arrest Anchorage Point - Opening Sizes 75mm, 100mm and 140mm
Product Images
The wire girder grips fall arrest anchorage point is easy to use and open and very lightweight with a high breaking strength. Available in 3 opening sizes - 75mm , 100mm and 140mm.
- Model: Miller MJ52-54
Miller "Beam Glide" Adjustable Fall Arrest Anchorage Point Designed to slide Along an RSJ Beam - Width 75mm to 360mm
Product Images
Miller Beam Glide Fall Arrest Anchorage Point is a fully adjustable beam anchorage device which is suitable for beam widths of 75mm to 360mm.
- Model: BGA-2190
LiftingSafety "Beam Clamp" Designed for use with Fall Arrest Equipment
Product Images
A positive clamping force is generated with the screw cam at no load and even when vibrations occur during operation, which makes this method of preventing accidental falling a very safe choice. The clamping force increases in proportion to the weight of the load. The main body is made by die-forging of...
- Model: SBC-3124
