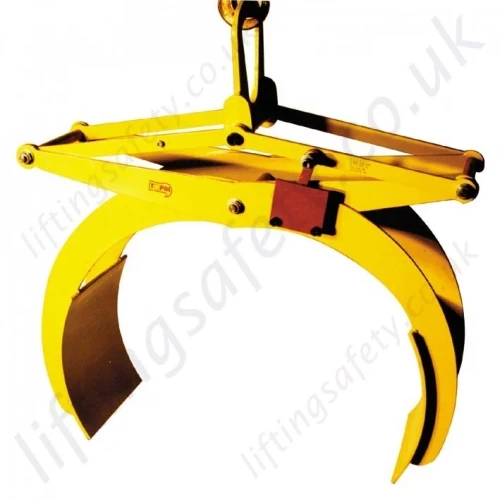

  7. Tractel TOPAL TI Clamp for Horizontal Lifting and/or Laying in Trenches of Pipes - Range 500kg to 1000kg
Tractel TOPAL TI Clamp for Horizontal Lifting and/or Laying in Trenches of Pipes - Range 500kg to 1000kg

Tractel TOPAL TI Clamp for Horizontal Lifting and/or Laying in Trenches of Pipes - Range 500kg to 1000kg

Horizontal Clamp with opening of upto 900mm.

Model:

TOPAL TI / TTT-3319

Tractel TOPAL TI Clamp for Horizontal Lifting and/or Laying in Trenches of Pipes - Range 500kg to 1000kg

Tractel TOPAL TI Clamp Semi Automatic Clamp Automatic Clamp
More from:
Tractel Alimak

Accessory to transport horizontal pipes and lay them into trenches. Also designed to transport bars and tubes of any material.

S = semi-automatic laying down - Semi-automatic model: manual grab action and automatic locking of the grab in the open position.

A = automatic clamping + laying down - Automatic model: the grab and laying down operation is performed without any manual operation from
the operator on the grab.

Use of TI Clamps

dims2

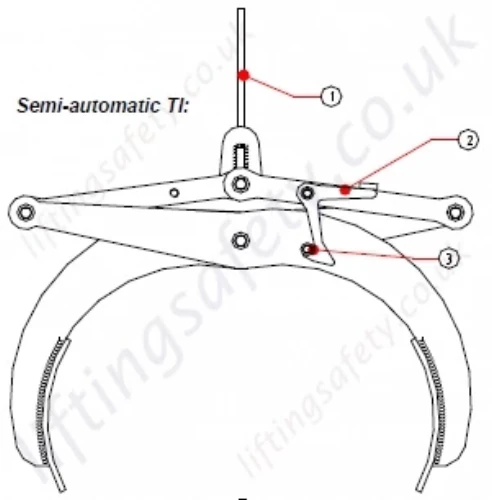

Semi-automatic TI:

  • Positioning: suspend the grab in its open position by its ring (1) (locking pawl (2) activated).
  • For lifting: present the grab vertically to the product to be lifted.
  • Lower the grab until it is applied against the product to be lifted.
  • Swivel the locking pawl (2) manually whilst starting off the lifting, hold it in the up position to prevent it from locking against the fastening screw (3).
  • Release the locking pawl (2) making sure its claw is well above the fastening screw (3) and perform lifting.
  • When laying the product down, bring down the grab until the locking pawl automatically locks (2) onto the fastening screw (3).
  • The grab is locked in the open position. It can be lifted up again ready to be used again.
dims

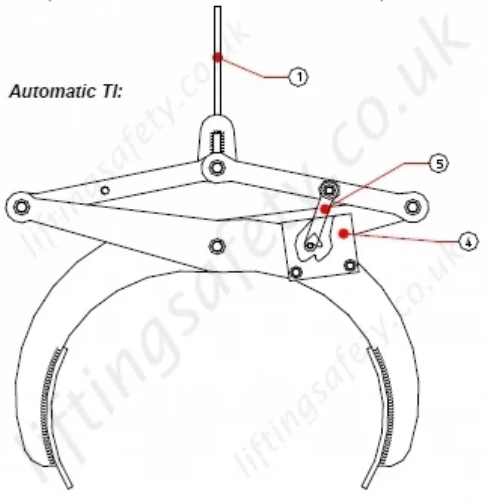

Automatic TI:

  • Positioning: suspend the grab in the open position by its ring (1) (control lever (4) activated).
  • For lifting: position the grab vertically with respect to the product to be lifted.
  • Lower the grab until it is applied against the product to be lifted.
  • Next lift the grab back up: its automatic system unlocks. Lifting can be performed.
  • When laying the product down, lower the grab until the locking system is automatically activated (4+5).
  • The grab is then locked in the open position: it can be lifted up ready to be used again.

Specifications

Part No: Capacity (kg) Opening (mm)
TIS05 500kg 230-400mm
TIA05 500kg 230-400mm
TIS05 500kg 380-650mm
TIA05 500kg 380-650mm
TIS1 1000kg 450-900mm
TIA1 1000kg 450-900mm
Part N° Type Capacity (kg) Opening (mm) Weight (kg) Guide Price (Ex. VAT) Quantity
3319-T20868
50938 		TIS05 - Semi 500 230-400 35 £1,673.00
3319-T20869
50948 		TIA05 - Auto 500 230-400 37 £1,720.00
3319-T20870
50958 		TIS05 - Semi 500 380-650 39 £2,617.00
3319-T20871
50968 		TIA05 - Auto 500 380-650 39 £2,825.00
3319-T20872
50978 		TIS1 - Semi 1000 450-900 64 £3,501.00
3319-T20873
50988 		TIA1 - Auto 1000 450-900 64 £3,353.00
Description

Accessory to transport horizontal pipes and lay them into trenches. Also designed to transport bars and tubes of any material.

S = semi-automatic laying down - Semi-automatic model: manual grab action and automatic locking of the grab in the open position.

A = automatic clamping + laying down - Automatic model: the grab and laying down operation is performed without any manual operation from
the operator on the grab.

Use of TI Clamps

dims2

Semi-automatic TI:

  • Positioning: suspend the grab in its open position by its ring (1) (locking pawl (2) activated).
  • For lifting: present the grab vertically to the product to be lifted.
  • Lower the grab until it is applied against the product to be lifted.
  • Swivel the locking pawl (2) manually whilst starting off the lifting, hold it in the up position to prevent it from locking against the fastening screw (3).
  • Release the locking pawl (2) making sure its claw is well above the fastening screw (3) and perform lifting.
  • When laying the product down, bring down the grab until the locking pawl automatically locks (2) onto the fastening screw (3).
  • The grab is locked in the open position. It can be lifted up again ready to be used again.
dims

Automatic TI:

  • Positioning: suspend the grab in the open position by its ring (1) (control lever (4) activated).
  • For lifting: position the grab vertically with respect to the product to be lifted.
  • Lower the grab until it is applied against the product to be lifted.
  • Next lift the grab back up: its automatic system unlocks. Lifting can be performed.
  • When laying the product down, lower the grab until the locking system is automatically activated (4+5).
  • The grab is then locked in the open position: it can be lifted up ready to be used again.

Specifications

Part No: Capacity (kg) Opening (mm)
TIS05 500kg 230-400mm
TIA05 500kg 230-400mm
TIS05 500kg 380-650mm
TIA05 500kg 380-650mm
TIS1 1000kg 450-900mm
TIA1 1000kg 450-900mm
Downloads

TI 0601.pdf

Operating and Safety Instructions.

(approx. 0.5Mb) TI T 6007 GB rev 2.pdf

Technical Datasheet

(approx. 0.4Mb)
Pricing (Buy/Quote)
