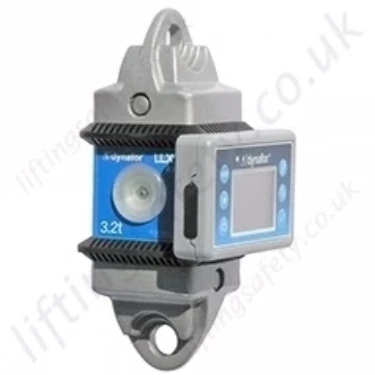

Tractel Dynafor LLX2 Range from 500kg to 10,000kg

Electronic dynamometer with removable display unit.

Model:

Tractel Dynafor LLX2 / TDL-3344


Description

+

The DYNAFOR™ LLX2 series are the industrial standard for load indicators.

Extreme accuracy with full traceability: 0.1% of the maximum measuring range. In addition to the stand-alone application, the LLX2 is suitable for very complex projects. Combined with monitoring software, it can be used for simultaneously reading, managing and storing measuring data from up to 8 load cells. The remote display is designed for simultaneously reading 4 load cells.

Delivery includes the Dynafor™ LLX2, remote display, charging adapter, user manual, calibration report and declaration of conformity. Supplied in a plastic case.

Operating Principle

Strain gauge measurement of the extension, within its limits of elasticity, of a metal body subjected to traction stress.

The sensor generates an electrical signal that is proportional to the load. This signal is processed by a micro-processor analyser and then  transmitted via radio waves to the display unit, which immediately displays the load applied to the sensor to which it is linked. The display unit is compatible with all of the LLX 2 model sensors, irrespective of their capacity.

Technical Specifications

  • 25mm LCD display LCD with backlight.
  • Safety factor: at least 4 times WLL.
  • Units: kg, t/daN, kN/lbs, ton (US).
  • ZigBee 2.4 GHz, default range 80m.
  • In conformity with: CE2006/42/EC, CEM2004/108/CE, EN300/440-2 V1.1.1
  • Protection class: IP66.
  • Remote display: IP54.
  • Operating temperature: -20 to +40 °C.
  • Test load: 2 times WLL.

Functional

  • Taring.
  • Overload indication at 10% overload.
  • Max. measured value peak mode.
  • Managing safety thresholds.
  • Storing measurements.
  • Dynamic effect filter settings.
  • Automatic shutdown.
  • Battery life (3 AA): 1,000 hours.
  • Automatic zeroing.

Optional Accessories

  • PC connection Kit.
  • Chain accessories with rapid connection.
  • Connecting shackles.
  • I.P. 67 Protection.
Dimensions

+

Dimensions

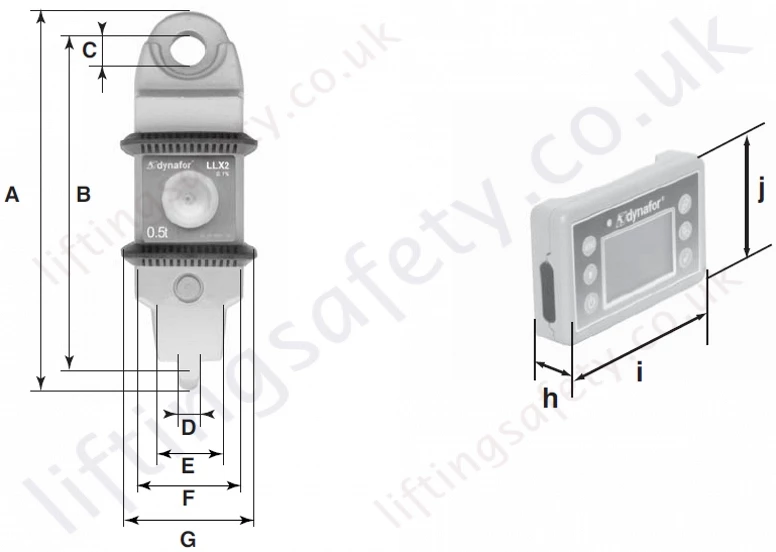

Dynafor LLX2 Dimensions

Part No:
 LLX2
0.5 t		 LLX2
1 t		 LLX2
2 t		 LLX2
3.2 t		 LLX2
5 t		 LLX2
6.3 t		 LLX2
10 t		 Display Unit
Maximum capacity t 0.5 1 2 3.2 5 6.3 10 All
Test load t 0.75 1.5 3 4.8 7.5 9.6 15 -
Safety coefficient   Minimum 4 -
Precision   0.1 % according to ISO 376 at 21°C (I.P. 67 = 0.2 %) -
daN 0.5 1 2 3.2 5 6.3 10 -
Increment daN 0.1 0.2 0.5 0.5 1 1 2 <-
Max. Display daN 550 1100 2200 3520 5500 6930 11000 <-
Number height mm - - - - - - - 25
Autonomy   From 300 to 1000 h depending of functions 48 h
Radio scope m 80 (in open field) (I.P. 67 = 60)
RF Technology   2.4 Ghz
Weight kg 2.300 3.350 6.454 0.180
IP Protection   I.P. 66 NEMA 4 (option : I.P. 67) I.P. 54
Usage   From - 20° to 40°C
Sensitivity to T°   0.05% per 10°C -
Head Material   Steel -
Sensor Material   Aluminium Steel -
Dimensions mm A 248 248 248 248 290 290 341 -
B 224 224 224 224 254 254 296 -
C Ø 20 Ø 20 Ø 20 Ø 20 Ø 28 Ø 28 Ø 40 -
D 10 10 10 10 16 16 20 -
E 24 24 24 24 35 35 54 -
F 80 80 80 80 80 80 80 -
G 100 100 100 100 100 100 100 -
h - - - - - - - 26.7
i - - - - - - - 131
j - - - - - - - 82

Downloads

+
dynafor-llx2-user.pdf

User Guide

(approx. 5.0Mb)
dynafor-llx2.pdf

Technical Information

(approx. 0.2Mb)
Pricing

+
Type
Part N° Model / Part No: Capacity (t) Smallest increment (kg) Guide Price Quantity
3344-T6758
108109 		LLX2 0.5 0,5 0,1 Quote Required
3344-T6759
108119 		LLX2 1.0 1,0 0,2 Quote Required
3344-T6760
108129 		LLX2 2.0 2,0 0,5 Quote Required
3344-T6761
108139 		LLX2 3.2 3,2 0,5 Quote Required
3344-T6762
108149 		LLX2 5.0 5,0 1,0 Quote Required
3344-T6763
108159 		LLX2 6.3 6,3 1,0 Quote Required
3344-T6764
108169 		LLX2 10 10 2,0 Quote Required
Add to Quote Basket   ?
