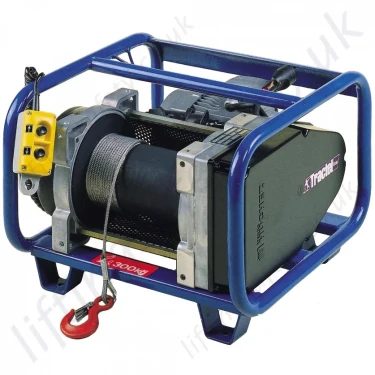

Tractel CAROL TC TE / TC-3284


Description

+

This Page has now expired. Please Contact us with your requirements for a superseding model or suitable alternative.

Weatherproof

Made of pressed aluminium and polycarbonate, moulded and coloured.

Gearing

The helical gear teeth significantly reduce the noise level. Gears greased and sealed for life.

Remote control

Low voltage (24 V) push-button control, with emergency stop and connection by 3 m flexible cable.

TE Series - Standard.

On 3 support sides, there are 4 anchor points forming a rectangle : 255 x 197 mm.

TC Series - with frame (for site operation).

The brackets on the lower part of the frameallow scaffolding poles to be fitted, so that a variety of possible methods of anchoring and counterbalancing may be envisaged.

Many lifting and pulling applications :

  • Materials hoist for a variety of work.
  • Moving temporary covers or roofs on swimming pools and other structures..
  • Trolleys travelling on inclines.
  • Scenery in theatres, opera houses and other entertainment centres..
  • Hangar doors, furnace doors.
  • To-and-fro movement of loads on double ropes.

Tractel Carol TC / TE

Drum with wide flanges:

Take up to 60 m of 5mm dia wire rope.

Drum protection :

The wire rope is visible through the perforated shield.

Tractel Carol TC / TE

Bolt holes :

For the multiple fixing points of the winch, there are purpose-made bolt holes to make the bolts captive without requiring a spanner.

Wire rope anchor point :

Screwable bracket accessible from the outside, and which gives even
reeling of the wire rope.

Tractel Carol TC / TE

Disc brake, operates without power:

This electromagnetic brake holds the load as soon as the button on the remote control is released. The same happens should there be a power failure. For pulling applications only, the winch can be supplied without brake, so that manual unreeling of the wire rope is possible (except for models 500kg and 800 kg).

Dimensions

Model Capacity Motor Lifting speed m/min Max. length wire rope (m) Ø Cable (mm) Weight (kg) Motor kW
Carol TE 250kg Single phase 230v 50Hz 25 60 5mm   1.1
Carol TE 300kg Single phase 230v 50Hz 20 60 5mm   1.1
Carol TE 250kg 3 phase 400v 50Hz 25 60 5mm   1.1
Carol TE 300kg 3 phase 400v 50Hz 20 60 5mm   1.1
Carol TC 250kg Single phase 230v 50Hz 25 60 5mm   1.1
Carol TC 300kg Single phase 230v 50Hz 20 60 5mm   1.1
Carol TC 250kg 3 phase 400v 50Hz 25 60 5mm   1.1
Carol TC 300kg 3 phase 400v 50Hz 20 60 5mm   1.1
Carol TE 500kg Single phase 230v 50Hz 12 85 6.8mm 85 1.5
Carol TE 500kg 3 phase 400v 50Hz 5 85 6.8mm 85 0.55
Carol TE 500kg 3 phase 400v 50Hz 9 85 6.8mm 85 1.1
Carol TE 500kg 3 phase 400v 50Hz 12 85 6.8mm 85 1.5
Carol TE 500kg 3 phase 400v 50Hz 18 85 6.8mm 85 2.2
Carol TE 500kg 3 phase 400v 50Hz 23 85 6.8mm 85 3
Carol TE 800kg 3 phase 400v 50Hz 5 60 8mm 90 1.1
Carol TE 800kg 3 phase 400v 50Hz 10 60 8mm 90 2.2
Carol TE 800kg 3 phase 400v 50Hz 13 60 8mm 90 2.2
Carol TE 800kg 3 phase 400v 50Hz 17 60 8mm 90 3

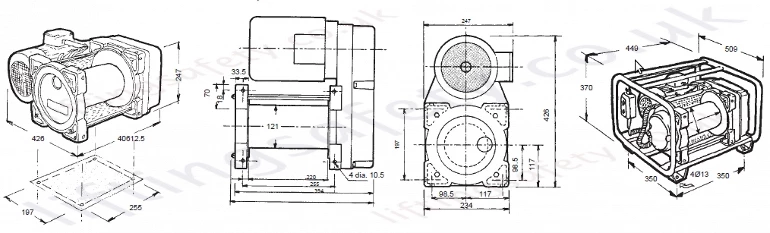

Carol TC TE Dimensions

Single phase motor 220 Vac, 50 Hz, lifting type.
P = 0.75 kW (TE/TC series: 200kg and 300 kg capacities)
P = 1.5 kW (TE/TC series: 500kg and 800 kg capacities)
Speed 1500 rpm. Starting by condenser.
Class F, IP 55 protection.
3 phase motor: 220/380 Vac, 50 Hz, lifting type.
Class F, IP 55 protection.
Sealed reduction gears in oil bath, with helical gears.
Electromagnetic brake, 24 Vdc.
Welded steel drum.
Very high quality electrical wiring, protected under weatherproof cover.
Low voltage (24 Volts) remote control with emergency stop.
Upper and lower limit switches (TE/TC series: 200 kg and 300 kg capacities)
Standard power supply connection.
Optional equipment on request.
