- Tiger Lifting "TLH11" Lightweight Pressed Steel Lever Hoist - Range from 250kg to 20,000kg
Tiger Lifting "TLH11" Lightweight Pressed Steel Lever Hoist - Range from 250kg to 20,000kg
Top quality heavy duty lightweight and portable lever hoist, suitable for use in temperatures from -40°C to +50°C.
TLH11 / TLPS-4078
Manufacturing Standard: Exceeds BS EN 13157:2004
Unfortunately the Tiger TLH lever hoist is no longer available. Please see the Tiger ProLH Lever Hoist or Tiger SS19 Lever Hoist as a possible alternative.
Lightweight, compact and rugged construction with the handle, gear case and brake cover made entirely of pressed steel, producing strong resistance to impact damage. Using only the highest quality materials precisely machined throughout ensures the TLH11 is the ideal hoist for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004
Features
- Range from 250kg – 20,000kg
- 0.25t & 0.5t supplied with carry bag.
- Rugged steel body construction
- Lightweight and portable
- 360 degree handle rotation
- Short stroke and low lever pulling effort
- Easy single-hand “freewheeling” operation
- Drop forged & heat treated alloy hooks
- High quality alloy calibrated load chain
- Safe reliable twin pawl mechanical brake
- Guaranteed light load protection
- Heat treated alloy steel triple spur gears and pinion shaft
- Heavy duty chain end stop
- Operating temperature of -40°C to +50°C
- Proof tested to 1.5 times rated capacity
- 1.5m height of lift as standard but can be chained to exact requirements
- Individual spares readily available
- Can be supplied with Various Top and Bottom fitting to suit your needs, see the 'Adaptor Fittings' tab above for further information.
Safety Brake
The highly efficient twin pawl brake, works instantly when the operation is stopped and securely holds the load. Designed and 100% tested to hold a 2% load of the rated capacity. The bonded friction discs are free of asbestos and achieve highly efficient braking.
Load Chains
Tiger only use the highest quality alloy, calibrated load chains in Grade 80 (T) or 100 (V).
Hooks
Drop forged and heat treated alloy hooks are furnished with heavy duty latch kits that fully engage into the nose of the hook offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance. Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.
Grease
High performance premium quality grease allows the TLH11 hoists to be certified for use within a temperature range of -50°C to +50°C far exceeding the requirements of current standards.
Chain end stops
User friendly heavy duty end stops make it easy for the operator to position the chain whilst “freewheeling” but most importantly gives complete compliance to all known standards.
Mechanical Efficiency
All major components are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.
Finish
The TLH11 is finished in a high quality powder coat paint offering excellent corrosion protection.
Proof Load Tests
Every lever hoist is fully tested to 1.5 times its rated capacity.
Additional Features
Heavy duty steel latch engages fully with the hook tip creating a strong secure closure
New ‘End Stop' design guarantees compliance with European standards with hand grip to allow easy chain adjustment
Load chain anchor bolts are fitted via a coined out area offering protection to the nut and bolt, whilst making removal easier for the service engineer
Nuts and bolts are used to secure hook yokes allowing disassembly of the yoke to allow full inspection of load hooks
Technical Specifications
TLH11 250kg |
TLH11 500kg |
TLH11 750kg To 3000kg |
|
||
TLH11 6000kg |
TLH11 10000kg |
Specifications

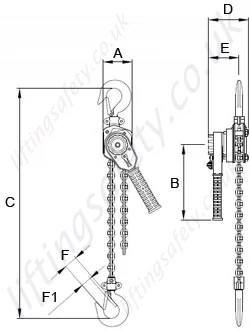

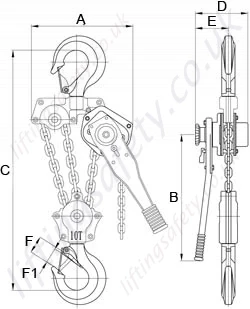

Product Code | Capacity (tonne) | Effort (kg) | Dimensions (mm) | Load Chain | Standard HOL (m) | Mass (kg) @ std HOL | |||||||
A | B | C | D | E | F | F1 | Diameter (mm) | No. of falls | |||||
LH-0025 | 0.25 | 30 | 60 | 156 | 245 | 82 | 63 | 27 | 22 | .4.0 | 1 | 1 | 2.2 |
LH-0050 | 0.5 | 34 | 75 | 276 | 270 | 100 | 75 | 30 | 26 | .5.0 | 1 | 1 | 3.9 |
LH-0075 | 0.75 | 22 | 128 | 240 | 275 | 158 | 99 | 30 | 26 | .6.3 | 1 | 1.5 | 7.2 |
LH-0150 | 1.5 | 26 | 154 | 360 | 320 | 172 | 104 | 38 | 34 | .7.1 | 1 | 1.5 | 10.1 |
LH-0300 | 3 | 38 | 182 | 360 | 400 | 195 | 108 | 43 | 38 | .10.0 | 1 | 1.5 | 18 |
LH-0600 | 6 | 40 | 242 | 360 | 570 | 195 | 108 | 57 | 52 | .10.0 | 2 | 1.5 | 28 |
LH-1000 | 10 | 47 | 370 | 360 | 630 | 195 | 108 | 71 | 56 | .10.0 | 3 | 1.5 | 42.4 |
Exploded Diagram
Spare Parts List
Part Code | Part Name | Part Code | Part Name |
N-1 | Nut for Gear over | N-26 | Load Chain Guide |
N-2 | Gear Cover | N-27 | Wheel Side Plate Assembly |
N-3 | Pinion Shaft | N-29, N-13, N-28 | Ratchet Gear and Friction Disks |
N-4 | Pinion Shaft Washer | N-30 | Nut for Handle Cover |
N-5 | Gear-Side Plate | N-31 | Handle Assembly |
N-6 | Load Sheave | N-32 | Change Lever |
N-8 | Safety Latch | N-33 | Retaining Spring Base |
N-9 | Top Hook Assembly | N-34 | Grip Ring |
N-10 | Disc Hub | N-35 | Retaining Spring |
N-11 | Pawl Spring | N-36 | Fixing Plate |
N-14 | Spring Disc | N-37 | Screw for Fixing Plate |
N-15 | Snap Ring | N-38 | Grip Ring Cover |
N-16 | Brake Cover with Handle Cover | N-39 | Pinion Nut |
N-17 | Change Gear | N-40 | Bottom Hook Assembly |
N-18 | Spring Washer | N-41 | Bottom Hook Pin 0.75t - 3.0t |
N-19 | Screw for Handle | N-43 | Spring Stand |
N-20 | Label | N-44 | Pushing Up Spring |
N-21 | Pinion Gear | N-45 | Pushing Up Pin |
N-22 | Load Gear | N-46 | Change Pin |
N-23 | End | N-52 | Bottom Hook Pin 6.0t |
N-25 | Chain Stripper |
To Purchase Spare Parts for this product, Please Ring our sales team on 01977684600, or click here for our web enquiry form, quoting the necessary part numbers from the above table.
Tiger Adaptor Hoists are available with a drop-forged clevis adaptor allowing for the interchangeable range of EN1677 Tiger grade 100 clevis fittings.

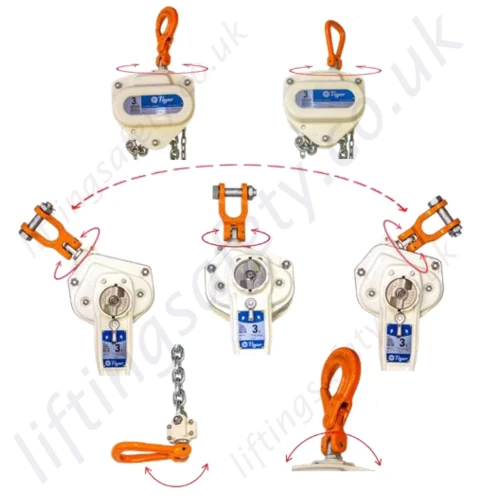

This Tiger manufactured knuckle configuration gives 360° Rotation and 180° Pivot for maximum flexibility, whilst maintaining our 4:1 factor of safety at all angles.
- Available for Tiger TCB14 / SS12 chain blocks and PROLH / SS11 / TLH lever hoists.
- All fittings meet the standards of EN1677 grade 100 at 400°C tempering.
- Drop forged adaptor for maximum strength certified 4:1 FOS at all angles.
- Self-locking (safety) hook, clevis shackle, reevable egg (master) link or sling hook fitting available.
- Overload protection available.
- For lifting at angles (cross hauling/fleeting/drifting) with no deration.
- Chain Blocks – 500kg – 10t capacity.
- Lever Hoists – 800kg – 10t capacity.

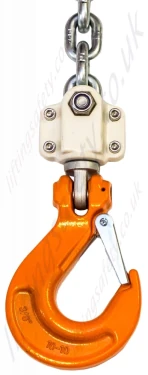

Adaptor Sling Hook

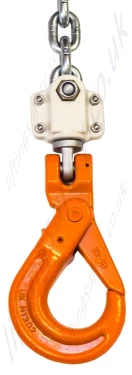

Safety Hooks

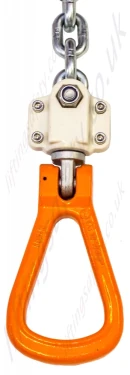

Reevable Egg Link

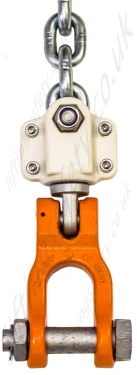

Hoist Clevis Shackle
Adaptor Roation
Unfortunately the Tiger TLH lever hoist is no longer available. Please see the Tiger ProLH Lever Hoist or Tiger SS19 Lever Hoist as a possible alternative.
Lightweight, compact and rugged construction with the handle, gear case and brake cover made entirely of pressed steel, producing strong resistance to impact damage. Using only the highest quality materials precisely machined throughout ensures the TLH11 is the ideal hoist for long term use with less maintenance and servicing costs. These units meet and exceed all the requirements within BS EN 13157:2004
Features
- Range from 250kg – 20,000kg
- 0.25t & 0.5t supplied with carry bag.
- Rugged steel body construction
- Lightweight and portable
- 360 degree handle rotation
- Short stroke and low lever pulling effort
- Easy single-hand “freewheeling” operation
- Drop forged & heat treated alloy hooks
- High quality alloy calibrated load chain
- Safe reliable twin pawl mechanical brake
- Guaranteed light load protection
- Heat treated alloy steel triple spur gears and pinion shaft
- Heavy duty chain end stop
- Operating temperature of -40°C to +50°C
- Proof tested to 1.5 times rated capacity
- 1.5m height of lift as standard but can be chained to exact requirements
- Individual spares readily available
- Can be supplied with Various Top and Bottom fitting to suit your needs, see the 'Adaptor Fittings' tab above for further information.
Safety Brake
The highly efficient twin pawl brake, works instantly when the operation is stopped and securely holds the load. Designed and 100% tested to hold a 2% load of the rated capacity. The bonded friction discs are free of asbestos and achieve highly efficient braking.
Load Chains
Tiger only use the highest quality alloy, calibrated load chains in Grade 80 (T) or 100 (V).
Hooks
Drop forged and heat treated alloy hooks are furnished with heavy duty latch kits that fully engage into the nose of the hook offering maximum load security. The swivel hooks are attached to the yoke using high grade nuts & bolts allowing for complete inspection during any statutory inspection or written scheme maintenance. Recessed forgings offer full protection to the load chain anchor bolts on all our bottom hooks.
Grease
High performance premium quality grease allows the TLH11 hoists to be certified for use within a temperature range of -50°C to +50°C far exceeding the requirements of current standards.
Chain end stops
User friendly heavy duty end stops make it easy for the operator to position the chain whilst “freewheeling” but most importantly gives complete compliance to all known standards.
Mechanical Efficiency
All major components are heat treated and precisely machined to ensure long term smooth operation. High gear ratios keep physical effort to a minimum.
Finish
The TLH11 is finished in a high quality powder coat paint offering excellent corrosion protection.
Proof Load Tests
Every lever hoist is fully tested to 1.5 times its rated capacity.
Additional Features
Heavy duty steel latch engages fully with the hook tip creating a strong secure closure
New ‘End Stop' design guarantees compliance with European standards with hand grip to allow easy chain adjustment
Load chain anchor bolts are fitted via a coined out area offering protection to the nut and bolt, whilst making removal easier for the service engineer
Nuts and bolts are used to secure hook yokes allowing disassembly of the yoke to allow full inspection of load hooks
Technical Specifications
TLH11 250kg |
TLH11 500kg |
TLH11 750kg To 3000kg |
|
||
TLH11 6000kg |
TLH11 10000kg |
Specifications
Product Code | Capacity (tonne) | Effort (kg) | Dimensions (mm) | Load Chain | Standard HOL (m) | Mass (kg) @ std HOL | |||||||
A | B | C | D | E | F | F1 | Diameter (mm) | No. of falls | |||||
LH-0025 | 0.25 | 30 | 60 | 156 | 245 | 82 | 63 | 27 | 22 | .4.0 | 1 | 1 | 2.2 |
LH-0050 | 0.5 | 34 | 75 | 276 | 270 | 100 | 75 | 30 | 26 | .5.0 | 1 | 1 | 3.9 |
LH-0075 | 0.75 | 22 | 128 | 240 | 275 | 158 | 99 | 30 | 26 | .6.3 | 1 | 1.5 | 7.2 |
LH-0150 | 1.5 | 26 | 154 | 360 | 320 | 172 | 104 | 38 | 34 | .7.1 | 1 | 1.5 | 10.1 |
LH-0300 | 3 | 38 | 182 | 360 | 400 | 195 | 108 | 43 | 38 | .10.0 | 1 | 1.5 | 18 |
LH-0600 | 6 | 40 | 242 | 360 | 570 | 195 | 108 | 57 | 52 | .10.0 | 2 | 1.5 | 28 |
LH-1000 | 10 | 47 | 370 | 360 | 630 | 195 | 108 | 71 | 56 | .10.0 | 3 | 1.5 | 42.4 |
Exploded Diagram
Spare Parts List
Part Code | Part Name | Part Code | Part Name |
N-1 | Nut for Gear over | N-26 | Load Chain Guide |
N-2 | Gear Cover | N-27 | Wheel Side Plate Assembly |
N-3 | Pinion Shaft | N-29, N-13, N-28 | Ratchet Gear and Friction Disks |
N-4 | Pinion Shaft Washer | N-30 | Nut for Handle Cover |
N-5 | Gear-Side Plate | N-31 | Handle Assembly |
N-6 | Load Sheave | N-32 | Change Lever |
N-8 | Safety Latch | N-33 | Retaining Spring Base |
N-9 | Top Hook Assembly | N-34 | Grip Ring |
N-10 | Disc Hub | N-35 | Retaining Spring |
N-11 | Pawl Spring | N-36 | Fixing Plate |
N-14 | Spring Disc | N-37 | Screw for Fixing Plate |
N-15 | Snap Ring | N-38 | Grip Ring Cover |
N-16 | Brake Cover with Handle Cover | N-39 | Pinion Nut |
N-17 | Change Gear | N-40 | Bottom Hook Assembly |
N-18 | Spring Washer | N-41 | Bottom Hook Pin 0.75t - 3.0t |
N-19 | Screw for Handle | N-43 | Spring Stand |
N-20 | Label | N-44 | Pushing Up Spring |
N-21 | Pinion Gear | N-45 | Pushing Up Pin |
N-22 | Load Gear | N-46 | Change Pin |
N-23 | End | N-52 | Bottom Hook Pin 6.0t |
N-25 | Chain Stripper |
To Purchase Spare Parts for this product, Please Ring our sales team on 01977684600, or click here for our web enquiry form, quoting the necessary part numbers from the above table.
Tiger Adaptor Hoists are available with a drop-forged clevis adaptor allowing for the interchangeable range of EN1677 Tiger grade 100 clevis fittings.
This Tiger manufactured knuckle configuration gives 360° Rotation and 180° Pivot for maximum flexibility, whilst maintaining our 4:1 factor of safety at all angles.
- Available for Tiger TCB14 / SS12 chain blocks and PROLH / SS11 / TLH lever hoists.
- All fittings meet the standards of EN1677 grade 100 at 400°C tempering.
- Drop forged adaptor for maximum strength certified 4:1 FOS at all angles.
- Self-locking (safety) hook, clevis shackle, reevable egg (master) link or sling hook fitting available.
- Overload protection available.
- For lifting at angles (cross hauling/fleeting/drifting) with no deration.
- Chain Blocks – 500kg – 10t capacity.
- Lever Hoists – 800kg – 10t capacity.
Adaptor Sling Hook
Safety Hooks
Reevable Egg Link
Hoist Clevis Shackle
Adaptor Roation
Pricing
Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
Contact Us About This Product
If you wish to receive a quote for this product, please use the 'Pricing' tab above, this form is for general enquiries regarding this product only.
You can also Request a Quote using the Buy/Quote tab above!
You can easily add more than one item to the Quote Request. This is highly recommend as we will be able to suit your needs much more efficiently.
Share this page!
Save this QR code
for use on Smart Phones
