Extremely Compact: The Rollgliss R550™ is the lightest, most compact unit on the market in its class and unique descender offering dual brake for ultimate safety.
Specifications
Certification
CE EN 341 : 1992/1A and EN 1496 : 2006 cl B
Capacity
Maximum: 2 persons, 282 kg max
Minimum: 1 person, 60 kg min (lighter weight may be outside the standard descend speed)
Descent Speeds
One person : 0.6 to 0.9 m/s
Two persons : 0.6 to 1.2 m/s
Minimum Breaking Strength
15 kN
Materials
Main unit: aluminium alloy and stainless steel
Rope: 9.5 mm kernmantle polyamide
Snap hooks: plated steel
No. of Persons
Total Max. Weight
Max Descent Distance "MDD"
Max No. of "MDD"
Max Total Cumulative Descent Distance
2
282kg
175m
2
350m
1
141kg
500m
1
5500m
1
100kg
500m
15
7755m
1
75kg
500m
22
11000m
Optional Rescue Hub
Allows to perform not only evacuation but also rescue.
Bi-directional Hub
Rope descends from either side which brings one hook up as the other goes down, allowing for immediate use after each descent.
Optional Bracket
Allows quick and easy connection to the ladder rung in order to optimise effectiveness of the rescue.
Durable Rope
9.5mm (3/8”) static kernmantle rope rated for durability.
Multiple Rope Lengths
Lengths from 10 to 200m for 2 persons and from 10 to 500m for 1 person.
Power Drill Adapter
Protrudring 10 mm diameter shaft on the hub is used as a drill adaptor. Connect the Power Drill to help control the pace and / or raise the fall victim. Min advised torque : 45 N.m. Min rotating speed : 0-300 turns/min
Dual Brakes
Anchorage: Used to anchor the device with either a carabiner or sling.
Integrated Rope Ears: Allows for greater descent speed control in assisted rescues.
Dual Brakes: Automatic descent with added security, safety and peace of mind.
Applications
Emergency Escape
Use the Rollgliss 550 as an escape device when it is imperative to get to the ground as quickly as possible.
Assisted Rescue
Attach the Rollgliss 550 to the top of the wind turbine and lower the hook end to the victim and lower them to the ground.
Assisted Rescue Pick-off
Use the Rollgliss 550 for an assisted pick-off rescue when a victim is unable to get to safety alone. Lower to the victim and hook up to them and use the device to descend to safety.
Custom Rescue
The Rollgliss 550 can be used in many custom rescue situations. Use the system to repel down the structure to safety.
System Size Options

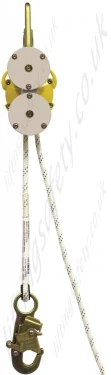

Without Hub
Reference
Length (m)
Weight (kg)
3328010
10
2.8
3328020
20
3.4
3328030
30
4.0
3328040
40
4.6
3328050
50
5.1
3328060
60
5.7
3328070
70
6.3
3328080
80
6.8
3328090
90
7.4
3328100
100
8.0
3328110
110
8.5
3328120
120
9.1
3328130
130
9.7
3328140
140
10.3
3328150
150
10.8
3328175
175
12.2
3328200
200
13.7
3328225
225
15.1
3328250
250
16.5
3328275
275
17.9
3328300
300
19.3

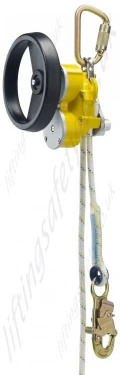

With Rescue Hub
Reference
Length (m)
Weight (kg)
3329010
10
3.5
3329020
20
4.0
3329030
30
4.6
3329040
40
5.2
3329050
50
5.7
3329060
60
6.3
3329070
70
6.9
3329080
80
7.4
3329090
90
8.0
3329100
100
8.6
3329110
110
9.2
3329120
120
9.7
3329130
130
10.3
3329140
140
10.9
3329150
150
11.4
3329175
175
12.9
3329200
200
14.3
3329225
225
15.7
3329250
250
17.1
3329275
275
18.5
3329300
300
20.0

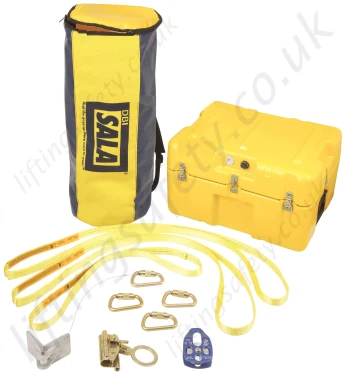

Optional Accessories
Description
Reference
Qty Advised
Letter
Carrying Bag
9506162
1
A
Ladder bracket (*)
3320014
1
B
Edge Protector
3320003
1
C
Pulley
AG570
1
D
Rope Grab
AC202
1
E
Karabiner (**)
2000112
4
F
1.20 m anchoring sling
AM450/120
2
G
0.80 m anchoring sling
AM450/80
1
H
Sealed box (***)
9508289
1
I
(*) R550 mounted with ladder bracket still requires that the unit be secured by the anchorage handle to an anchorage of sufficient strength (**) One 2000112 karabiner is included in each R550 unit. (***) Sealed box (63x50x35cm, 7 kg) allows R550 unit up to 150 m length.
