Trolley Truck Mounted "Roto-Lift" Manually Manoeuvred Floor Operated Drum Rotator. Overall height up to 2286mm - 360kg Capacity

Trolley Truck Mounted "Roto-Lift" Manually Manoeuvred Floor Operated Drum Rotator. Overall height up to 2286mm - 360kg Capacity

Roto-Lift Drum Rotator.

Model:

RDR-583

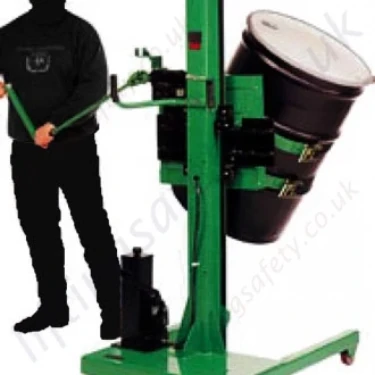

A compact single-post manually propelled truck for lifting, transporting and rotating steel or 'L' and XL ring plastic drums with a capacity of 210/220 litre (45 gallon).

Fully operational in narrow aisles and limited spaces. Will allow 360 degrees of rotation in either direction.

The gripping device is equipped with nylon belts, ratchet tighteners and rubber coated arms for positive gripping.

Technical Specifications

Part N°	Max SWL	Number of Drums	Type of Drum	Lifting Height (mm)	Overall Height (mm)	Lifting Power	Lifting Speed (mm/min)	Weight (kg)
583-11353	360kg	1	1, 2	1550	1980	Hydraulic Foot Pump	1525	207
583-11354	360kg	1	1, 2	1800	2286	Hydraulic Foot Pump	1525	227
583-11355	360kg	1	1, 2	1550	1980	Battery Powered Lift & Rotation	5181	232
583-11356	360kg	1	1, 2	1800	2286	Battery Powered Lift & Rotation	5181	243
583-11357	360kg	1	1, 2	1550	1980	Air Powered (Outside Source)	5181	218
583-11358	360kg	1	1, 2	1800	2286	Air Powered (Outside Source)	5181	230

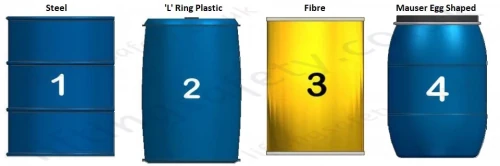

Drum Types

Part N°	Max SWL	Lifting Height (mm)	Overall Height (mm)	Lifting Power	Lifting Speed (mm/min)	Weight (kg)	Guide Price
583-T11353	360kg	1550	1980	Hydraulic Foot Pump	1525	207	Quote Required
583-T11354	630kg	1800	2286	Hydraulic Foot Pump	1525	227	Quote Required
583-T11355	360kg	1550	1980	Battery Powered Lift & Rotation	5181	232	Quote Required
583-T11356	360kg	1800	2286	Battery Powered Lift & Rotation	5181	243	Quote Required
583-T11357	360kg	1550	1980	Air Powered (Outside Source)	5181	218	Quote Required
583-T11358	360kg	1800	2286	Air Powered (Outside Source)	5181	230	Quote Required
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
