Trolley Truck Mounted "Roto-Grip" Manually Manoeuvred Floor Operated Drum Grab with Hydraulic Gripping Action. Overall Height to 762mm - 360kg

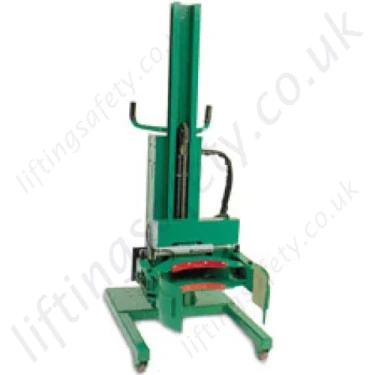

Roto-Grip Drum Grab.

Model:

RDG-585


Unfortunately this product is no longer available. Please view our full range of Drum Handling Equipment or Contact us with your requirements for a possible suitable alternative or even a bespoke custom made unit.

A manually-propelled, fully automatic drum truck, designed for lifting, transporting and rotating steel 210 litre drums. Drum clamping is carried out by a push-button operated electric actuator and lift and rotate functions are carried out hydraulically.

The truck is supplied complete with batteries and an in-built battery charger. Bonded rubber jaws provide a tacky surface for handling most smooth-sided cylinders. Rotation is a full 360 degrees left or right.

Technical Specifications

Part N° Max SWL Lifting Height (mm) Overall Height (mm) Overall Width (mm) Lifting Speed (mm/min) Weight (kg)
585-19914 360kg 1550 1980 762 1525 257
585-19915 360kg 1800 2286 762 1525 293

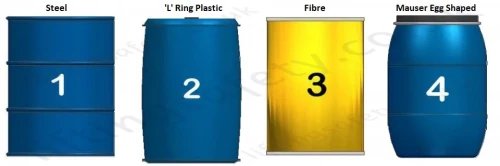

Drum Types

Drum Types

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Unfortunately this product is no longer available. Please view our full range of Drum Handling Equipment or Contact us with your requirements for a possible suitable alternative or even a bespoke custom made unit.

A manually-propelled, fully automatic drum truck, designed for lifting, transporting and rotating steel 210 litre drums. Drum clamping is carried out by a push-button operated electric actuator and lift and rotate functions are carried out hydraulically.

The truck is supplied complete with batteries and an in-built battery charger. Bonded rubber jaws provide a tacky surface for handling most smooth-sided cylinders. Rotation is a full 360 degrees left or right.

Technical Specifications

Part N° Max SWL Lifting Height (mm) Overall Height (mm) Overall Width (mm) Lifting Speed (mm/min) Weight (kg)
585-19914 360kg 1550 1980 762 1525 257
585-19915 360kg 1800 2286 762 1525 293

Drum Types

Drum Types

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
