Protecta AM201 Removable Eye Bolt Anchorage Point Use With Pre Drilled Holes 20 - 22mm Diameter.

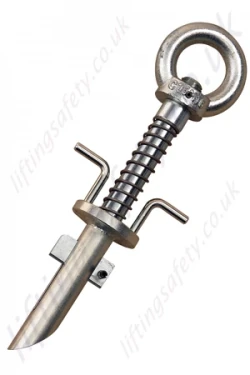

Protecta Manuclave Mobile Eye Bolt

Model:

AM201 / REB-2970


This anchorage point is designed to be fitted into a pre-drilled hole on an existing steel structure to provide an anchorage point. It can then be removed after use and used elsewhere.

Specifications

  • Material treated steel.
  • Use vertical or horizontal.
  • Strength > 20 kN.
  • Hole diameter: 20 to 22 mm.
  • Inner eye diameter: 35 mm.
  • Vertical structure thickness, minimal thickness structure: 35 mm, maximum thickness 40 mm.
  • Horizontal structure thickness, minimum thickness 5 mm, maximum thickness 40 mm.
  • Weight 0.65 Kg
  • Complies with standards: CE0086, EN795 Class B, 0082/037/160/09/96/0200

Dimensions

dimensional drawing

This anchorage point is designed to be fitted into a pre-drilled hole on an existing steel structure to provide an anchorage point. It can then be removed after use and used elsewhere.

Specifications

  • Material treated steel.
  • Use vertical or horizontal.
  • Strength > 20 kN.
  • Hole diameter: 20 to 22 mm.
  • Inner eye diameter: 35 mm.
  • Vertical structure thickness, minimal thickness structure: 35 mm, maximum thickness 40 mm.
  • Horizontal structure thickness, minimum thickness 5 mm, maximum thickness 40 mm.
  • Weight 0.65 Kg
  • Complies with standards: CE0086, EN795 Class B, 0082/037/160/09/96/0200

Dimensions

dimensional drawing


Contact Us About This Product
