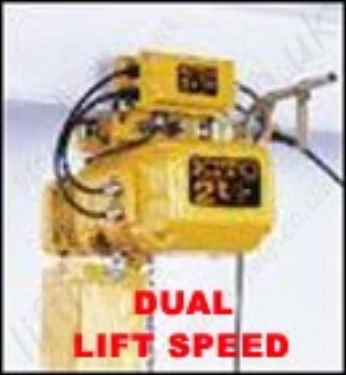

KITO ER-SD Trolley Hoist with Single Speed Travel and Dual Lift - Range from 125kg to 5000kg

Single Travel Speed Motorised Trolley with Dual Lift Speed Electric Hoist.

Model:

KITO ER-SD / MTH-1141


Description

+

125kg to 20 metric tonne capacity, three phase (220 / 440 / 575v)

The ER Series Electric Chain Hoist can improve efficiency in the most demanding of work environments.

Packed with the latest technology, the high quality, high performance ER Series Electric Chain Hoist will satisfy even the most demanding of customers.

Motorised Trolley (MR):

  • Minimum curve radius
  • Simple Gear box construction
  • Improved Balance

Low Headroom

  • Lower Headroom than previous ES model

Heavy Duty, Industrial Application

  • The outer fan-cooling motor is part of the standard model
  • World Class hoist Duty rating

State of the Art Design

  • Simplified construction in a single-piece moulded Die-cast body
  • Kito load chain is case-hardened, to offer increased resistance to wear and inhibits rust

Options

  • Kitos original mechanical brake combined with a friction clutch
  • Upper/lower limit switch
  • Emergency Stop
  • Counter/ Hour meter
  • Thermal Protector

High Safety and Operability

  • World Class friction clutch with high abrasion resistance and reliability
  • Chain will not kink or twist. Bottom hook can not be capsized

Abundant Lifting Speed

  • Provide low, medium, moderate, standard and high lifting speed for varied applications

Standard Specification:

  • Standard HOL is 3m
  • Standard Control length is as in table below
  • Standard length of power supply cable is 10m.
  • Optional Chain containers are available in Plastic, Canvas, or Steel
  • Traversing Speed (m/min) - 50Hz = 20(10), 60Hz = 24(12)

ERM Dual Speed Hoist Single Traverse Speed Specifications

Lifting Motor 3 Phase Intermittent Rating 60% ED

Traversing Motor 3 Phase Intermittent Rating 40% ED

SWL (t) Code Body Size Push Button Cord Length (m) Lifting Motor 3 Phase Traversing Motor 3 Phase Lifting Speed (m/min) Flange Width Adjustability (mm) Min Radius for Curve (mm) Load Chain Dia. (mm)x Chain Fall Lines Classification Test Load (t) Net Weight (kg) Weight for additional one metre of lift (kg)
Out-Put (kW) Out-Put (kW) 50Hz 60Hz Standard Option ISO ASME FEM
W30°
125kg ERM 001H-SD ER-B 2.7 0.56 0.4 14.2 17.0 58 TO 127 (128 TO 153) 154 TO 305 800 5.0x1 M5 H4 2m 156kg 62 0.55
250kg ERM 003S-SD ER-B 0.56 9.7 11.6 5.0x1 M5 2m 313kg 62 0.55
250kg ERM 003H-SD ER-C 0.9 14.9 17.9 6.3x1 M5 2m 313kg 69 0.85
500kg ERM 005L-SD ER-B 0.56 3.7 4.4 6.3x1 M4 1Am 625kg 63 0.85
500kg ERM 005S-SD ER-C 0.9 7.6 9.1 6.3x1 M5 2m 625kg 69 0.85
1 ERM 010L-SD ER-C 0.9 3.9 4.7 8.0x1 M4 1Am 1.25 72 1.38
1 ERM 010M-SD ER-C 1.4 6.1 7.3 8.0x1 M4 1Am 1.25 81 1.38
1 ERM 010S-SD ER-D 1.8 7.3 8.8 8.0x1 M5 2m 1.25 92 1.38
1.5 ERM 015S-SD ER-D 1.8 5.1 6.1 82 TO 153
(154 TO 178)		 179 TO 305 10.0x1 M5 2m 1.88 108 2.3
2 ERM 020L-SD ER-D 1.8 3.6 4.3 10.0x1 M4 1Am 2.5 109 2.3
2 ERM 020M-SD ER-D 2.8 6.0 7.2 10.0x1 M4 1Am 2.5 121 2.3
2 ERM 020S-SD ER-E 2.9 3.5 7.1 8.5 10.0x1 M5 2m 2.5 148 2.3
2.5 ERM 025S-SD ER-E 3.5 5.7 6.9 1000 11.2x1 M4 1Am 3.13 160 2.9
3 ERM 030C-SD ER-D 2.8 3.0 3.6 10.0x2 M4 1Am 3.75 144 4.6
3 ERM 030L-SD ER-E 3.5 4.1 4.9 12.5x1 M4 1Am 3.75 164 3.4
3 ERM 030S-SD ER-E 4.6 5.6 6.7 12.5x1 M4 1Am 3.75 170 3.4
5 ERM 050L-SD ER-E 3.5 0.75 2.9 3.5 100 TO 178 179 TO 305 1800 11.2x2 M4 1Am 6.25 209 5.9

125kg to 20 metric tonne capacity, three phase (220 / 440 / 575v)

The ER Series Electric Chain Hoist can improve efficiency in the most demanding of work environments.

Packed with the latest technology, the high quality, high performance ER Series Electric Chain Hoist will satisfy even the most demanding of customers.

Motorised Trolley (MR):

  • Minimum curve radius
  • Simple Gear box construction
  • Improved Balance

Low Headroom

  • Lower Headroom than previous ES model

Heavy Duty, Industrial Application

  • The outer fan-cooling motor is part of the standard model
  • World Class hoist Duty rating

State of the Art Design

  • Simplified construction in a single-piece moulded Die-cast body
  • Kito load chain is case-hardened, to offer increased resistance to wear and inhibits rust

Options

  • Kitos original mechanical brake combined with a friction clutch
  • Upper/lower limit switch
  • Emergency Stop
  • Counter/ Hour meter
  • Thermal Protector

High Safety and Operability

  • World Class friction clutch with high abrasion resistance and reliability
  • Chain will not kink or twist. Bottom hook can not be capsized

Abundant Lifting Speed

  • Provide low, medium, moderate, standard and high lifting speed for varied applications

Standard Specification:

  • Standard HOL is 3m
  • Standard Control length is as in table below
  • Standard length of power supply cable is 10m.
  • Optional Chain containers are available in Plastic, Canvas, or Steel
  • Traversing Speed (m/min) - 50Hz = 20(10), 60Hz = 24(12)

ERM Dual Speed Hoist Single Traverse Speed Specifications

Lifting Motor 3 Phase Intermittent Rating 60% ED

Traversing Motor 3 Phase Intermittent Rating 40% ED

SWL (t) Code Body Size Push Button Cord Length (m) Lifting Motor 3 Phase Traversing Motor 3 Phase Lifting Speed (m/min) Flange Width Adjustability (mm) Min Radius for Curve (mm) Load Chain Dia. (mm)x Chain Fall Lines Classification Test Load (t) Net Weight (kg) Weight for additional one metre of lift (kg)
Out-Put (kW) Out-Put (kW) 50Hz 60Hz Standard Option ISO ASME FEM
W30°
125kg ERM 001H-SD ER-B 2.7 0.56 0.4 14.2 17.0 58 TO 127 (128 TO 153) 154 TO 305 800 5.0x1 M5 H4 2m 156kg 62 0.55
250kg ERM 003S-SD ER-B 0.56 9.7 11.6 5.0x1 M5 2m 313kg 62 0.55
250kg ERM 003H-SD ER-C 0.9 14.9 17.9 6.3x1 M5 2m 313kg 69 0.85
500kg ERM 005L-SD ER-B 0.56 3.7 4.4 6.3x1 M4 1Am 625kg 63 0.85
500kg ERM 005S-SD ER-C 0.9 7.6 9.1 6.3x1 M5 2m 625kg 69 0.85
1 ERM 010L-SD ER-C 0.9 3.9 4.7 8.0x1 M4 1Am 1.25 72 1.38
1 ERM 010M-SD ER-C 1.4 6.1 7.3 8.0x1 M4 1Am 1.25 81 1.38
1 ERM 010S-SD ER-D 1.8 7.3 8.8 8.0x1 M5 2m 1.25 92 1.38
1.5 ERM 015S-SD ER-D 1.8 5.1 6.1 82 TO 153
(154 TO 178)		 179 TO 305 10.0x1 M5 2m 1.88 108 2.3
2 ERM 020L-SD ER-D 1.8 3.6 4.3 10.0x1 M4 1Am 2.5 109 2.3
2 ERM 020M-SD ER-D 2.8 6.0 7.2 10.0x1 M4 1Am 2.5 121 2.3
2 ERM 020S-SD ER-E 2.9 3.5 7.1 8.5 10.0x1 M5 2m 2.5 148 2.3
2.5 ERM 025S-SD ER-E 3.5 5.7 6.9 1000 11.2x1 M4 1Am 3.13 160 2.9
3 ERM 030C-SD ER-D 2.8 3.0 3.6 10.0x2 M4 1Am 3.75 144 4.6
3 ERM 030L-SD ER-E 3.5 4.1 4.9 12.5x1 M4 1Am 3.75 164 3.4
3 ERM 030S-SD ER-E 4.6 5.6 6.7 12.5x1 M4 1Am 3.75 170 3.4
5 ERM 050L-SD ER-E 3.5 0.75 2.9 3.5 100 TO 178 179 TO 305 1800 11.2x2 M4 1Am 6.25 209 5.9
