Micro-Miniature Machine Screw Actuator, 500lbs or 1000lbs

Micro-Miniature Machine Screw Actuator, 500lbs or 1000lbs

Mini Screw Actuator.

Model:

MMSA-4054

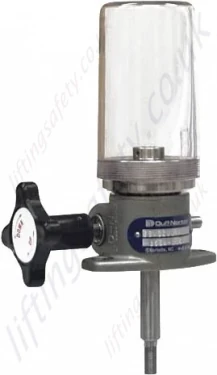

Micro-Miniature Machine Screw Actuator, 500lbs or 1000lbs

Micro Minature Machine Screw Actuator Mini Dimensional Specifications
The Micro-Minature Machine Screw Actuator allows for extremely fine adjustment.

Equipped with anti-backlash nuts to minimize vertical backlash between the screw and worm gear nut.

Also available in stainless steel, the standard model has anodized aluminium shell cap and housing wityh stainless steel worm and lifting screws. Sealed 316 stainless steel shell cap, housing, worm and lifting screw.

Manual operation is accomplished with an easy to use hand knob.

The dial indicator is protected by a removable clear plastic cover. (dial indicators are available on request).

Mini Dimensional Specifications
Rated Capacity Screw Diameter Turns of worm for 1/2" Raise No Load Torque Lifting Torque at Full Load Worm Gear Ratio Weight Shell Cap and Housing
500 lbs .500 500 2 in-lbs 12 in-lbs 20:1 2 lbs Aluminium
1000 lbs .625 500 2 in-lbs 18 in-lbs 20:1 2 lbs Aluminium
1000 lbs .625 500 2 in-lbs 18 in-lbs 20:1 3 lbs Stainless Steel
Part N° Rated Capacity Screw Diameter Turns of worm for 1/2" Raise No Load Torque Lifting Torque at Full Load Worm Gear Ratio Weight Shell Cap and Housing Unit Price (Ex. VAT) Quantity
4054-T22073 500 lbs .500 500 2 in-lbs 12 in-lbs 20:1 2 lbs Aluminium Quote Required
4054-T22074 1000 lbs .625 500 2 in-lbs 18 in-lbs 20:1 2 lbs Aluminium Quote Required
4054-T22075 1000 lbs .625 500 2 in-lbs 18 in-lbs 20:1 3 lbs Stainless Steel Quote Required
Availability Usually 1-2 Working Days - 1pm cut-off
Description

The Micro-Minature Machine Screw Actuator allows for extremely fine adjustment.

Equipped with anti-backlash nuts to minimize vertical backlash between the screw and worm gear nut.

Also available in stainless steel, the standard model has anodized aluminium shell cap and housing wityh stainless steel worm and lifting screws. Sealed 316 stainless steel shell cap, housing, worm and lifting screw.

Manual operation is accomplished with an easy to use hand knob.

The dial indicator is protected by a removable clear plastic cover. (dial indicators are available on request).

Dimensional Specifications

Mini Dimensional Specifications
Rated Capacity Screw Diameter Turns of worm for 1/2" Raise No Load Torque Lifting Torque at Full Load Worm Gear Ratio Weight Shell Cap and Housing
500 lbs .500 500 2 in-lbs 12 in-lbs 20:1 2 lbs Aluminium
1000 lbs .625 500 2 in-lbs 18 in-lbs 20:1 2 lbs Aluminium
1000 lbs .625 500 2 in-lbs 18 in-lbs 20:1 3 lbs Stainless Steel
Downloads

MicroMiniatureActuators.pdf

Micro Minature Machine Screw Actuator Specifications

(approx. 0.5Mb)
