LiftingSafety 360 Degree Slew "Vertical Pole" Man-Riding Davit Arm. Galvanised Modular Construction Built To Customers Specification

EN795 Certified Davit arm for Manriding, Rescue and Fall arrest. Available with Man Riding Winch and/or Inertia reel c/w integrated rescue winch.

Model:

MRDA-2341


Description

+

For rescue from height, Fall arrest and man-riding (suspended) applications, EN795 Certified.

We offer two main designs of lightweight portable davit arms for working at height applications, 'Lean Over' type davits and 'Vertical Pole' type davits. The vertical pole davits are usually supplied with a split vertical pole with male / female socket to make manual handling easier. They are suited to applications where there is an obstruction which must be worked around( like over a handrail). Because the unit is relatively compact, it offers an excellent solution for a confined space or restricted access environment.

This type of light weight portable manriding / rescue davit arm is mainly manufactured from galvanized mild steel though it can also be manufactured from aluminium or stainless steel if required. Many of our customers from the offshore oil and gas industries utilise our davits in either aluminium or stainless steel as the working environment demands.

Stainless steel lifting davit arms are utilised by food production industries, where stringent regulations must be adhered to with regard to cleanliness. All of our special davit arm jib cranes can be manufactured to our customers specification (height of lift and reach) and are designed for the lifting of people (man-riding application). We also offer davits for material lifting applications. For handling of materials, the davit arm’s can be supplied up to 1000kg  safe working load (SWL)

To help users comply with the manual handling regulations, our man-riding rescue davit arms are made in three sections, this ensures that the davits are easily transportable.

The design of the davits means that they are very portable. Many of our customers purchase several davit sockets, and permanently install these wherever they require the davit. One davit arm can then be purchased and easily transported between jobs - reducing the overall cost.

The drawings below give a basic indication of the style and size of davits available, though as all our davit arm cranes are made to order, the specification can be changed to meet your individual specification.We offer several socket options for our davit arms.

The products of Selby Engineering and Lifting Safety are first choice for specifiers and engineers worldwide. Our davit sockets are used extensively in the chemical, water treatment and offshore oil and gas industries. We have a wealth of experience in the development of all types of individual davits and sockets for numerous applications.

Davit Options

Man riding winch and Inertia reel c/w integrated rescue winchMan-riding winch and Inertia reel c/w integrated rescue winch

In our opinion this is the best configuration for manriding applications (suspended work at height) because it is the correct configuration of equipment to safely provide means of access and egress; i.e. getting winched  into the working position and getting back out again, suspended using the Manriding winch.
When a person is suspended while working at height there is the always a risk of falling (equipment / winch failure) and therefore there is a legal requirement to provide further equipment of arresting a potential fall (a fall arrest plan) and also a legal requirement to provide means to rescue the casualty (rescue plan). The rescue plan needs to cover any reasonable eventuality. With this davit set-up of working at height, should the manriding winch fail, the inertia reel will automatically arrest the fall. This inertia reel has an integrated rescue winch, which will then be used to rescue the casualty, raising or lowering them to safety.
It should be noted that the integrated rescue winch built into this fall arrest inertia reel must not be used as a man riding winch (for access or egress). - it is a means of rescue in the event of an emergency only.

Manriding winch and Inertia reel (no integrated rescue winch)

Fall arrest inertia reel with integrated rescue (retrieval) winch

This scenario will enable a person to gain access / egress to the chamber (confined space etc) by climbing down a fixed vertical ladder.
In the event of the person falling from the ladder, the fall will be immediately arrested by the inertia reel block. You must assume that the worker cannot self rescue (step back on to the ladder and climb out), for example having suffered a broken limb or heart attack. The rescuer will then retrieve the casualty with the inertia reel's built-in rescue winch. Thus providing a rescue plan.
Please note that the In-Built winching facility provided by this type of inertia reel can only be used for emergency rescue of a casualty and must not be used for suspended work at height.

Fall arrest inertia reel with integrated rescue (retrieval) winch

Man-riding winch and Inertia reel (no integrated rescue winch)

We suggest that you use the option above for suspended working at height. - Man riding winch and Inertia reel c/w integrated rescue winch. This configuration is similar to the above, however because the inertia reel does not feature an integrated rescue winch, there is not a means of rescue in the event of a winch failure. The casualty would be left suspended and subject to the effects of suspension trauma and the potential of death.
Therefore although you would have a fall arrest plan you would not have a rescue plan as required by law.

Inertia Reel only

Inertia Reel only

This configuration covers only fall arrest. There is no winch for access or egress, and no means of rescue (no rescue plan). For example: it should not be assumed that a person falling from a fixed ladder is capable of self rescue (fall arrested by the inertia reel) - Think; if a worker suffers a heart attack he would be left suspended with no system in place for others to effect a rescue. A rescue plan is required by law for persons working in a fall arrest scenario.

Man riding Winch only

Man riding Winch only

This configuration is only suitable for rescue situations.
The manriding winch on its own cannot be used to lift a person for access and egress because there is no provision for fall arrest or rescue in the event of a winch failure.

Davit and Socket Drawings

+

Davits and Sockets Below are Standard

Special items can be built to your own specifications

Standard davit arm specifications can be seen by clicking the relevant icon below. Configure options above to request a quote for a davit to YOUR specification.

Davit shown (right) is fitted with a fall arrest inertia reel with integrated rescue winch, please click here to view our davits for material lifting applications.

Davit Sockets

We offer four Davit Socket Options, dependant on the size of davit you require.

Bolt-down Surface Mount Socket

For use on flat surfaces. Cover plate can be supplied if required. Surface protection hot dip galvanised to BS1461 as standard. Stainless steel 304/316 material can be supplied/manufactured.

Cast-In Socket (with cover plate)

This type of socket is fitted when a flush non-trip hazard installation is required. A cover plate is fitted as standard, secured with 3 x 8mm fasteners. Surface protection hot dip galvanised to BS1461 as standard. Stainless Steel 304/316 can be supplied/ manufactured.

Wall-Mount Socket

Hot dip galvanised to BS1461. In our product range we offer back plates and tiebars to accompany the wall-type sockets for use on a brick wall. We also offer these items in stainless steel 304/316.

Inverted Davit Socket

Widely used in steel walkways where a flush installation is required to eliminate trip hazards. This type of socket can be mounted flush within open mesh flooring section. Surface finish hot dip galvanised to BS1461 . This type of socket can be supplied in 304/316 stainless steel.

Socket Dimensions and Specifications

Thumbnail Image
(click to view enlarge)		 Image Description Thumbnail Image
(click to view enlarge)		 Image Description
Smaller vertical split pole davit applications

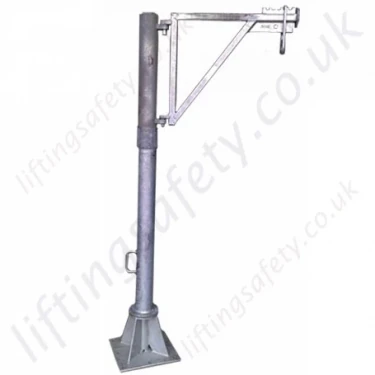

Vertical Pole Man-riding davit arms

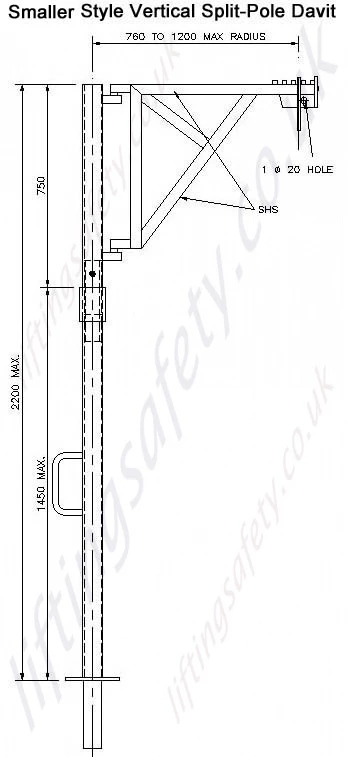

Dimensional drawing 760mm - 1200mm reach manriding davit

 Smaller vertical split pole davit c/w winch

Vertical Pole Manriding davit & Winch

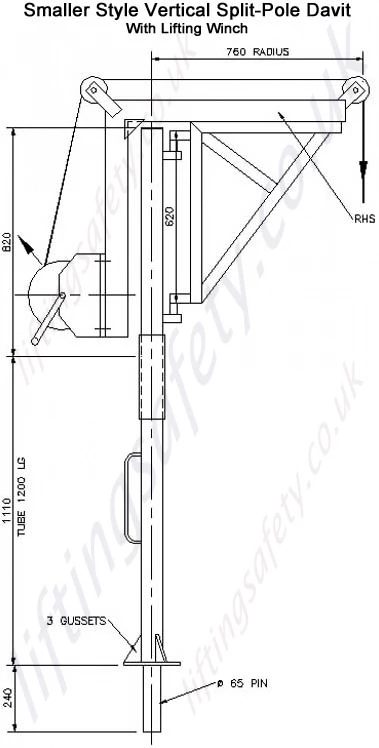

Dimensional drawing 1070mm - 1200mm reach, lightweight manriding / rescue davit with winch
Smaller Surface Mount Socket

Surface Mount Socket for small davits

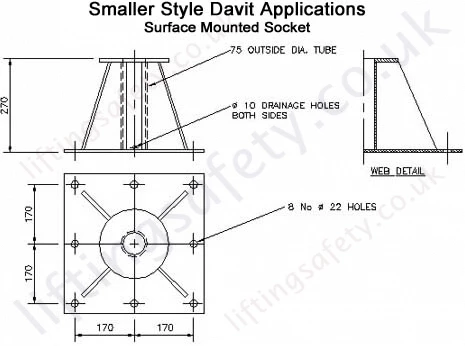

Dimensional drawing surface mount davit socket

 Larger Surface Mount Socket

Surface Mount Socket for larger davits

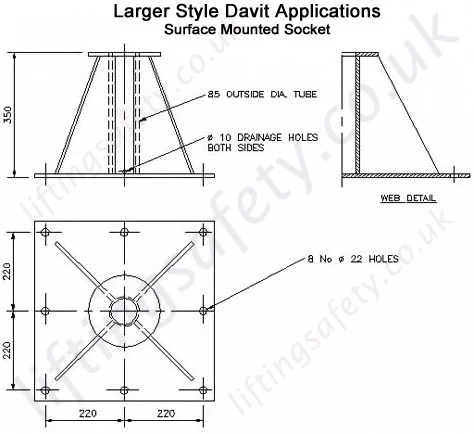

Dimensional drawing surface mount Manriding davit socket for larger davit applications
 Smaller Wall Mount Socket

Wall Mounted Socket for small davits

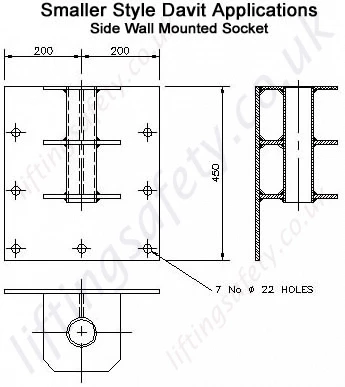

Dimensional drawing wall mount lifting davit socket

 Larger Wall Mount Socket

Wall Mount Socket for larger davits

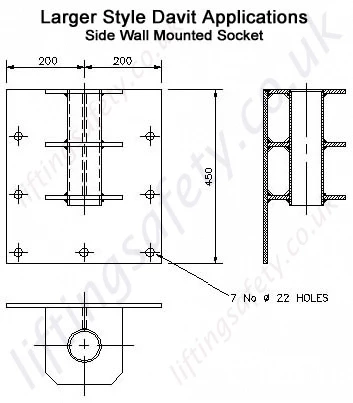

Dimensional drawing wall mount Manriding davit socket for larger davit applications
Smaller Cast in Socket

Cast in Davit Socket for smaller davits

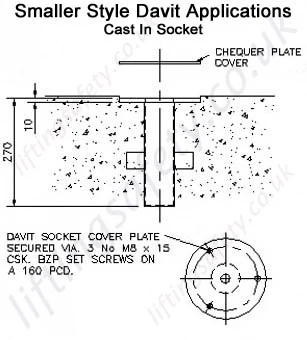

Dimensional drawing cast in davit socket

 Larger Cast in Socket

Cast in Davit Socket for larger davits

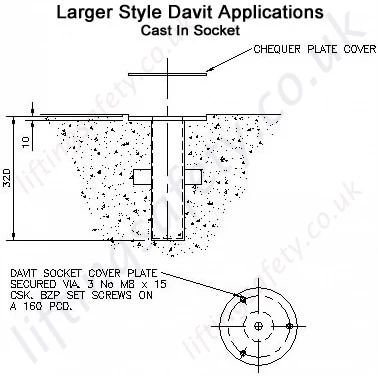

Dimensional drawing cast in Manriding davit socket for larger davit applications
 Smaller Inverted Socket

Small Inverted Davit Sockets

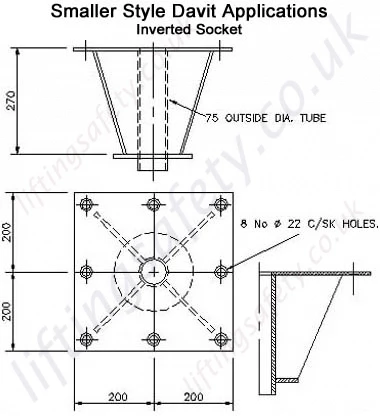

Dimensional drawing inverted davit socket

 Larger Inverted Socket

Large Inverted Davit Sockets

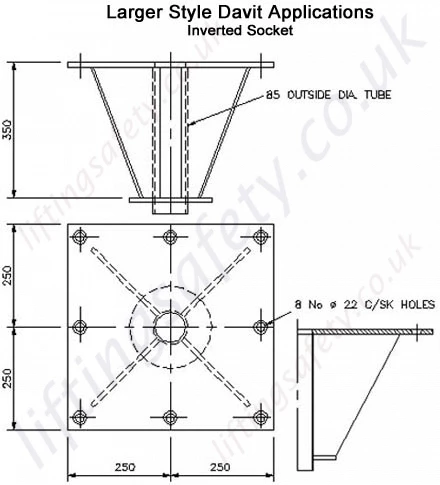

Dimension drawing inverted Manriding davit socket for larger davit applications

For rescue from height, Fall arrest and man-riding (suspended) applications, EN795 Certified.

We offer two main designs of lightweight portable davit arms for working at height applications, 'Lean Over' type davits and 'Vertical Pole' type davits. The vertical pole davits are usually supplied with a split vertical pole with male / female socket to make manual handling easier. They are suited to applications where there is an obstruction which must be worked around( like over a handrail). Because the unit is relatively compact, it offers an excellent solution for a confined space or restricted access environment.

This type of light weight portable manriding / rescue davit arm is mainly manufactured from galvanized mild steel though it can also be manufactured from aluminium or stainless steel if required. Many of our customers from the offshore oil and gas industries utilise our davits in either aluminium or stainless steel as the working environment demands.

Stainless steel lifting davit arms are utilised by food production industries, where stringent regulations must be adhered to with regard to cleanliness. All of our special davit arm jib cranes can be manufactured to our customers specification (height of lift and reach) and are designed for the lifting of people (man-riding application). We also offer davits for material lifting applications. For handling of materials, the davit arm’s can be supplied up to 1000kg  safe working load (SWL)

To help users comply with the manual handling regulations, our man-riding rescue davit arms are made in three sections, this ensures that the davits are easily transportable.

The design of the davits means that they are very portable. Many of our customers purchase several davit sockets, and permanently install these wherever they require the davit. One davit arm can then be purchased and easily transported between jobs - reducing the overall cost.

The drawings below give a basic indication of the style and size of davits available, though as all our davit arm cranes are made to order, the specification can be changed to meet your individual specification.We offer several socket options for our davit arms.

The products of Selby Engineering and Lifting Safety are first choice for specifiers and engineers worldwide. Our davit sockets are used extensively in the chemical, water treatment and offshore oil and gas industries. We have a wealth of experience in the development of all types of individual davits and sockets for numerous applications.

Davit Options

Man riding winch and Inertia reel c/w integrated rescue winchMan-riding winch and Inertia reel c/w integrated rescue winch

In our opinion this is the best configuration for manriding applications (suspended work at height) because it is the correct configuration of equipment to safely provide means of access and egress; i.e. getting winched  into the working position and getting back out again, suspended using the Manriding winch.
When a person is suspended while working at height there is the always a risk of falling (equipment / winch failure) and therefore there is a legal requirement to provide further equipment of arresting a potential fall (a fall arrest plan) and also a legal requirement to provide means to rescue the casualty (rescue plan). The rescue plan needs to cover any reasonable eventuality. With this davit set-up of working at height, should the manriding winch fail, the inertia reel will automatically arrest the fall. This inertia reel has an integrated rescue winch, which will then be used to rescue the casualty, raising or lowering them to safety.
It should be noted that the integrated rescue winch built into this fall arrest inertia reel must not be used as a man riding winch (for access or egress). - it is a means of rescue in the event of an emergency only.

Manriding winch and Inertia reel (no integrated rescue winch)

Fall arrest inertia reel with integrated rescue (retrieval) winch

This scenario will enable a person to gain access / egress to the chamber (confined space etc) by climbing down a fixed vertical ladder.
In the event of the person falling from the ladder, the fall will be immediately arrested by the inertia reel block. You must assume that the worker cannot self rescue (step back on to the ladder and climb out), for example having suffered a broken limb or heart attack. The rescuer will then retrieve the casualty with the inertia reel's built-in rescue winch. Thus providing a rescue plan.
Please note that the In-Built winching facility provided by this type of inertia reel can only be used for emergency rescue of a casualty and must not be used for suspended work at height.

Fall arrest inertia reel with integrated rescue (retrieval) winch

Man-riding winch and Inertia reel (no integrated rescue winch)

We suggest that you use the option above for suspended working at height. - Man riding winch and Inertia reel c/w integrated rescue winch. This configuration is similar to the above, however because the inertia reel does not feature an integrated rescue winch, there is not a means of rescue in the event of a winch failure. The casualty would be left suspended and subject to the effects of suspension trauma and the potential of death.
Therefore although you would have a fall arrest plan you would not have a rescue plan as required by law.

Inertia Reel only

Inertia Reel only

This configuration covers only fall arrest. There is no winch for access or egress, and no means of rescue (no rescue plan). For example: it should not be assumed that a person falling from a fixed ladder is capable of self rescue (fall arrested by the inertia reel) - Think; if a worker suffers a heart attack he would be left suspended with no system in place for others to effect a rescue. A rescue plan is required by law for persons working in a fall arrest scenario.

Man riding Winch only

Man riding Winch only

This configuration is only suitable for rescue situations.
The manriding winch on its own cannot be used to lift a person for access and egress because there is no provision for fall arrest or rescue in the event of a winch failure.

Davits and Sockets Below are Standard

Special items can be built to your own specifications

Standard davit arm specifications can be seen by clicking the relevant icon below. Configure options above to request a quote for a davit to YOUR specification.

Davit shown (right) is fitted with a fall arrest inertia reel with integrated rescue winch, please click here to view our davits for material lifting applications.

Davit Sockets

We offer four Davit Socket Options, dependant on the size of davit you require.

Bolt-down Surface Mount Socket

For use on flat surfaces. Cover plate can be supplied if required. Surface protection hot dip galvanised to BS1461 as standard. Stainless steel 304/316 material can be supplied/manufactured.

Cast-In Socket (with cover plate)

This type of socket is fitted when a flush non-trip hazard installation is required. A cover plate is fitted as standard, secured with 3 x 8mm fasteners. Surface protection hot dip galvanised to BS1461 as standard. Stainless Steel 304/316 can be supplied/ manufactured.

Wall-Mount Socket

Hot dip galvanised to BS1461. In our product range we offer back plates and tiebars to accompany the wall-type sockets for use on a brick wall. We also offer these items in stainless steel 304/316.

Inverted Davit Socket

Widely used in steel walkways where a flush installation is required to eliminate trip hazards. This type of socket can be mounted flush within open mesh flooring section. Surface finish hot dip galvanised to BS1461 . This type of socket can be supplied in 304/316 stainless steel.

Socket Dimensions and Specifications

Thumbnail Image
(click to view enlarge)		 Image Description Thumbnail Image
(click to view enlarge)		 Image Description
Smaller vertical split pole davit applications

Vertical Pole Man-riding davit arms

Dimensional drawing 760mm - 1200mm reach manriding davit

 Smaller vertical split pole davit c/w winch

Vertical Pole Manriding davit & Winch

Dimensional drawing 1070mm - 1200mm reach, lightweight manriding / rescue davit with winch
Smaller Surface Mount Socket

Surface Mount Socket for small davits

Dimensional drawing surface mount davit socket

 Larger Surface Mount Socket

Surface Mount Socket for larger davits

Dimensional drawing surface mount Manriding davit socket for larger davit applications
 Smaller Wall Mount Socket

Wall Mounted Socket for small davits

Dimensional drawing wall mount lifting davit socket

 Larger Wall Mount Socket

Wall Mount Socket for larger davits

Dimensional drawing wall mount Manriding davit socket for larger davit applications
Smaller Cast in Socket

Cast in Davit Socket for smaller davits

Dimensional drawing cast in davit socket

 Larger Cast in Socket

Cast in Davit Socket for larger davits

Dimensional drawing cast in Manriding davit socket for larger davit applications
 Smaller Inverted Socket

Small Inverted Davit Sockets

Dimensional drawing inverted davit socket

 Larger Inverted Socket

Large Inverted Davit Sockets

Dimension drawing inverted Manriding davit socket for larger davit applications

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Contact Us About This Product
