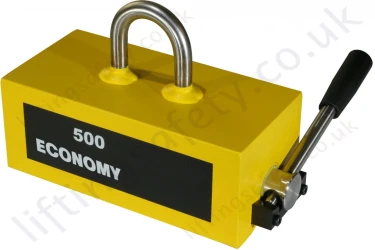

LiftingSafety Economy Permanent Lifting Magnet - Range 125kg to 1000kg

Lever Operated, Increased Air-Gap Capacity

Model:

LEPL-4311


Benefits

  • Modern construction with importance on the longest lifetime also in heavy duty conditions.
  • Solid switching handle with safety locking.
  • Tremendous lifting capacity thanks to High-Energy Neo-dymium magnets.
  • Safety factor 3++.
  • Individual testing and certification for each finished magnet.
  • Increased air gap capability.
  • Suitable for flat and round material.
  • Ergonimical one hand switching.
  • Robust, low maintenance.
  • Made to CE and EN 13155 standards.

Applications

  • Everywhere with steel
  • In the workshop to load/unload machine tools
  • At construction sites to lift plates and structures
  • In the warehouse to handle plate and bar stock

Specifications

  LSEco-Lift 250 LSEco-Lift  500 LSEco-Lift  1000
Tested lifting capacity (kg) 800 1600 3200
Lifting capacity (kg) Flat material 250 500 1000
Circular material 125 250 500
D of circular frofile min./max. (mm) 60/250 65/270 100/300
L (mm) 152 246 305
S (mm) 100 120 146
H (mm) 180 180 236
Weight (kg) 10 19 38
Lift-Manual.pdf

User Manual

The User Instruction Manual For the LSLift Series Lever Operated Lifting Magnet
(approx. 0.5Mb)
Part N° Model Capacity for Flat Materials (kg) Capacity for Rounded Materials (kg) Weight (kg) Guide Price Quantity
4311-T22791 LSEco-Lift 250 250 125 10 Quote Required
4311-T22792 LSEco-Lift 500 500 250 19 Quote Required
4311-T22793 LSEco-Lift 1000 1000 500 38 Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?

Benefits

  • Modern construction with importance on the longest lifetime also in heavy duty conditions.
  • Solid switching handle with safety locking.
  • Tremendous lifting capacity thanks to High-Energy Neo-dymium magnets.
  • Safety factor 3++.
  • Individual testing and certification for each finished magnet.
  • Increased air gap capability.
  • Suitable for flat and round material.
  • Ergonimical one hand switching.
  • Robust, low maintenance.
  • Made to CE and EN 13155 standards.

Applications

  • Everywhere with steel
  • In the workshop to load/unload machine tools
  • At construction sites to lift plates and structures
  • In the warehouse to handle plate and bar stock

Specifications

  LSEco-Lift 250 LSEco-Lift  500 LSEco-Lift  1000
Tested lifting capacity (kg) 800 1600 3200
Lifting capacity (kg) Flat material 250 500 1000
Circular material 125 250 500
D of circular frofile min./max. (mm) 60/250 65/270 100/300
L (mm) 152 246 305
S (mm) 100 120 146
H (mm) 180 180 236
Weight (kg) 10 19 38
Lift-Manual.pdf

User Manual

The User Instruction Manual For the LSLift Series Lever Operated Lifting Magnet
(approx. 0.5Mb)
Part N° Model Capacity for Flat Materials (kg) Capacity for Rounded Materials (kg) Weight (kg) Guide Price Quantity
4311-T22791 LSEco-Lift 250 250 125 10 Quote Required
4311-T22792 LSEco-Lift 500 500 250 19 Quote Required
4311-T22793 LSEco-Lift 1000 1000 500 38 Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?
