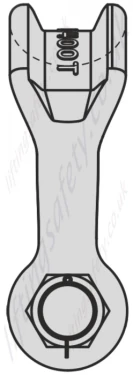

Heavy Duty Wide Body Bolt Type Bow Shackle - Range 30 tonne to 4,000 tonne

Forged Alloy Steel Safety Bow Shackle, Polar Rated

Model:

HDWS-4834


  • Material: Forged alloy steel quenched and tempered.
  • Safety factor: ≤ 2000 ton 5 times, > 2000 ≤ 3000 ton 4.5 times, > 3000 ton 4 times.
  • Finish: Painted.
  • Rounded wide body protects sling from damages (Sharp corners create stress points on slings).
  • Temperature range: ≤ 40 ton -20°C up to +200°C, > 40 ton -40°C up to +200°C, Polar Rated.
  • Made in the EU.
  • Supplied with relevant certification.
  • Shackles from WLL 30 ≤ 125 ton are NOT supplied with an eyebolt.
  • Shackles from WLL 900 ton completed with eyebolts on both sides.
  • Non-standard sizes or custom products available on request.

Dimensions and Specifications

WLL (t) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) L (mm) R (mm) X (mm) Y (mm) Weight (kg)
30 35 44 65 180 90 128 80 202 45 204 292 14
40 45 51 84 200 109 140 97 252 53 232 331 21
55 65 56 95 250 130 160 110 300 55 288 400 33
75 75 70 110 300 150 185 120 345 60 334 485 53
125 85 80 140 370 165 220 150 395 80 390 583 84
150 90 95 150 400 200 250 170 420 90 429 638 115
200 105 105 160 480 225 275 205 470 110 484 755 183
250 120 120 180 550 240 300 230 520 125 540 850 255
300 140 134 195 600 280 350 265 580 140 628 947 368
400 160 160 230 620 330 370 320 655 170 689 1035 571
500 170 180 265 680 350 440 340 710 180 779 1125 719
600 180 200 290 720 405 490 370 795 190 847 1213 960
700 210 215 320 780 465 540 400 880 210 957 1330 1350
800 220 230 345 800 465 555 420 925 220 990 1358 1400
900 235 250 370 850 480 585 440 1010 235 1060 1450 1850
1000 235 270 400 850 530 615 460 1050 240 1091 1490 2050
1250 275 300 455 960 570 645 560 1210 285 1205 1695 3000
1550 275 320 485 980 610 680 580 1240 290 1240 1745 3300
1750 310 360 500 1120 660 700 600 1325 300 1346 1960 4700
2000 320 385 520 1140 680 720 620 1365 310 1368 2012 4800
2500 330 400 520 1140 740 730 635 1380 320 1383 2065 5400
3000 340 420 530 1140 760 740 650 1410 330 1413 2080 5800
3500 350 440 540 1140 790 750 670 1480 340 1480 2130 6800
4000 360 460 550 1140 810 760 690 1510 350 1510 2140 7200

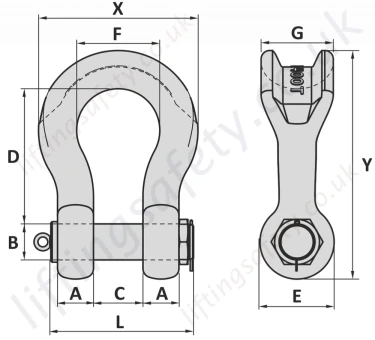

High Tonnage Wide Body Shackle Dimesnions

Tolerance: Inside length ± 7.5%, all other forged parts ± 5%, machined parts ± 1 mm

Part N° WLL (t) Weight (kg) Guide Price Quantity
4834-T24394 30 14 Quote Required
4834-T24395 40 21 Quote Required
4834-T24396 55 33 Quote Required
4834-T24397 75 53 Quote Required
4834-T24398 125 84 Quote Required
4834-T24399 150 115 Quote Required
4834-T24400 200 183 Quote Required
4834-T24401 250 255 Quote Required
4834-T24402 300 368 Quote Required
4834-T24403 400 571 Quote Required
4834-T24404 500 719 Quote Required
4834-T24405 600 960 Quote Required
4834-T24406 700 1350 Quote Required
4834-T24407 800 1400 Quote Required
4834-T24408 900 1850 Quote Required
4834-T24409 1000 2050 Quote Required
4834-T24410 1250 3000 Quote Required
4834-T24411 1550 3300 Quote Required
4834-T24412 1750 4700 Quote Required
4834-T24413 2000 4800 Quote Required
4834-T24414 2500 5400 Quote Required
4834-T24415 3000 5800 Quote Required
4834-T24416 3500 6800 Quote Required
4834-T24417 4000 7200 Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?
  • Material: Forged alloy steel quenched and tempered.
  • Safety factor: ≤ 2000 ton 5 times, > 2000 ≤ 3000 ton 4.5 times, > 3000 ton 4 times.
  • Finish: Painted.
  • Rounded wide body protects sling from damages (Sharp corners create stress points on slings).
  • Temperature range: ≤ 40 ton -20°C up to +200°C, > 40 ton -40°C up to +200°C, Polar Rated.
  • Made in the EU.
  • Supplied with relevant certification.
  • Shackles from WLL 30 ≤ 125 ton are NOT supplied with an eyebolt.
  • Shackles from WLL 900 ton completed with eyebolts on both sides.
  • Non-standard sizes or custom products available on request.

Dimensions and Specifications

WLL (t) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) L (mm) R (mm) X (mm) Y (mm) Weight (kg)
30 35 44 65 180 90 128 80 202 45 204 292 14
40 45 51 84 200 109 140 97 252 53 232 331 21
55 65 56 95 250 130 160 110 300 55 288 400 33
75 75 70 110 300 150 185 120 345 60 334 485 53
125 85 80 140 370 165 220 150 395 80 390 583 84
150 90 95 150 400 200 250 170 420 90 429 638 115
200 105 105 160 480 225 275 205 470 110 484 755 183
250 120 120 180 550 240 300 230 520 125 540 850 255
300 140 134 195 600 280 350 265 580 140 628 947 368
400 160 160 230 620 330 370 320 655 170 689 1035 571
500 170 180 265 680 350 440 340 710 180 779 1125 719
600 180 200 290 720 405 490 370 795 190 847 1213 960
700 210 215 320 780 465 540 400 880 210 957 1330 1350
800 220 230 345 800 465 555 420 925 220 990 1358 1400
900 235 250 370 850 480 585 440 1010 235 1060 1450 1850
1000 235 270 400 850 530 615 460 1050 240 1091 1490 2050
1250 275 300 455 960 570 645 560 1210 285 1205 1695 3000
1550 275 320 485 980 610 680 580 1240 290 1240 1745 3300
1750 310 360 500 1120 660 700 600 1325 300 1346 1960 4700
2000 320 385 520 1140 680 720 620 1365 310 1368 2012 4800
2500 330 400 520 1140 740 730 635 1380 320 1383 2065 5400
3000 340 420 530 1140 760 740 650 1410 330 1413 2080 5800
3500 350 440 540 1140 790 750 670 1480 340 1480 2130 6800
4000 360 460 550 1140 810 760 690 1510 350 1510 2140 7200
High Tonnage Wide Body Shackle Dimesnions

Tolerance: Inside length ± 7.5%, all other forged parts ± 5%, machined parts ± 1 mm

Part N° WLL (t) Weight (kg) Guide Price Quantity
4834-T24394 30 14 Quote Required
4834-T24395 40 21 Quote Required
4834-T24396 55 33 Quote Required
4834-T24397 75 53 Quote Required
4834-T24398 125 84 Quote Required
4834-T24399 150 115 Quote Required
4834-T24400 200 183 Quote Required
4834-T24401 250 255 Quote Required
4834-T24402 300 368 Quote Required
4834-T24403 400 571 Quote Required
4834-T24404 500 719 Quote Required
4834-T24405 600 960 Quote Required
4834-T24406 700 1350 Quote Required
4834-T24407 800 1400 Quote Required
4834-T24408 900 1850 Quote Required
4834-T24409 1000 2050 Quote Required
4834-T24410 1250 3000 Quote Required
4834-T24411 1550 3300 Quote Required
4834-T24412 1750 4700 Quote Required
4834-T24413 2000 4800 Quote Required
4834-T24414 2500 5400 Quote Required
4834-T24415 3000 5800 Quote Required
4834-T24416 3500 6800 Quote Required
4834-T24417 4000 7200 Quote Required
Pricing Currency: Not available at the moment. Add To Quote Request   ?

Contact Us About This Product
