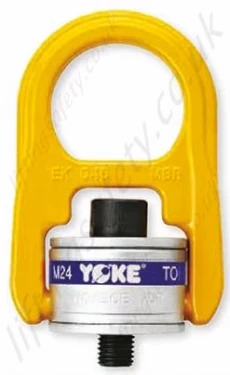

Yoke Type 204 Swivel Hoist Ring with UNC Thread and Alloy Steel Washer. (will not swivel under load)

Model:

HDHR-2824

This YOKE Swivel hoist ring with UNC thread is a heavy duty and flexible attachment lifting point. Suitable for lifting objects with no obvious attachment points, such as dies and pump and valves etc.

Quick and simple assembly, just a tapped hole is required.
Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
Manufactured from forged alloy steel, quenched and tempered.
Manufactured and tested in accordance with EN1677-1.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolts are UNC thread (ASME/ ANSI B18.31M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
Design Factor 5 : 1.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Bolts are available in GEOMET finish on request.

Dimensions and Specifications

WLL (lbs.)	M (Inch)	Threads per inch	A (Inch)	B (Inch)	D (Inch)	E (Inch)	F (Inch)	G (Inch)	Torque Ft - lbs.	Mass (lbs)
800	5/16	18 UNC	1.57	1.61	0.35	0.71	4.02	2.56	7	0.9
1000	3/8	16 UNC	1.57	1.61	0.35	0.71	4.02	2.56	12	0.9
2500	1/2	13 UNC	2.56	2.32	0.59	0.75	6.26	4.13	28	3.7
4000	5/8	11 UNC	2.56	2.32	0.59	0.74	6.26	4.13	60	4
5000	3/4	10 UNC	2.56	2.87	0.59	1.24	6.26	4.13	100	4
8000	7/8	9 UNC	3.35	2.87	0.87	1.43	8.03	5.28	160	9.3
10000	1	8 UNC	3.35	2.87	0.87	1.36	8.03	5.28	230	9.5
15000	1-1/4	7 UNC	3.95	3.15	1	2.25	8.58	6.3	470	14.5
24000	1-1/2	6 UNC	4.72	4.29	1.38	2.17	12.09	8.66	800	35.2
30000	2	4.5 UNC	4.72	4.29	1.38	3.01	12.09	8.66	1100	35.2

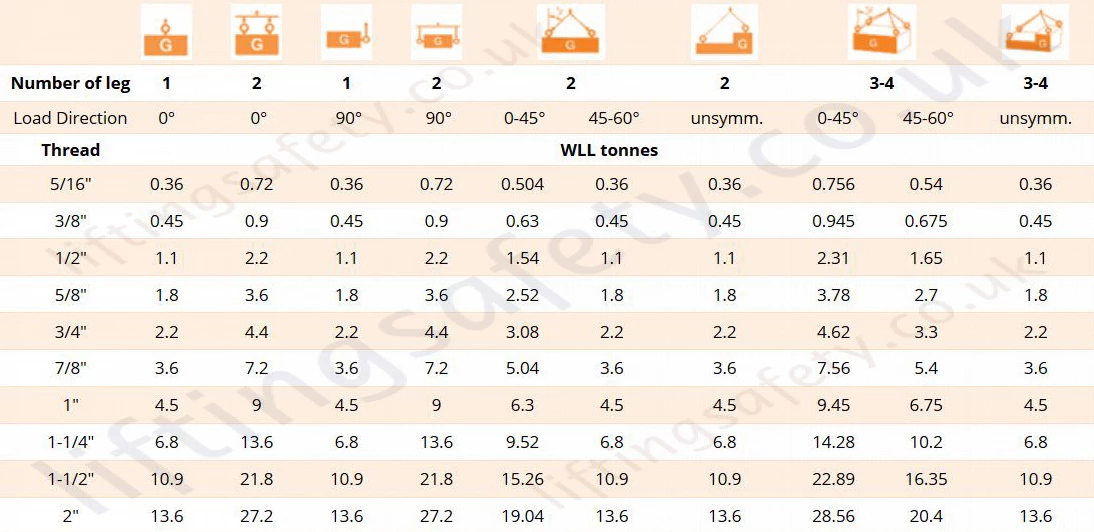

Working Load Application for Yoke Type 204 Swivel Hoist Ring with UNC Thread

Part N°	WLL (Lbs)	Torque (ft. Lbs)	Thread	Threads per inch	A (Inch)	B (Inch)	D (Inch)	E (Inch)	F (Inch)	G (Inch)	Mass (lbs)	Guide Price
2824-T18911 8-204-004	800	7	5/16	18 UNC	1.57	1.61	0.35	0.71	4.02	2.56	0.9	£ 45.50
2824-T18912 8-204-005	1000	12	3/8	16 UNC	1.57	1.61	0.35	0.71	4.02	2.56	0.9	£ 48.00
2824-T18913 8-204-010	2500	28	1/2	13 UNC	2.56	2.32	0.59	0.75	6.26	4.13	3.7	£ 53.00
2824-T18914 8-204-019	4000	60	5/8	11 UNC	2.56	2.32	0.59	0.74	6.26	4.13	4	£ 55.50
2824-T18915 8-204-021	5000	100	3/4	10 UNC	2.56	2.87	0.59	1.24	6.26	4.13	4	£ 73.00
2824-T18916 8-204-042	8000	160	7/8	9 UNC	3.35	2.87	0.87	1.43	8.03	5.28	9.3	£ 86.50
2824-T18917 8-204-045	10000	230	1	8 UNC	3.35	2.87	0.87	1.36	8.03	5.28	9.5	£ 207.00
2824-T18918 8-204-070	15000	470	1-1/4	7 UNC	3.95	3.15	1	2.25	8.58	6.3	14.5	£ 321.00
2824-T18919 8-204-125	24000	800	1-1/2	6 UNC	4.72	4.29	1.38	2.17	12.09	8.66	35.2	£ 354.00
2824-T18920 8-204-135	30000	1100	2	4.5 UNC	4.72	4.29	1.38	3.01	12.09	8.66	35.2	£ 373.50
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Quick and simple assembly, just a tapped hole is required.
Rotates through 360° and pivot 180°, rated at 100% at 90°angle.
Manufactured from forged alloy steel, quenched and tempered.
Manufactured and tested in accordance with EN1677-1.
Load rated parts are 100% magnaflux crack detected.
Individual forged parts and cap screw are traceable to Test Certification.
Bolts are UNC thread (ASME/ ANSI B18.31M).
Proof tested to 2.5 times the WLL.
Fatigue rated to 1.5 times the WLL.
Design Factor 5 : 1.
All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
Bolts are available in GEOMET finish on request.

Dimensions and Specifications

WLL (lbs.)	M (Inch)	Threads per inch	A (Inch)	B (Inch)	D (Inch)	E (Inch)	F (Inch)	G (Inch)	Torque Ft - lbs.	Mass (lbs)
800	5/16	18 UNC	1.57	1.61	0.35	0.71	4.02	2.56	7	0.9
1000	3/8	16 UNC	1.57	1.61	0.35	0.71	4.02	2.56	12	0.9
2500	1/2	13 UNC	2.56	2.32	0.59	0.75	6.26	4.13	28	3.7
4000	5/8	11 UNC	2.56	2.32	0.59	0.74	6.26	4.13	60	4
5000	3/4	10 UNC	2.56	2.87	0.59	1.24	6.26	4.13	100	4
8000	7/8	9 UNC	3.35	2.87	0.87	1.43	8.03	5.28	160	9.3
10000	1	8 UNC	3.35	2.87	0.87	1.36	8.03	5.28	230	9.5
15000	1-1/4	7 UNC	3.95	3.15	1	2.25	8.58	6.3	470	14.5
24000	1-1/2	6 UNC	4.72	4.29	1.38	2.17	12.09	8.66	800	35.2
30000	2	4.5 UNC	4.72	4.29	1.38	3.01	12.09	8.66	1100	35.2

Working Load Application for Yoke Type 204 Swivel Hoist Ring with UNC Thread

Part N°	WLL (Lbs)	Torque (ft. Lbs)	Thread	Threads per inch	A (Inch)	B (Inch)	D (Inch)	E (Inch)	F (Inch)	G (Inch)	Mass (lbs)	Guide Price
2824-T18911 8-204-004	800	7	5/16	18 UNC	1.57	1.61	0.35	0.71	4.02	2.56	0.9	£ 45.50
2824-T18912 8-204-005	1000	12	3/8	16 UNC	1.57	1.61	0.35	0.71	4.02	2.56	0.9	£ 48.00
2824-T18913 8-204-010	2500	28	1/2	13 UNC	2.56	2.32	0.59	0.75	6.26	4.13	3.7	£ 53.00
2824-T18914 8-204-019	4000	60	5/8	11 UNC	2.56	2.32	0.59	0.74	6.26	4.13	4	£ 55.50
2824-T18915 8-204-021	5000	100	3/4	10 UNC	2.56	2.87	0.59	1.24	6.26	4.13	4	£ 73.00
2824-T18916 8-204-042	8000	160	7/8	9 UNC	3.35	2.87	0.87	1.43	8.03	5.28	9.3	£ 86.50
2824-T18917 8-204-045	10000	230	1	8 UNC	3.35	2.87	0.87	1.36	8.03	5.28	9.5	£ 207.00
2824-T18918 8-204-070	15000	470	1-1/4	7 UNC	3.95	3.15	1	2.25	8.58	6.3	14.5	£ 321.00
2824-T18919 8-204-125	24000	800	1-1/2	6 UNC	4.72	4.29	1.38	2.17	12.09	8.66	35.2	£ 354.00
2824-T18920 8-204-135	30000	1100	2	4.5 UNC	4.72	4.29	1.38	3.01	12.09	8.66	35.2	£ 373.50
Pricing Currency: Not available at the moment.			Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
