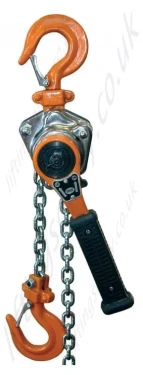

Hadef 25/05 Professional Ratchet Lever Hoist - 250kg
Small and light weight pull-lift with zinc plated load chain - Fits into every toolbox
Model:
25/05 / HPRL-4363
- Standard lifting height 1.5 m
- Zinc plated load chain
- 30cm from Hook to Lever
- Hooks with safety catch
- Small and light weight - fits into every toolbox

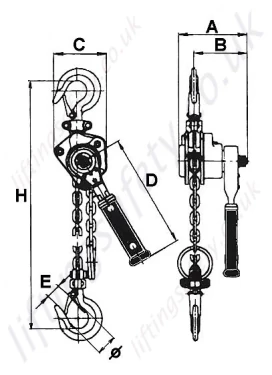

Specification & Dimensions
| Capacity (kg) | Chain Falls | Load Chain (mm) | Lever Force (daN) | Standard Lift (m) | Weight @ 1.5m Lift (kg) | Weight per additional m (kg) | Dimensions in mm | ||||||
| A | B | C | D | E | Ø | H | |||||||
| 250 | 1 | 4 X 12 | 25 | 1.5 | 2 | 0.35 | 91 | 70 | 71 | 157 | 21 | 28 | 233 |
- Standard lifting height 1.5 m
- Zinc plated load chain
- 30cm from Hook to Lever
- Hooks with safety catch
- Small and light weight - fits into every toolbox
Specification & Dimensions
| Capacity (kg) | Chain Falls | Load Chain (mm) | Lever Force (daN) | Standard Lift (m) | Weight @ 1.5m Lift (kg) | Weight per additional m (kg) | Dimensions in mm | ||||||
| A | B | C | D | E | Ø | H | |||||||
| 250 | 1 | 4 X 12 | 25 | 1.5 | 2 | 0.35 | 91 | 70 | 71 | 157 | 21 | 28 | 233 |
