Gunnebo "GrabiQ MG1-EGKN" Single Leg Chain Slings with special Master Grab (top link) & Sling Hook - Range 1.5t to 10.0t

Model:

MG1-EGKN / GGSL-4001


This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

Gunnebo pre-made single leg chain slings fitted with the unique Gunnebo MG Master Grab (grab hook styled masterlink - All-in-one top link) at the top (suspension end) and a EGKN sling hook at the load connection end.



Part no WLL (t) Master link Chain Hook Weight (kg) at 2m effective working length Chain weight (kg/m) Comp.length (mm)
MG1-EGKN 6 mm 1.5 MG-6-10 KLA-6-10 EGKN-6-10 2.2 1.0 231
MG1-EGKN 8 mm 2.5 MG-8-10 KLA-8-10 EGKN-8-10 3.8 1.7 266
MG1-EGKN 10 mm 4.0 MG-10-10 KLA-10-10 EGKN-10-10 6.6 2.7 332
MG1-EGKN 13 mm 6.7 MG-13-10 KLA-13-10 EGKN-13-10 11.7 4.4 406
MG1-EGKN 16 mm 10.0 MG-16-10 KLA-16-10 EGKN-16-10 18.5 6.7 481
  Gunnebo MG Master Grab Gunnebo Grabiq KLA Grade 10 Chain Gunnebo EGKN Sling Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ MG1-EGKN Chain Sling.

MG Master Grab

The unique all-in-one top suspension link.

Code WLL (t)
Gunnebo MG Master Grab Dimensions
L (mm)
A (mm) E (mm) H (mm) Weight (kg)
MG-6-10 1.5 145 88 60 15 0.51
MG-8-10 2.5 171 92 60 18 0.95
MG-10-10 4 211 113 75 22 1.81
MG-13-10 6.7 261 138 90 26 3.5
MG-16-10 10 311 157 105 31 6.1

KLA Grade 10 Chain

  • Heat treatment: Hardened and tempered.
    Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Bluepainted
  • Marking: 10G
Code WLL (t) Chain Ø (mm)

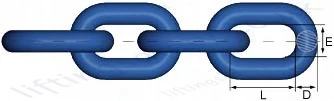

Gunnebo Grabiq KLA Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

EGKN Sling Hook

Code WLL (t)
Gunnebo EGKN Sling Hook Dimensions
L (mm) B (mm) G (mm) H (mm) Weight (kg)
EGKN-6-10 1.5 86 24 17 20 0.34
EGKN-8-10 2.5 95 28 17 23 0.53
EGKN-10-10 4 121 35 23 31 1.02
EGKN-13-10 6.7 145 42 28 38 2.27
EGKN-16-10 10 170 52 36 46 3.8
EGKN-20-10 16 209 61 42 60 7.6

Part N° Working Load Limit Master link Chain Hook Weight (kg) at 2m effective working length Chain weight (kg/m) Component length (mm) Reach Unit Price Quantity
4001-T8380
MG1-EGKN-6mm
1500kg MG-6-10 KLA-6-10 EGKN-6-10 2.2 1.0 231 2m Quote Required
4001-T8381
MG1-EGKN-8mm
2500kg MG-8-10 KLA-8-10 EGKN-8-10 3.8 1.7 266 2m Quote Required
4001-T8382
MG1-EGKN-10mm
4000kg MG-10-10 KLA-10-10 EGKN-10-10 6.6 2.7 332 2m Quote Required
4001-T8383
MG1-EGKN-13mm
6700kg MG-13-10 KLA-13-10 EGKN-13-10 11.7 4.4 406 2m Quote Required
4001-T8384
MG1-EGKN-16mm
10000kg MG-16-10 KLA-16-10 EGKN-16-10 18.5 6.7 481 2m Quote Required
Add to Quote Basket   ?

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

Gunnebo pre-made single leg chain slings fitted with the unique Gunnebo MG Master Grab (grab hook styled masterlink - All-in-one top link) at the top (suspension end) and a EGKN sling hook at the load connection end.



Part no WLL (t) Master link Chain Hook Weight (kg) at 2m effective working length Chain weight (kg/m) Comp.length (mm)
MG1-EGKN 6 mm 1.5 MG-6-10 KLA-6-10 EGKN-6-10 2.2 1.0 231
MG1-EGKN 8 mm 2.5 MG-8-10 KLA-8-10 EGKN-8-10 3.8 1.7 266
MG1-EGKN 10 mm 4.0 MG-10-10 KLA-10-10 EGKN-10-10 6.6 2.7 332
MG1-EGKN 13 mm 6.7 MG-13-10 KLA-13-10 EGKN-13-10 11.7 4.4 406
MG1-EGKN 16 mm 10.0 MG-16-10 KLA-16-10 EGKN-16-10 18.5 6.7 481
  Gunnebo MG Master Grab Gunnebo Grabiq KLA Grade 10 Chain Gunnebo EGKN Sling Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ MG1-EGKN Chain Sling.

MG Master Grab

The unique all-in-one top suspension link.

Code WLL (t)
Gunnebo MG Master Grab Dimensions
L (mm)
A (mm) E (mm) H (mm) Weight (kg)
MG-6-10 1.5 145 88 60 15 0.51
MG-8-10 2.5 171 92 60 18 0.95
MG-10-10 4 211 113 75 22 1.81
MG-13-10 6.7 261 138 90 26 3.5
MG-16-10 10 311 157 105 31 6.1

KLA Grade 10 Chain

  • Heat treatment: Hardened and tempered.
    Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Bluepainted
  • Marking: 10G
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq KLA Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

EGKN Sling Hook

Code WLL (t)
Gunnebo EGKN Sling Hook Dimensions
L (mm) B (mm) G (mm) H (mm) Weight (kg)
EGKN-6-10 1.5 86 24 17 20 0.34
EGKN-8-10 2.5 95 28 17 23 0.53
EGKN-10-10 4 121 35 23 31 1.02
EGKN-13-10 6.7 145 42 28 38 2.27
EGKN-16-10 10 170 52 36 46 3.8
EGKN-20-10 16 209 61 42 60 7.6

Part N° Working Load Limit Master link Chain Hook Weight (kg) at 2m effective working length Chain weight (kg/m) Component length (mm) Reach Unit Price Quantity
4001-T8380
MG1-EGKN-6mm
1500kg MG-6-10 KLA-6-10 EGKN-6-10 2.2 1.0 231 2m Quote Required
4001-T8381
MG1-EGKN-8mm
2500kg MG-8-10 KLA-8-10 EGKN-8-10 3.8 1.7 266 2m Quote Required
4001-T8382
MG1-EGKN-10mm
4000kg MG-10-10 KLA-10-10 EGKN-10-10 6.6 2.7 332 2m Quote Required
4001-T8383
MG1-EGKN-13mm
6700kg MG-13-10 KLA-13-10 EGKN-13-10 11.7 4.4 406 2m Quote Required
4001-T8384
MG1-EGKN-16mm
10000kg MG-16-10 KLA-16-10 EGKN-16-10 18.5 6.7 481 2m Quote Required
Add to Quote Basket   ?
