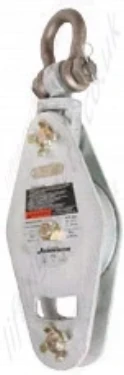

Gunnebo Galvanised Derrick Block, Range 4,000kg to 12,000kg

Gunnebo Galvanised Derrick Block, Range 4,000kg to 12,000kg

For Wire Rope 10mm to 14mm, Non-CE

Model:

GGDB-4383

Interlocking internal design
4 - 12 tonnes WLL
Large knock-off handles
Standard galvanized finish
For lifting materials
Handling slots in the body
R-Pin retainers

Specifications

Part N°	WLL (t)	Wire Rope Diameter (mm)	Sheave Diameter (mm)	Weight (kg)
MHSB4S8TS	4	10-13	200	15
MHSB12S10TS	12	13-14	250	37.6
MHSB12514TS	14	16-19	356	58
MHSB20514TS	20	19-22	352	102

Part N°	WLL (t)	Wire Rope Diameter (mm)	Sheave Diameter (mm)	Weight (kg)	Unit Price
4383-T22838 MHSB4S8TS	4	10-13	200	15	Quote Required
4383-T22839 MHSB12S10TS	12	13-14	250	37.6	Quote Required
4383-T23141 MHSB12514TS	14	16-19	356	58	Quote Required
4383-T23142 MHSB20514TS	20	19-22	352	102	Quote Required
Add To Quote Request × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Description
Pricing

Interlocking internal design
4 - 12 tonnes WLL
Large knock-off handles
Standard galvanized finish
For lifting materials
Handling slots in the body
R-Pin retainers

Specifications

Part N°	WLL (t)	Wire Rope Diameter (mm)	Sheave Diameter (mm)	Weight (kg)
MHSB4S8TS	4	10-13	200	15
MHSB12S10TS	12	13-14	250	37.6
MHSB12514TS	14	16-19	356	58
MHSB20514TS	20	19-22	352	102

Part N°	WLL (t)	Wire Rope Diameter (mm)	Sheave Diameter (mm)	Weight (kg)	Unit Price
4383-T22838 MHSB4S8TS	4	10-13	200	15	Quote Required
4383-T22839 MHSB12S10TS	12	13-14	250	37.6	Quote Required
4383-T23141 MHSB12514TS	14	16-19	356	58	Quote Required
4383-T23142 MHSB20514TS	20	19-22	352	102	Quote Required
