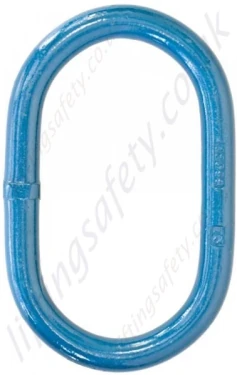

Grade 8 Master Link - for use with 6mm to 36mm Lifting Chain

High quality grade 'T' (8 / 80) master link for use with single leg or double leg chain slings.

Model:

G8ML-3424


Description

+

Our grade 8 / 80 master links are manufactured from alloy steel in accordance with EN1677-4.

All of these master links are individually proof load tested to 2.5 times working load limit in accordance with EN1677.

Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4 and are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit, reductions apply up to 400°C.

Dimensions & Specifications

Part N° Chain Size (mm) - Single Leg Chain Size (mm) - Double Leg WLL (tonnes) Weight (kg) A (mm) B (mm) C (mm)
3424-T6885 6, 7 and 8 6 2.8 0.4 13 110 60
3424-T6886 10 7 and 8 4.2 0.6 16 140 70
3424-T6887 13 10 6.7 1.2 20 160 90
3424-T6888 16 13 11.8 2.4 25.5 200 110
3424-T6889 20 16 17.0 5.0 32 270 140
3424-T6890 22 20 22.7 6.8 36 280 150
3424-T6891 26 22 28.1 8.5 40 280 155
3424-T6892 32 26 38.3 12.2 45 320 175
3424-T6893 36 32 45.0 16.6 50 350 195

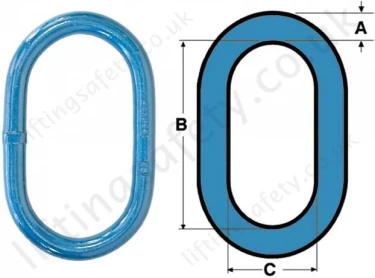

Master Link Dimensional Drawing
Pricing

+
Part N° Chain Size (mm) - Single Leg Chain Size (mm) - Single Leg Chain Size (mm) - Double Leg WLL (t) Weight (kg) Unit Price Quantity
3424-T6885 MA0806ML 6, 7 and 8 6 2.80 0.4 £  6.56
3424-T6886 MA1008ML 10 7 and 8 4.20 0.6 £  8.82
3424-T6887 MA1310ML 13 10 6.70 1.2 £  14.27
3424-T6888 MA1613ML 16 13 11.80 2.4 £  23.10
3424-T6889 MA2016ML 20 16 17.00 5.0 £  44.10
3424-T6890 HA36ML 22 20 23.00 6.8 £  44.22
3424-T6891 HA40ML 26 22 28.10 8.5 £  73.16
3424-T6892 HA45ML 32 26 38.30 12.2 £  94.43
3424-T6893 HA50ML 36 32 45.00 16.6 £  136.50
Add to Quote Basket   ?

Our grade 8 / 80 master links are manufactured from alloy steel in accordance with EN1677-4.

All of these master links are individually proof load tested to 2.5 times working load limit in accordance with EN1677.

Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4 and are suitable for use in a temperature range of -40°C up to 200°C without reduction in working load limit, reductions apply up to 400°C.

Dimensions & Specifications

Part N° Chain Size (mm) - Single Leg Chain Size (mm) - Double Leg WLL (tonnes) Weight (kg) A (mm) B (mm) C (mm)
3424-T6885 6, 7 and 8 6 2.8 0.4 13 110 60
3424-T6886 10 7 and 8 4.2 0.6 16 140 70
3424-T6887 13 10 6.7 1.2 20 160 90
3424-T6888 16 13 11.8 2.4 25.5 200 110
3424-T6889 20 16 17.0 5.0 32 270 140
3424-T6890 22 20 22.7 6.8 36 280 150
3424-T6891 26 22 28.1 8.5 40 280 155
3424-T6892 32 26 38.3 12.2 45 320 175
3424-T6893 36 32 45.0 16.6 50 350 195
Master Link Dimensional Drawing
Part N° Chain Size (mm) - Single Leg Chain Size (mm) - Single Leg Chain Size (mm) - Double Leg WLL (t) Weight (kg) Unit Price Quantity
3424-T6885 MA0806ML 6, 7 and 8 6 2.80 0.4 £  6.56
3424-T6886 MA1008ML 10 7 and 8 4.20 0.6 £  8.82
3424-T6887 MA1310ML 13 10 6.70 1.2 £  14.27
3424-T6888 MA1613ML 16 13 11.80 2.4 £  23.10
3424-T6889 MA2016ML 20 16 17.00 5.0 £  44.10
3424-T6890 HA36ML 22 20 23.00 6.8 £  44.22
3424-T6891 HA40ML 26 22 28.10 8.5 £  73.16
3424-T6892 HA45ML 32 26 38.30 12.2 £  94.43
3424-T6893 HA50ML 36 32 45.00 16.6 £  136.50
Add to Quote Basket   ?
