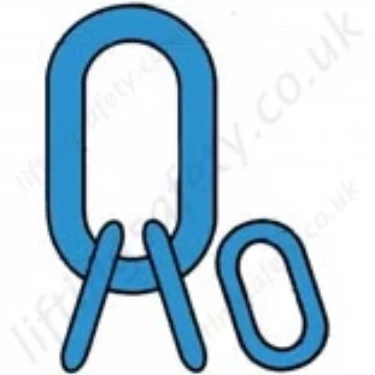

Grade 10 Sub-Assemblies for use with 6mm to 26mm Lifting Chain

Sub assemblies for 3 and 4 leg chain slings.

Model:

G1S-3486


Dimensions and Specifications

Chain Size (mm) Working Load Limit (tonnes) Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
6 2.90 1.45 16 140 70 13 110 60
7 and 8 5.30 2.00 20 160 90 16 140 70
10 8.40 4.51 25.5 200 110 20 160 90
13 14.00 7.61 32 270 140 26 200 110
16 21.00 12.42 40 280 155 32 270 140
20 28.10 23.50
22 38.30 32.30
26 45.00 63.90
Dimensional Drawing



Part N° Description Chain Size (mm) Working Load Limit (tonnes) Weight (kg) Unit Price Quantity
3486-T7117 MA06SA 6 2.9 1.45 £  19.18
3486-T7118 MA08SA 7 & 8 5.3 2 £  27.75
3486-T7119 MA10SA 10 8.4 4.51 £  35.28
3486-T7120 MA13SA 13 14 7.61 £  57.88
3486-T7121 MA16SA 16 21 12.42 £  109.15
3486-T7172 HA45QA 20 38.3 23.5 £  212.94
3486-T7173 HA50QA 22 45 32.3 £  343.98
3486-T23195 HA65QA 26 75 63.9 £  811.20
Add to Quote Basket   ?

Dimensions and Specifications

Chain Size (mm) Working Load Limit (tonnes) Weight (kg) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
6 2.90 1.45 16 140 70 13 110 60
7 and 8 5.30 2.00 20 160 90 16 140 70
10 8.40 4.51 25.5 200 110 20 160 90
13 14.00 7.61 32 270 140 26 200 110
16 21.00 12.42 40 280 155 32 270 140
20 28.10 23.50
22 38.30 32.30
26 45.00 63.90
Dimensional Drawing



Part N° Description Chain Size (mm) Working Load Limit (tonnes) Weight (kg) Unit Price Quantity
3486-T7117 MA06SA 6 2.9 1.45 £  19.18
3486-T7118 MA08SA 7 & 8 5.3 2 £  27.75
3486-T7119 MA10SA 10 8.4 4.51 £  35.28
3486-T7120 MA13SA 13 14 7.61 £  57.88
3486-T7121 MA16SA 16 21 12.42 £  109.15
3486-T7172 HA45QA 20 38.3 23.5 £  212.94
3486-T7173 HA50QA 22 45 32.3 £  343.98
3486-T23195 HA65QA 26 75 63.9 £  811.20
Add to Quote Basket   ?

Contact Us About This Product
