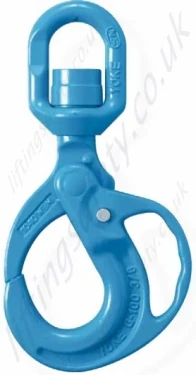

Yoke Grade 10 Grip Safe Eye Self Locking Swivel Hook - Ball Bearing Type

Yoke Grade 10 Grip Safe Eye Self Locking Swivel Hook - Ball Bearing Type

Gripsafe grade 10/100 eye type self-locking swivel hook with positioning and trigger release handle to BS EN 1677-1+3.

Model:

G-4431

Yoke Grade 10 Grip Safe Eye Self Locking Swivel Hook - Ball Bearing Type

Gripsafe Grade 10 Swivel Eye Hook Gripsafe Release Example

The self locking hook has been in use through out industry for many years and it’s simple fail safe method of load retention has made it the most commonly specified hook.  The Gripsafe self locking hook is an innovative safety development on this well proven and widely used lifting hook.

Grade 100 forged lifting components are manufactured from alloy steel in accordance with EN1677.

The Yoke Gripsafe eye style swivel hook allows the operator to release the trigger button and open the hook without placing his or her fingers inside the load bearing part of the hook. This eliminates the inherent hazard of finger nips when operating the hook making the Gripsafe the safest all round hook available today.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677.

Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4. Hackett Grade 100 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.

Testing according to ASTM A952/A - DIN PAS 1061.

Will perform a full swivel while under load.

Specifications

Part CodeW.L.L. TonnesChain Size mmDimensional ImageK mmW mmP mmO mmA mmB mmT mmD mmH mmN.W. Kg
X-952N-10 4.0 10
Gripsafe Grade 10 Swivel Eye Hook Dimensions
 225 139 71 48 41 34 27 16 31 2.4
X-952N-13 6.7 13 285 174 80 57 46 44 34 21 39 5.2
X-952N-16 10.0 16 345 212 114 78 61 50 39 23 47 8.4
X-952N-20 16.0 20 433 250 127 91 74 82 54 25 56 14.5
X-952N-22 20.0 22 475 260 151 105 97 95 56 33 59 19.9

Pricing

Unfortunately, this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

Contact Us About This Product
Description

The self locking hook has been in use through out industry for many years and it’s simple fail safe method of load retention has made it the most commonly specified hook.  The Gripsafe self locking hook is an innovative safety development on this well proven and widely used lifting hook.

Grade 100 forged lifting components are manufactured from alloy steel in accordance with EN1677.

The Yoke Gripsafe eye style swivel hook allows the operator to release the trigger button and open the hook without placing his or her fingers inside the load bearing part of the hook. This eliminates the inherent hazard of finger nips when operating the hook making the Gripsafe the safest all round hook available today.

All forged components are individually magnaflux crack detected after heat treatment, they are then individually proof load tested to 2.5 times working load limit in accordance with EN1677.

Only components fully compliant with all aspects of EN1677 can be used in chain slings certified to EN818-4. Hackett Grade 100 lifting components are suitable for use in a temperature range of -40C up to 200C without reduction in working load limit.

Testing according to ASTM A952/A - DIN PAS 1061.

Will perform a full swivel while under load.

Specifications

Part CodeW.L.L. TonnesChain Size mmDimensional ImageK mmW mmP mmO mmA mmB mmT mmD mmH mmN.W. Kg
X-952N-10 4.0 10
Gripsafe Grade 10 Swivel Eye Hook Dimensions
 225 139 71 48 41 34 27 16 31 2.4
X-952N-13 6.7 13 285 174 80 57 46 44 34 21 39 5.2
X-952N-16 10.0 16 345 212 114 78 61 50 39 23 47 8.4
X-952N-20 16.0 20 433 250 127 91 74 82 54 25 56 14.5
X-952N-22 20.0 22 475 260 151 105 97 95 56 33 59 19.9
