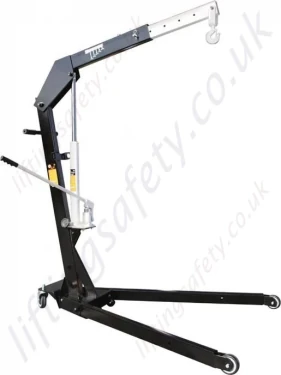

Yale EC Folding Engine Crane

• The special hydraulic long rams are equipped with:
• a. Only the 4417 has a MagicLift pumping mechanism for speedy lift.
• b. A built-in by-pass mechanism.
• Heavy duty welded construction with rugged reïnforced tubular steel.
• Four durable PU wheels for easy moving.
• User-friendly 270 degrees wide range swiveling angle for operating handle.
• HTR (Hold-To-Run) mechanism, designed to assure users’ maximum safety when the valve is released.
• Unique folding design helps storage after using in a space-limited work shop.
• 270 degree Wide Range Swiveling Angle Hand Pump Handle
• Long rams have internal load-limiting device to protect crane and user from overload.
• Metered release valve enables operator to lower boom at a controlled rate of speed.

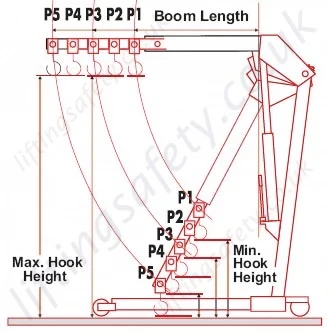

Crane Specifications

Boom Position	Capacity (kg)	Min Hook Height (mm)	Max Hook Height (mm)	Boom Length (mm)
P1	1000	439	1978	620
P2	900	341	2021	720
P3	800	243	2075	820
P4	700	145	2131	920
P5	600	0	2170	1020

Dimensional Specifications

A (mm)	B (mm)	F (mm)	L (mm)	M (mm)	N (mm)	O (mm)	Nett Weight	Gross Weight
1460	1525	570	1060	1200	350	100	83.4kg	90.6kg
