Crosby Spectrum 4 (Grade 4 / 40) High Test Lifting Chain - Chain Diameter 6mm to 19mm - WLL 1180kg to 7350kg

Crosby Spectrum 4 (Grade 4 / 40) High Test Lifting Chain - Chain Diameter 6mm to 19mm - WLL 1180kg to 7350kg

Crosby High Test Chain.

Model:

Crosby SPECTRUM 4 / CHTC-2461

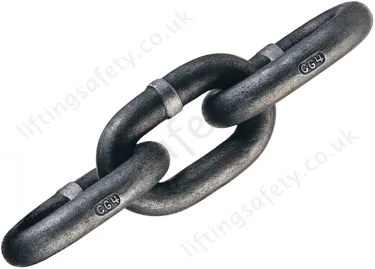

Made from Carbon Steel,this chain has a Minimum Ultimate load is 3 times the Working Load Limit and is Permanently embossed with CG® (Crosby Group) and 4 (Grade). Self colored finish and supplied in a fiber drum.

Metric Dimensions & Specifications

Chain Size (mm)	Working Load Limit (t)*	Meters Per Drum	Weight Per 30 m (kg)	Drum Stock No. S.C.	1/2 Drum Stock No. S.C.
6	1.18	244	31.8	272788	272895
8	1.77	168	48.1	272797	272902
10	2.45	122	69.9	272804	272911
11	3.27	91	94.8	272813	272920
13	4.17	61	121	272822	272939
16	5.90	46	182	272831	272948
19	7.35	30	257	272840	272957

Imperial Dimensions & Specifications

Chain Size (in.)	Working Load Limit (lbs.)*	Feet Per Drum	Weight Per 100 Feet (lbs.)	Drum Stock No. S.C.	1/2 Drum Stock No. S.C.
1/4	2600	800	70	272788	272895
5/16	3900	550	106	272797	272902
3/8	5400	400	154	272804	272911
7/16	7200	300	209	272813	272920
1/2	9200	200	267	272822	272939
5/8	13000	150	402	272831	272948
3/4	20200	100	567	272840	272957

High Test Chain - SPECTRUM 4® 100 Pound Pail

Metric Dimensions

Chain Size (mm)	Weight Per Pail (kg)	Meters Per Pail	Stock No. S.C.
6	42.2	41	273000
8	43.1	27	273019
10	44.5	20	273028

*Proof Loaded at 2 times the Working Load Limit.

Imperial Dimensions

Chain Size (in.)	Weight Per Pail (lbs.)	Feet Per Pail	Stock No. S.C.
1/4	93	134	273000
5/16	95	90	273019
3/8	98	64	273028

*Spectrum 4® High Test Chain is not recommended for overhead lifting. For these applications, Spectrum 8® or Spectrum 10® Alloy chain should be used

As advertised in Crosby General Catalogue 2009 Page 220, and previously in Crosby General Catalogue 2006 Page 212.

Crosby-catalogue-page-number-220.pdf

(approx. 0.5Mb)

Container

Part N°	Chain Size (mm)	Working Load Limit (t)*	Meters Per Drum	Weight Per 30 m (kg)	Guide Price
2461-T1259 272788	6	1.18	244	31.8	Quote Required
2461-T1260 272797	8	1.77	168	48.1	Quote Required
2461-T1261 272804	10	2.45	122	69.9	Quote Required
2461-T1262 272813	11	3.27	91	94.8	Quote Required
2461-T1263 272822	13	4.17	61	121	Quote Required
2461-T1264 272831	16	5.90	46	182	Quote Required
2461-T1265 272840	19	7.35	30	257	Quote Required
