Codipro "DSS" Double Swivel Shackle - Metric or Imperial Threads - Capacities from 4,500 Kg to 32,100 kg

Model:

DSS / CDSS-4508


Description

+

This page has now expired. Please view our full range of Swivel Eye Bolts Rotating Lifting & Lashing Points or Contact us with your requirements for a suitable alternative.

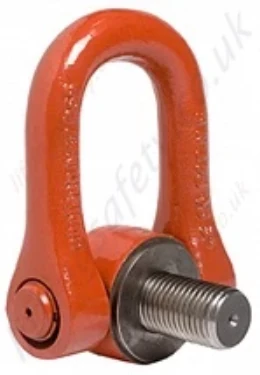

With a WLL of up to 50 tons, the double swivel shackle DSS has been especially designed for liftings and turnings of heavy loads.

The lifting ring DSS also has a very large shackle.

Features

  • Safety factor of 4 or 5, according to the proposed WLL
  • Double articulation allows it to line up perfectly with the sling
  • Compact and ergonomic
  • Tightening by Allen key
  • From M24 to M100 as standard; for loads from 4.5 t to 32.1 t
  • From UNC 1¼" to UNC 2" as standard; for loads from 14,000 lbs to 50,000 lbs
  • Other variants of fitting bolts on request
  • Also available in stainless steel and "female" version

Dimensions & Specification

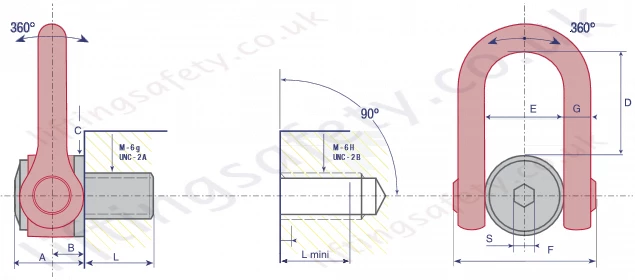

Codipro Dss Dimensions

Model WLL Safety factor Diameter Standard L1 N.m FootLBS S (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Weight (Kg)
DSS M 24 4.5t 5 M24 (x3) 36 160 19 61 31 70 104 73 145 29 5.4
DSS M 30 7.3t 5 M30 (x3.5) 45 250 19 61 31 70 104 73 145 29 5.5
DSS M 33 8t 5 M33 (x3.5) 50 250 19 61 31 70 104 73 145 29 5.5
DSS M 36 10t 5 M36 (x4) 54 320 19 61 31 70 104 73 145 29 5.5
DSS M 36x3 10t 5 M36 (x3) 54 320 19 61 31 70 104 73 145 29 5.5
DSS M 39 10t 5 M39 (x4) 58 320 19 61 31 70 104 73 145 29 5.7
DSS M 42 12.5t 5 M42 (x4.5) 63 400 19 61 31 70 104 73 145 29 5.8
DSS M 42x3 15.5t 5 M42 (x3) 63 400 19 61 31 70 104 73 145 29 5.8
DSS M 45 15t 4 M45 (x4.5) 63 400 19 61 31 70 104 73 145 29 5.9
DSS M 48 20t 4 M48 (x5) 68 600 19 79 38 90 125 91 184 36 11
DSS M 48x3 20t 4 M48 (x3) 68 600 19 79 38 90 125 91 184 36 11
DSS M 48x4 20t 4 M48 (x4) 68 600 19 79 38 90 125 91 184 36 11
DSS M 52 20t 4 M52 (x5) 68 600 19 79 38 90 125 91 184 36 11.2
DSS M 56 25t 4 M56 (x5.5) 78 600 19 79 38 90 125 91 184 36 11.3
DSS M 56x4 25t 4 M56 (x4) 78 600 19 79 38 90 125 91 184 36 11.4
DSS M 64 32.1t 4 M64 (x6) 90 600 19 79 38 95 125 91 184 36 12.2
DSS M64x4 32.1t 4 M64 (x4) 90 600 19 79 38 95 125 91 184 36 12.2
DSS M 72 25t 4 M72 (x6) 90 600 19 79 38 95 125 91 184 36 14
DSS M 72x4 25t 4 M72 (x4) 90 600 19 79 38 95 125 91 184 36 14
DSS M 80 32.1t 4 M80 (x6) 90 600 19 79 38 95 125 91 184 36 15
DSS M 90 32.1t 4 M90 (x6) 90 600 19 79 38 95 125 91 184 36 15.5

DSS U 100 10,000 LBS 5 UNC 1"-8 36 160 19 61 31 70 104 73 145 29 16.5
DSS U 125 14,000 LBS 5 UNC 1"1/-7 45  200  F.L 3/4" 61 31 70 104 73 145 29 5.4
DSS U 138 20,000 LBS 5 UNC 1"3/8-6 54  300 F.L 3/4" 61 31 70 104 73 145 29 5.4
DSS U 150 20,000 LBS 5 UNC 1"1/2-6 54  300F.L 3/4" 61 31 70 104 73 145 29 5.4
DSS U 200 50,000 LBS 4 UNC 2"-4 1/2 76  450F.L 3/4" 79 38 90 125 91 184 33 11.1
DSS U 250 55,000 LBS 4 UNC 2"1/2-4 90 600 19 79 38 95 125 91 184 36 12.2
