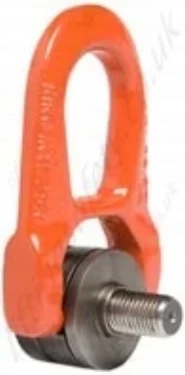

The double swivel ring DSR has been especially designed to guarantee liftings under load.

Thanks to the centring system (+C), the resistance of the axis is reinforced, when the swivel ring is fixed laterally on the charge to load.

Features

  • Double articulation allows it to line up perfectly with the sling
  • Two ways of tightening: either by open-ended spanner or by Allen key
  • From M8 to M30 as standard; for loads from 0.3 t to 6.3 t
  • From UNC 3/8" to UNC 1" as standard; for loads from 1,200 lbs to 10,000 lbs
  • Other variants of fitting bolts on request
  • Equipped with the patented centring system

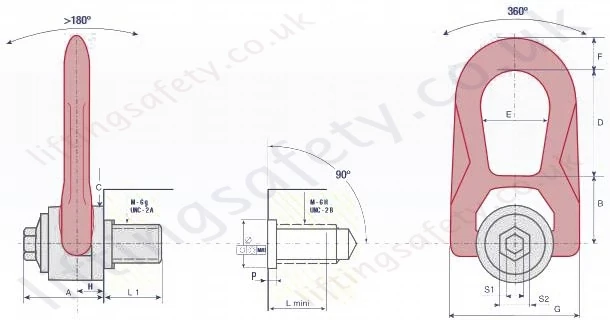

Dimensions & Specifications

Dimensions

Reference WLL Safety factor Diameter ø P Standard L1 (mm) N.m FootLBS S1 (mm) S2 (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Weight (Kg)
DRS+C M 4 0.05t  5 M4 (x0.7) 16 +0,25 0 3 +1 +0,5 15 2 3   33 30 30 38 27 14 53 9,5 0,3
DSR+C M 5  0.075t  5 M5 (x0.8) 16 +0,25 0 3 +1 +0,5 15 3 4   33 30 30 38 27 14 53 9,5 0,3
DRS+C M 6 0.1t  5 M6 (x1) 16 +0,25 0 3 +1 +0,5 15 4 5   33 30 30 38 27 14 53 9,5 0,3
DRS+C M 8 0.5t  5 M8 (x1.25) 16 +0,25 0 3 +1 +0,5 14 6 8 16 33 30 30 38 27 14 53 9,5 0,3
DRS+C M 10 0.8t  5 M10 (x1.50) 20 +0,25 0 3 +1 +0,5 17 10 8 16 33 30 30 38 27 14 53 9,5 0,3
DRS+C M 12 1.2t  5 M12 (x1.75) 20 +0,25 0 3 +1 +0,5 21 15 8 16 33 30 30 38 27 14 53 9,5 0,3
DRS+C M 14 1.3t  5 M14 (x2) 20 +0,25 0 3 +1 +0,5 23 30 8 20 45 42 45 54 38 17 76 13 0,9
DRS+C M 16 2t 5 M16 (x2) 20 +0,25 0 3 +1 +0,5 27 50 8 20 45 42 45 54 38 17 76 13 0,9
DRS+C M 18 2t 5 M18 (x2.5) 30 +0,30 0 3 +1 +0,5 27 70 8 20 45 42 45 54 38 17 76 13 0,9
DRS+C M 20 2.7t 5 M20 (x2.5) 30 +0,30 0 3 +1 +0,5 30 100 8 20 45 42 45 54 38 17 76 13 0,9
DRS+C M 22 3t 5 M22 (x2.5) 30 +0,30 0 4 +1 +0,5 33 120 14 24 62 55 60 83 55 25 117 19 2,6
DRS+C M 24 5t 5 M24 (x3) 30 +0,30 0 4 +1 +0,5 36 160 14 24 62 55 60 83 55 25 117 19 2,6
DRS+C M 27 5 t 5 M27 (x3) 36 +0,30 0 4 +1 +0,5 40 200 14 24 62 55 60 83 55 25 117 19 2,7
DRS+C M 30 6.3t 5 M30 (x3.25) 36 +0,30 0 4 +1 +0,5 45 250 14 24 62 55 60 83 55 25 117 19 2,7

DSR+C U 025 330 LBS 5 UNC 1/4"-20 16 +0,25 0 3 +1 +0,5 13 3 F.L 3/16’’   32 30 30 38 27 14 53 9,5 0,3
DSR+C U 516 650 LBS 5 UNC 5/16"-18 20 +0,25 0 3 +1 +0,5 15 7 F.L 5/16’’ 5/8’’ 33 30 30 38 27 14 53 9,5 0,3
DSR+C U 038 1,200 LBS 5 UNC 3/8"-16 20 +0,25 0 3 +1 +0,5 17 8 F.L 5/16’’ 5/8’’ 33 30 30 38 27 14 53 9,5 0,3
DSR+C U 050 2,200 LBS 5 UNC 1/2"-13 20 +0,25 0 3 +1 +0,5 21 12 F.L 5/16’’ 5/8’’ 33 30 30 38 27 14 53 9,5 0,3
DSR+C U 058 3,800 LBS 5 UNC 5/8"-11 20 +0,30 0 3 +1 +0,5 27 40 F.L 5/16’’ 20 45 42 45 54 38 17 76 13 0,9
DSR+C U 075 5,500 LBS 5 UNC 3/4"-10 30 +0,30 0 3 +1 +0,5 30 80 F.L 5/16’’ 20 45 42 45 54 38 17 76 13 0,9
DSR+C U078 6,600 LBS 5 UNC 7/8"-9 30 +0,30 0 4 +1 +0,5 33 100 F.L 9/16’’ 24 62 55 60 83 55 25 117 19 2,5
DSR+C U100 10,000 LBS 5 UNC 1"-8 30 +0,30 0 4 +1 +0,5 36 125 F.L 9/16’’ 24 62 55 60 83 55 25 117 19 2,6
