Forklift Mounted Hydraulic Super Scoop Attachment

Forklift Mounted Hydraulic Super Scoop Attachment

Fork truck mounting hydraulic scoop tipping bucket. Connects to forklift auxiliary hydraulics. Options from 200 litre to 500 litres.

Model:

HSS-628

Forklift Mounted Hydraulic Super Scoop Attachment

Hydraulic Scoop Bucket Fork Truck Attachment Hydraulic Fork Truck Bucket
More from:
Lifting Safety

Underslung Hydraulic Action Tipping Scoop Forklift Attachment

Hydraulic tipping forklift scoop that requires an auxiliary hydraulic valve on the forklift truck to operate (hoses not supplied).

A compact design with easy filling characteristics and good manoeuvrability - this forklift truck attachment is ideal for handling sand, gravel and aggregate.

Manufactured from robust and durable heavy-duty thick steel, and safely and securely attached to the FLT by heel pins, this hydraulic tipping bucket has an under-slung design, which positions the scoop bucket close to the forklift. The benefit of this under-slung design is that smaller forklifts with smaller lifting capacities can be used, as the load centre (distance from truck to attachment) is kept to a minimum.

Scoop Features

  • Hydraulic operation allows the scoop to be tipped and operated from within the truck cab - speeding up operations, increasing productivity and adding safety because the driver can remain seated at all times.
  • Strong compact design for durability and long service life.
  • Quick fitting. Hoses not included.
  • Simple mechanical operation offers low maintenance requirements and lower servicing costs.
  • Heel pin retention for a safe and secure fitting to the forklift truck.
  • UKCA and CE marked - Supplied with a Declaration of Conformity as standard.

Dimensional Information

Part Number Volumetric Capacity C of G min. (mm) C of G max. (mm) Load Centre (mm) A - Bucket Height B - Bucket Width C - Bucket Depth D - Pocket Length E - Fork Spread Max Fork Size
628-T12560 0.2m³ 500 762 800 505mm 800mm 930mm 645mm 665mm 120 x 50mm
628-T12561 0.4m³ 660 922 1000 608mm 1000mm 1170mm 645mm 685mm 150 x 60mm
628-T12562 0.5m³ 660 922 1250 608mm 1250mm 1170mm 645mm 685mm 150 x 60mm

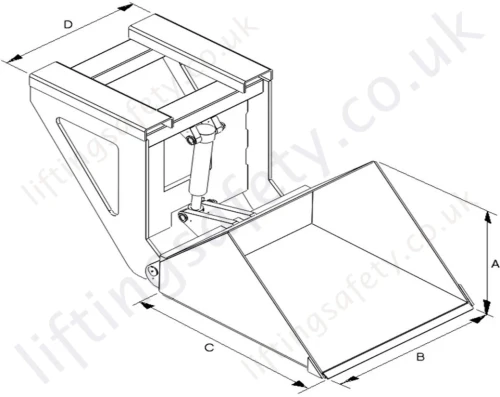

Dimensional Drawing

Part N° Capacity (Cubic Metres) Safe Working Load Min. Truck Capacity (kg) Bucket Width (mm) Bucket Height (mm) Bucket Depth (mm) Weight (kg) Max. Fork Size (mm) Unit Price (Ex. VAT) Quantity
628-T12560 0.20 (200 litres) 300kg 1500 800 505 930 200 120 x 50 £3,211.87
628-T12561 0.40 (400 litres) 600kg 2000 1000 608 1170 253 150 x 60 £3,785.62
628-T12562 0.50 (500 litres) 750kg 2000 1250 608 1170 310 150 x 60 £4,359.37
Availability Usually 10-14 Days
Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Underslung Hydraulic Action Tipping Scoop Forklift Attachment

Hydraulic tipping forklift scoop that requires an auxiliary hydraulic valve on the forklift truck to operate (hoses not supplied).

A compact design with easy filling characteristics and good manoeuvrability - this forklift truck attachment is ideal for handling sand, gravel and aggregate.

Manufactured from robust and durable heavy-duty thick steel, and safely and securely attached to the FLT by heel pins, this hydraulic tipping bucket has an under-slung design, which positions the scoop bucket close to the forklift. The benefit of this under-slung design is that smaller forklifts with smaller lifting capacities can be used, as the load centre (distance from truck to attachment) is kept to a minimum.

Scoop Features

  • Hydraulic operation allows the scoop to be tipped and operated from within the truck cab - speeding up operations, increasing productivity and adding safety because the driver can remain seated at all times.
  • Strong compact design for durability and long service life.
  • Quick fitting. Hoses not included.
  • Simple mechanical operation offers low maintenance requirements and lower servicing costs.
  • Heel pin retention for a safe and secure fitting to the forklift truck.
  • UKCA and CE marked - Supplied with a Declaration of Conformity as standard.

Dimensional Information

Part Number Volumetric Capacity C of G min. (mm) C of G max. (mm) Load Centre (mm) A - Bucket Height B - Bucket Width C - Bucket Depth D - Pocket Length E - Fork Spread Max Fork Size
628-T12560 0.2m³ 500 762 800 505mm 800mm 930mm 645mm 665mm 120 x 50mm
628-T12561 0.4m³ 660 922 1000 608mm 1000mm 1170mm 645mm 685mm 150 x 60mm
628-T12562 0.5m³ 660 922 1250 608mm 1250mm 1170mm 645mm 685mm 150 x 60mm

Dimensional Drawing
