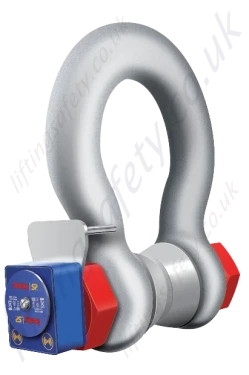

Straightpoint Wireless Load Shackle - Range from 3,250kg to 400 tonne

Crosby Straightpoint’s Wireless Loadshackle (WLS) provides the perfect solution to limited headroom or super heavy lift projects. Available from stock in capacities from 3.25t to 500t (up to 3000t available POA), the WLS is constructed using industry-leading shackles from Crosby.

Each WLS is proof tested, then equipped with a hard-anodised aluminium electronics enclosure. Contained within this enclosure is an internal chassis providing IP67 or NEMA6 environmental protection, even with the battery cover plate missing.

Featuring industry leading wireless technology, the WLS can maintain an update rate of 3Hz. It can be easily configured to run at industry-leading speeds of up to 200Hz, if required for dynamic load measurement projects.

Utilising easily sourced AA alkaline batteries, the WLS features advanced circuitry, designed to protect the unit from damage associated with incorrectly installed batteries. This circuitry extends battery life, and the use of easily-sourced alkaline batteries, eliminating issues associated with rechargeable battery pack charging, failure and replacement.

The WLS may also be used with Straightpoint’s Insight software package, allowing the operator to perform load tests at a safe distance and generate real-time test certificates on site.

A full array of wireless accessories are also available including wireless score board, overload alarm and base station with analogue (4-20mA) or 2 relay or RS485 ASCII outputs.

Features

• Capacities of 3.25t to 500t, as well as being obtainable up to 3,000t.
• Wireless range of 3,280 ft (328 ft if Bluetooth), (1,640 ft if ATEX/IECEx).
• Every Loadshackle is proof tested.
• Electronics housed in hard anodized enclosure.
• Environmentally sealed to IP67 or NEMA6.Battery life of 1,200 hrs from 4 x AA Alkaline batteries (500 hours if Bluetooth).
• Internal antenna.
• Remote on/off from handheld display or software.
• Supplied with a load-centering bobbin.
• 2-year warranty.
• Complies with ASME B30.26.
• Design validated by FEA.
• ATEX Zones 0, 1 & 2 available.
• Bluetooth option is available and is supplied with a free HHP App for iOS and Android.
• Handheld Plus available, but not included.
• Sizes 3.25t to 25t are Crosby 2130 shackles. Size 55t is the 2140 Crosby shackle. Sizes 85t and up are 2135 Crosby shackles.
• Design Factor: 5:1 when used with load bobbin.
• Operating Temperature: 14°F to 122°F.
• Accuracy: ±1% full scale.
• Frequency: 2.4 GHz.
• Data Rate: 3 updates per second.
• Protection: IP67 / NEMA6.
