ALR L6 Lever Hoist

L6 Manual Lever Hoist from ALR

The L6 lever hoist from ALR (Atlas Lifting and Rigging) is engineered for demanding lifting and pulling applications, combining robust construction with advanced safety features for reliable performance in industrial environments. Heavy-duty reinforced cast-steel safety latches on both the top and bottom hooks provide a secure and positive closure, while clearly visible overload indicators and traceability markings support compliance, inspection, and asset management requirements. The hook housings are secured using bolt-and-nut assemblies, allowing full inspection access for maintenance and servicing. Designed for versatility, the lever hoist is suitable for cross-hauling and fleeting applications up to 60° from the vertical without reducing the working load limit.

Built for durability and long service life, the lever hoist is fitted with a Grade 80 alloy steel load chain compliant with EN818-7 and protected with a zinc finish for enhanced corrosion resistance. Optional upgrades include an overload limiter, ball-bearing hooks, and adaptor fittings to support a wide range of lifting configurations. Operating effectively within a temperature range of -20°C to +120°C, the lever hoist delivers dependable performance across challenging working conditions. Additional specifications include a 2% light load rating, a 4:1 safety factor, and proof load testing at 1.5 times the working load limit. The lever hoist also complies with major international standards, including BS EN13157:2004 + A1:2009, ASME B30.16-2014, AS1418.2-1997, SANS 1594:2007, and NORSOK R-002:2017.

L6 Hoist Features

• Heavy-Duty Safety Latches: Top and bottom hooks feature reinforced cast-steel latches for a secure, positive hook closure.
• Overload & Traceability Markings: Each hook is clearly marked with overload indicators and identification codes for full compliance and easy inspection.
• Full Inspection Access: Hook housings are fastened with bolt-and-nut assemblies, enabling thorough inspection when required.
• Cross-Hauling Capability: Suitable for fleeting applications up to 60 ° from the vertical, without reducing the working load limit.
• Load Chain: Fitted with G80 alloy steel load chain fully compliant with EN818-7 and a Zinc finish for enhanced corrosion protection.
• Optional Enhancements: Overload limiter, ball-bearing hooks, and adaptor fitting to enable a range of attachment options.
• Temperature Range: -20°C to +120°C
• Light Load: 2% WLL
• Safety Factor: 4:1
• Proof Load Testing: 1.5 x WLL
• Standards
  • British Standard BS EN13157:2004 + AI:2009
  • American Standard ASME B30.16-2014
  • Australian Standard AS1418.2-1997
  • South African Standard SANS 1594:2007
  • NORSOK R-002: 2017.

Lever Hoist Specifications: L6

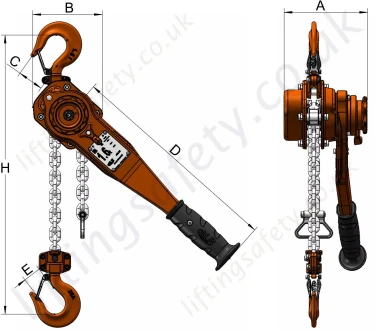

Capacity (t)	Product Code	No. Falls	Load Chain (mm)	Mass @ 1.5m HOL (kg)	Extra mass per m HOL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	H (mm)
0.8 tonne	ALH6-008	1	5.6 x 17	6	0.7	121	148	24	265	15	300
1.6 tonnes	ALH6-016	1	7.1 x 21	10	1.1	141	166	32	358	19	360
3.2 tonnes	ALH6-032	1	10 x 30	16	2.17	210	168	38	415	25	445
6.3 tonnes	ALH6-063	2	10 x 30	27	4.34	228	168	48	415	32	570
9 tonne	ALH6-090	3	10 x 30	39	6.5	314	168	59	415	42	670
15 tonne	ALH6-150	6	10 x 30	95	13	415	168	77	415	51	1000
