Planetary Hydraulic Winch

Planetary Hydraulic Winch

Hydraulic Planetary Winches from 2500kg to 37000kg.

Model:

HPW-2683

Planetary Hydraulic Winch

Planetary Hydraulic Winch

Planetary Hydraulic Winch

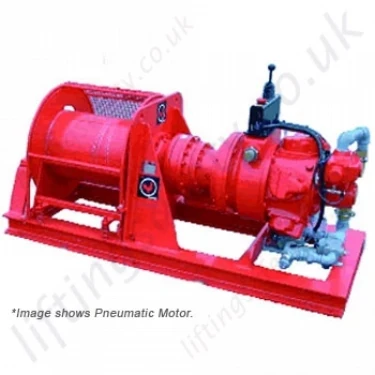

This winch type provides the basis of the solution to many winch problems. The winch is constructed in the conventional manner with motor gearbox and drum in line. A choice of electric, hydraulic or pneumatic motors may be selected. Capacities up to 37 tonnes.

Standard Winch Features

  • Heavy duty planetary gearbox.
  • Choice of motors:
    • 1. Electric - 3 phase with brake
    • 2. Hydraulic - orbital or radial piston.
    • 3. Pneumatic - radial piston with silencers

Available Options

  • Manual disengaging clutch.
  • Drum pressure roller.
  • Spiral grooved drum.
  • Alternative speeds.
  • Alternative drum capacities.
  • Split drum, additional rope anchor(s).
  • Drum Guard.
  • Limit switches.

Winch Specifications

Winch Type W.L.L 1st Layer (kg) W.L.L Top layer (kg) Recommended Rope diameter (mm) Speed 1st layer (m/min) Drum Capacity 1st layer (m) Drum capacity Top layer (m) Pressure drop (Bar) Flow in (L/min)
HPW303
 2500 1740 14 18 28 165 140 60
HPW304
 3100 2160 14 15 28 165 140 60
HPW305
 4000 2770 16 18 26 161 160 80
HPW306
 5500 3970 18 25 30 181 225 95
HPW307
 7000 4960 22 20 28 171 230 100
HPW309
 9000 6285 26 13 27 163 190 100
HPW310
 12000 8460 28 11 29 188 230 95
HPW311
 16000 10655 34 10 24 144 225 110
HPW313
 20000 13610 38 8 24 151 210 120
HPW314
 24000 16170 40 8 24 154 210 120
HPW315
 30500 20800 44 8 24 151 235 165
HPW316
 37000 24570 48 6 21 141 225 160

Technical Information

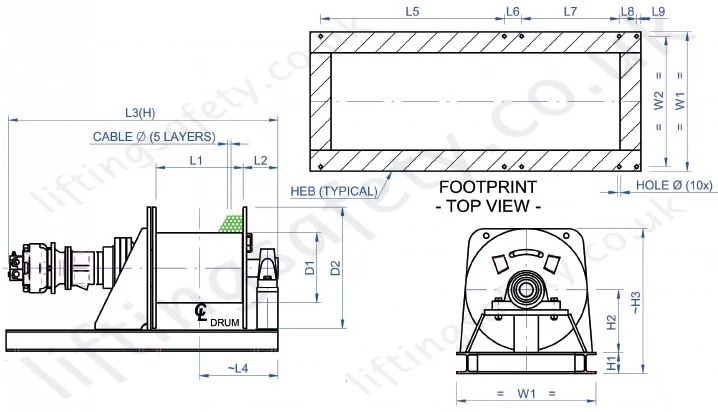

Hydraulic planetary winch dimensions

Type Mass (kg) D1 (mm) D2 (mm) L1 (mm) L2 (mm) L3 (mm) L4 (mm) L5 (mm) L6 (mm) L7 (mm) L8 (mm) L9 (mm) H1 (mm) H2 (mm) H3 (mm) W1 (mm) W2 (mm) HEB (mm) Hole Ø (mm)
300 250 178 410 500 135  - 385 610 80 540 80 20 100 215 520 500 460 100 14
301 250 195 410 500 155  - 405 610 80 540 80 20 100 215 520 500 460 100 14
303 400 244 500 500 155 1350 405 850 80 550 80 20 100 260 610 600 560 100 14
304 N/A
305 400 272 500 500 155 1350 405 900 80 550 80 20 100 260 610 600 560 100 14
306 510 355 600 500 165 1450 415 940 80 560 80 20 100 310 710 700 660 100 18
307 790 406 700 500 200 1550 450 1140 100 560 100 25 120 360 830 800 750 120 20
309 1100 455 850 500 230 1550 480 1160 110 560 110 30 140 435 1000 1000 940 140 22
310 1420 508 900 500 235 1600 485 1190 120 590 120 40 160 460 1070 1100 1040 160 26
311 1740 508 1000 500 259 1600 509 1240 120 590 120 40 160 510 1170 1150 1090 160 30
313 2320 610 1150 500 260 1700 510 1240 120 590 120 40 180 585 1340 1350 1280 180 32
314 N/A
315 3400 711 1350 500 299 2050 549 1650 140 590 140 40 200 685 1560 1550 1470 200 36
316 2900 711 1400 500 299 2100 549 1700 140 590 140 40 200 710 1610 1600 1520 200 36
