Corrosion resistant beam clamp made of stainless steel V2A AISI 304. Optional ATEX certification. Capacity options from 1 tonne to 5 tonnes.
Model:
221/25 VA
Quick Ref:
HSSB-5704
More from:

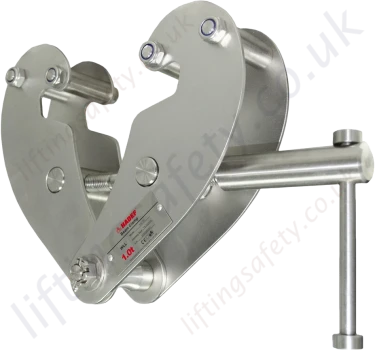

Beam Clamp Made Completely from 304 Stainless Steel
Manufactured entirely from stainless steel, V2A AISI 304
Stainless steel design ensures maximum corrosion protection
ATEX certification on request
Capacity options from 1000kg up to 5 tonnes.
Adjustable to suit a wide range of beam sizes.
Provides a quick and versatile rigging point for equipment such as a chain hoist, pulley block or loads.
Flexible application due to a wide adjustment range.
The central threaded spindle allows easy attachment and a safe and secure grip.
Low headroom design with built-in anchor point.

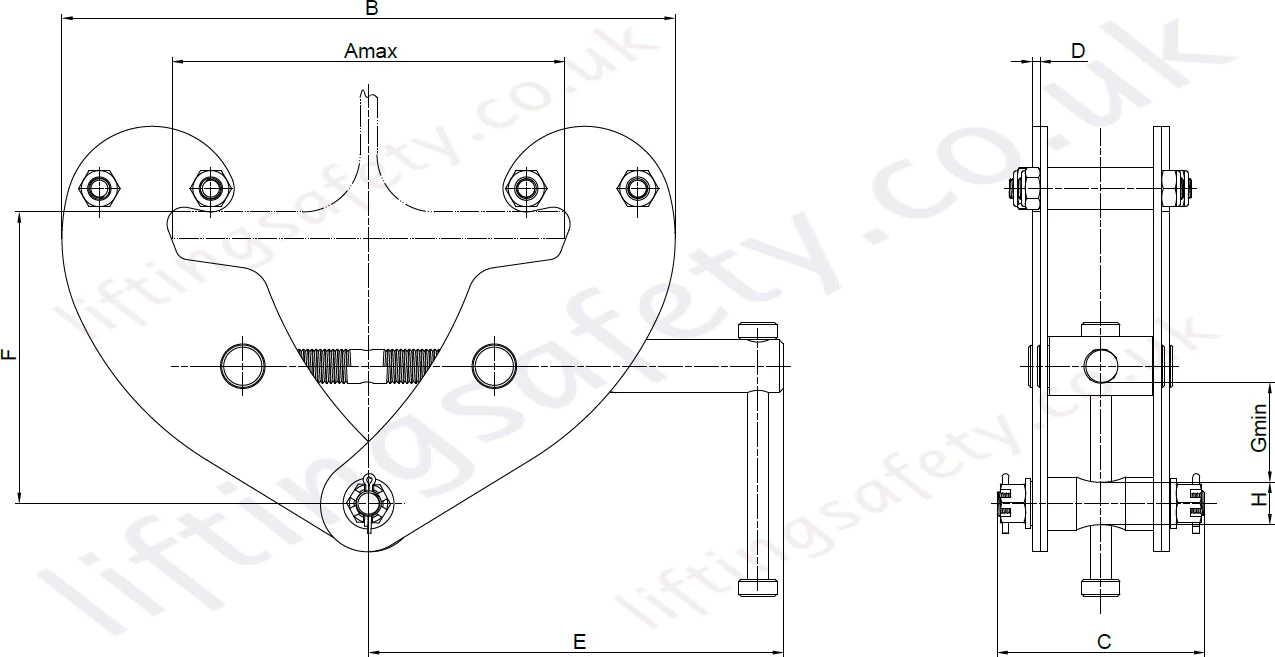

Specifications
Capacity
Flange Width Range (mm)
A max. (mm)
B min. (mm)
B max. (mm)
C (mm)
D (mm)
E (mm)
F min. (mm)
F max. (mm)
G (mm)
H (mm)
Weight (kg)
1000kg
75-230
240
192
367
98
4
194
102
154
22
20
4.1
2000kg
75-230
240
192
367
106
6
194
102
154
22
20
4.9
3000kg
80-345
355
243
520
159
8
241
133
223
38
24
10
5000kg
80-345
355
243
520
167
10
241
133
223
35
33
11.8
