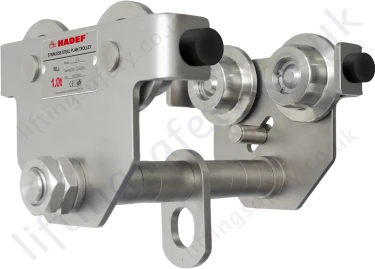

Hadef 18/25 R VA Stainless Steel Push Travel Beam Trolley
Hadef 18/25 R VA Stainless Steel Push Travel Beam Trolley
Corrosion resistant beam trolley with plain/push travel design, made from stainless steel, V2A AISI 304. Optional ATEX certification. Capacity options from 250kg tonne to 5 tonnes.
Model:
18/25 R VA
Quick Ref:
HRVS-5705
More from:
Push Travel Girder Trolley Made Completely from 304 Stainless Steel
Manufactured entirely from stainless steel, V2A AISI 304.
Stainless steel design ensures maximum corrosion protection.
Good protection against humid environment

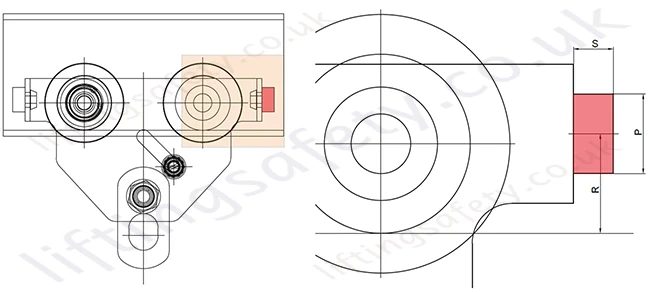

Rubber buffers are included as standard.
ATEX certification on request.
Capacity options from 250kg up to 5 tonnes.
Available to suit a wide range of beam sizes with two beam range options.
Provides a quick and versatile mobile rigging point for equipment such as a stainless steel chain hoist, pulley block or loads.
Specifications
Capacity
Flange Width Range 1 (mm)
Flange Width Range 2 (mm)
Minimum Curve Radius (m)
Weight (kg)
250kg
51-153
-
1.0
3.8
500kg
64-203
204-305
1.0
6.3
1000kg
64-203
204-305
1.0
10.8
2000kg
88-203
204-305
1.3
18
3000kg
101-203
204-305
1.3
29
5000kg
101-203
204-305
1.6
48

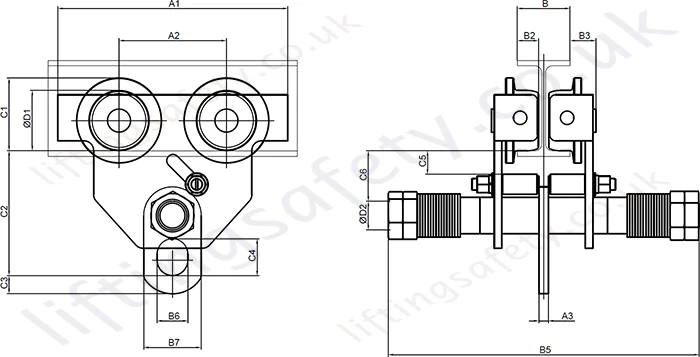

Dimensional Information
All dimensions listed below are millimetres (mm).
Capacity
A1
A2
A3
B2
B3
B5 (Flange Width Range 1 & 2)
B6
B7
C1
C2
C3
C4
C5
C6
ØD1
ØD2
ØP
S
R
250kg
192
97
6
18
23
254
24
42
55
98
15
30
21
46
45
16
20
10
25
500kg
212
104
8
22
25
310/405
32
60
62
111
19
38
22
42
52
25
30
13
29
1 tonne
240
112
10
22
27
324/420
32
60
76
130
19
38
25
52
63
32
30
13
34
2 tonne
274
125
12
24
32
352/450
38
85
86
161
22
51
28
56
70
42
36
17
38
3 tonne
319
150
14
22
36
370/470
45
97
107
197
25
68
34
61
92
50
36
17
54
5 tonne
338
152
18
30
49
420/520
54
120
231
231
32
85
40
76
98
55
36
17
54
