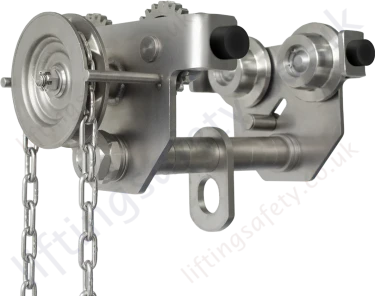

Hadef 18/25 H VA Stainless Steel Geared Travel Beam Trolley

Geared Travel Girder Trolley Made from 304 Stainless Steel with 316 Stainless Hand Chain

• The trolley body is manufactured entirely from stainless steel, V2A AISI 304 and the hand chain is V4A AISI 316 stainless steel.
• Stainless steel design ensures maximum corrosion protection.
• Good protection against humid environment

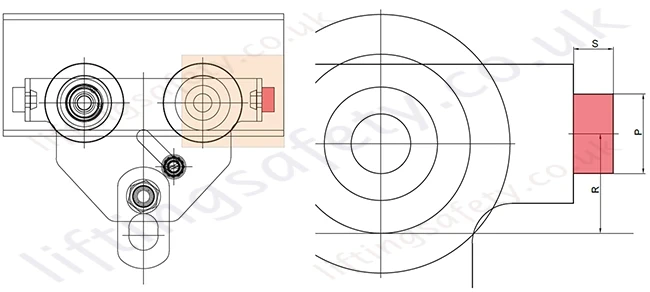

• Rubber buffers are included as standard.
• ATEX certification on request.
• Capacity options from 250kg up to 5 tonnes.
• Standard hand chain drop is to suit a 3 metre lift height, but can be supplied as required.
• Available to suit a wide range of beam sizes with two beam range options.
• Provides a quick and versatile mobile rigging point for equipment such as a stainless steel chain block, pulley block or loads.

Specifications

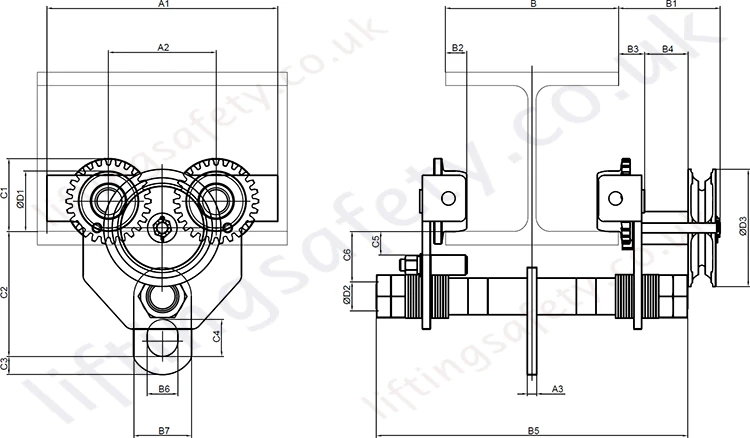

Dimensional Information

All dimensions listed below are millimetres (mm).
