BlokCam is a wireless system that can be quickly and easily deployed to the hook block or boom tip of a crane. The sound and view from below the camera is then transmitted and received wirelessly via the antenna systems to a screen in the cab. This allows the operator to see and hear the load and surroundings, giving an unobstructed, live, audio- visual feed of the critical areas that working in the blind would never allow.

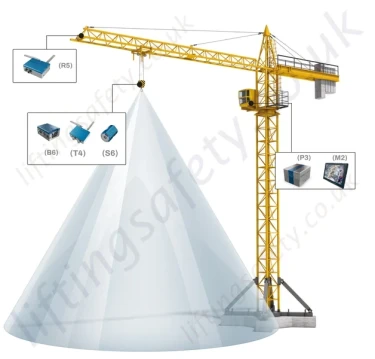

How Blokcam works
1. On the Hook Block and/or Boom Tip
The Sensor captures the audio-visual feed and sends it to the transmitter. The signal is then transmitted to a repeater on the Jib, Boom or Cab. The battery powers both the Transmitter and the Sensor. Each component attaches magnetically and can be mounted on the block, including between the cheek plates and on the boom tip.
2. Repeater on the Jib/Boom and/or Cab
The Repeater receives the wireless signal from the transmitter and is relayed back to a monitor in the cab. The Repeater position and configuration is dependent on the type of crane, type of jib/boom and length of jib / boom.
3. In the Operator’s Cab
The live audio-visual feed is then processed and displayed on the screen positioned inside the cab, allowing the operator to see and hear live footage of everything below the camera.
Design Overview
- Easy and quick to install; can be fitted within an hour
- Uses high powered neodymium magnets
- The lens is auto-focus and always gives clear views of the load and surrounding area below the hook
- 2K QHD Resolution 2688*1520
- Audio from sensor to cab
- Optional single and split screen mode with additional cameras
- Long range transmission 5
- Record on loop for up to 50 days
- Purpose built aluminium housing
- Multiple built in lanyard anchors
- Safety lanyard provides secondary security tethering
- Hands free operation
|
- Multi positional sensor for variable views
- LED indicators
- Two batteries per system
- 12 hour battery life 3
- Multivoltage AC and DC inputs
- Durable all-weather design, manufactured to IP67 4 rating
- -10 °C to 50 °C (14 °F to 122 °F) operating temperature
- Optional mobile app and 4G live streaming 2
- CE and FCC Approved
- High quality industrial connectors
- Colour coded connectors
|
What's Included
Sensor (S6) PART 7370037
The S6 has a 117° diagonal FOV. The low profile design, tool free operation and rotatable lens allows for easy installation on any side of the hook block including in between the cheek plates.
Transmitter (T4) PART 7370038
T3 dramatically improves the most important aspects of the BlokCam. The combination of performance, specification, aesthetics and 59mm low profile design make this a must for all crane operations.Optional: Connect up to two sensors, a TwinCam Transmitter is required.
Battery (B6) PART 7370032
B6 is a lithium 14.54v Battery Pack. The clever tool-free design and easy grip finger slots makes it easy to install, remove and charge. IP67.
Charger (B6-CH4) PART 7360045
Our Li-Ion Charger is designed to improve the efficiency of your BlokCam Batteries and the performance of the camera system.
Repeater (R5) PART 7370020
Depending on the crane type and required installation the Repeater is mounted on the jib, boom tip or cab. The Repeater has been specifically designed for fast, wireless, telescopic deployment.
Monitor (M2) PART 7360019
Our HD Monitor is a 10.1 inch 16:9 LCD monitor with built in speakers, HDMI input with lux auto brightness and interaggregate dustproof front panel.
Processor (P3) PART 7370029
Our purpose built Processor can project multiple high definition images and audio’s through a single HDMI lead with less than 0.3 seconds of latency. The design of the Processor accommodates multivoltage AC and DC inputs making your BlokCam system compatible across all types of cranes. The Processor also provides power to the monitor, eliminating the need for a secondary socket or power supply.
