Crosby L562A ROV Eye Shank Hook with Safety Latch

Crosby L562A ROV Eye Shank Hook with Safety Latch

ROV shank hook with a long hexagonal body for easy of manipulation by ROV devices. WLL from 5.4t up to 175t.

Model:

Crosby L-562A / RESH-3521

Crosby L562A ROV Eye Shank Hook with Safety Latch

ROV Eye Shank Hook without Rope (standard) ROV Eye Shank Hook with Rope (non-standard)
More from:
Crosby

Crosby ROV Shank Hook

Crosby® L562A ROV Shank Hooks, with 250 mm long hexagonal bodies for easy handling by ROV manipulators, are available in 11 standard sizes.

For efficient handling and attachment by Remote Operating Vehicles to subsea and other hard-to-reach loads.

Crosby® ROV Hooks incorporate the following features

  • Hook identification code stamped on each hook.
  • Quenched & Tempered.
  • QUIC-CHECK® angle indicators are forged into the top eye, and deformation and angle indicators are forged on the hook.
  • Fluorescent yellow finish for high subsea visibility.
  • Tip extension allows for easy handling.
  • Sizes 5.4t through 31.5t utilise a new integrated latch (S-4320) that meets the world-class standard for lifting.
  • Heavy-duty stamped latch interlocks with the hook tip.
  • High-cycle, long-life spring.
  • Pad eyes are provided on either side of the hook as cable guides. The cable is passed through a hole drilled in the latch that assists in allowing the remotely operated cable to open the latch.
  • Crosby supplies latches with drilled holes for sizes 5.4t through 31.5t. Other sizes can be fitted by your local Authorised Crosby Dealer. Cables are not provided by Crosby.
  • Developed in conjunction with major North Sea subsea operators.
  • 4:1 Design Factor.
  • Maximum proof load is 2 times the Working Load Limit.

Metric Dimensions & Specifications

Working Load Limit (tonnes) Hook ID Code Stock No. Weight (kg) I (mm) E (mm) B (mm) D (mm) J (mm) F (mm) M (mm) H (mm) L (mm) K (mm)
†5.4 IA 1297722 9.5 65 250 421 123 9.9 51 29 22 35 6.4
†11.5 KA 1297792 15 65 250 518 192 30 76 41 32 53 9.7
†16 LA 1297806 18 65 250 550 212 30 83 49 35 58 9.7
†22 NA 1297862 31 85 250 608 263 45 108 60 40 77 19
31.5 OA 1298042 44 85 250 660 346 - 127 76 48 106 19
‡37 PA 1298049 44 80 235 828 357 - 137 76 47 95 19
‡45 SA 1298057 90 80 235 865 392 - 152 83 47 108 19
‡60 TA 1298087 131 90 215 941 470 - 178 99 53 130 19
‡100 WA 1298103 303 140 300 1185 584 - 173 140 69 124 19
‡150 XA 1298117 395 150 230 1233 619 - 171 152 92 137 19
**175 YA 1298130 515 170 255 1326 678 - 191 178 102 - 19

** Deformation Indicators.

† Utilizes Crosby S319N style hook.

‡ Utilises Crosby G-2140 shackle as eye.

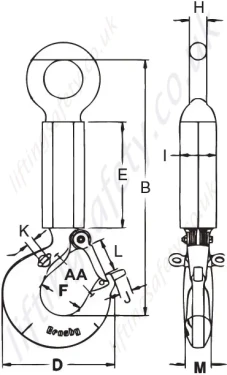

5.4t to 31.5t Dimensional Drawing
5.4t to 31.5t Dimensional Drawing

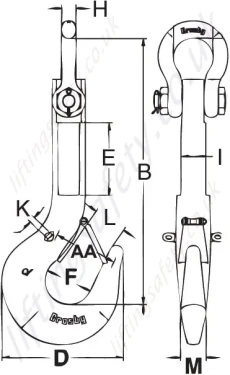

37t to 175t Dimensional Drawing
37t to 175t Dimensional Drawing
Part N° Working Load Limit (t) Hook ID Code Weight (kg) Unit Price (Ex. VAT) Quantity
3521-T7488
1297722 		†5.4 IA 9.5 Quote Required
3521-T7489
1297792 		†11.5 KA 15 Quote Required
3521-T7490
1297806 		†16 LA 18 Quote Required
3521-T7491
1297862 		†22 NA 32 Quote Required
3521-T7492
1298042 		31.5 OA 44 Quote Required
3521-T7493
1298049 		‡37 PA 44 Quote Required
3521-T7494
1298057 		‡45 SA 90 Quote Required
3521-T7495
1298087 		‡60 TA 131 Quote Required
3521-T7496
1298103 		‡100 WA 303 Quote Required
3521-T7497
1298117 		‡150 XA 395 Quote Required
3521-T7498
1298130 		**175 YA 515 Quote Required
Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.
Description

Crosby ROV Shank Hook

Crosby® L562A ROV Shank Hooks, with 250 mm long hexagonal bodies for easy handling by ROV manipulators, are available in 11 standard sizes.

For efficient handling and attachment by Remote Operating Vehicles to subsea and other hard-to-reach loads.

Crosby® ROV Hooks incorporate the following features

  • Hook identification code stamped on each hook.
  • Quenched & Tempered.
  • QUIC-CHECK® angle indicators are forged into the top eye, and deformation and angle indicators are forged on the hook.
  • Fluorescent yellow finish for high subsea visibility.
  • Tip extension allows for easy handling.
  • Sizes 5.4t through 31.5t utilise a new integrated latch (S-4320) that meets the world-class standard for lifting.
  • Heavy-duty stamped latch interlocks with the hook tip.
  • High-cycle, long-life spring.
  • Pad eyes are provided on either side of the hook as cable guides. The cable is passed through a hole drilled in the latch that assists in allowing the remotely operated cable to open the latch.
  • Crosby supplies latches with drilled holes for sizes 5.4t through 31.5t. Other sizes can be fitted by your local Authorised Crosby Dealer. Cables are not provided by Crosby.
  • Developed in conjunction with major North Sea subsea operators.
  • 4:1 Design Factor.
  • Maximum proof load is 2 times the Working Load Limit.

Metric Dimensions & Specifications

Working Load Limit (tonnes) Hook ID Code Stock No. Weight (kg) I (mm) E (mm) B (mm) D (mm) J (mm) F (mm) M (mm) H (mm) L (mm) K (mm)
†5.4 IA 1297722 9.5 65 250 421 123 9.9 51 29 22 35 6.4
†11.5 KA 1297792 15 65 250 518 192 30 76 41 32 53 9.7
†16 LA 1297806 18 65 250 550 212 30 83 49 35 58 9.7
†22 NA 1297862 31 85 250 608 263 45 108 60 40 77 19
31.5 OA 1298042 44 85 250 660 346 - 127 76 48 106 19
‡37 PA 1298049 44 80 235 828 357 - 137 76 47 95 19
‡45 SA 1298057 90 80 235 865 392 - 152 83 47 108 19
‡60 TA 1298087 131 90 215 941 470 - 178 99 53 130 19
‡100 WA 1298103 303 140 300 1185 584 - 173 140 69 124 19
‡150 XA 1298117 395 150 230 1233 619 - 171 152 92 137 19
**175 YA 1298130 515 170 255 1326 678 - 191 178 102 - 19

** Deformation Indicators.

† Utilizes Crosby S319N style hook.

‡ Utilises Crosby G-2140 shackle as eye.

5.4t to 31.5t Dimensional Drawing
5.4t to 31.5t Dimensional Drawing
37t to 175t Dimensional Drawing
37t to 175t Dimensional Drawing
