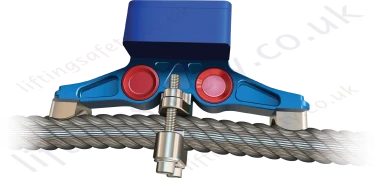

Straightpoint BOLT Bolt On Line Tension Meter

The Crosby Straightpoint Bolt-On-Line-Tensiometer or BOLT is a lightweight wire rope tension meter or shunt tension meter for fast and accurate measurement of tensions up to 20,000lbf / 10,000kgf and up to 1.25” / 32mm diameter wire ropes.

Sealed to IP67 or NEMA6 and constructed from aerospace-grade aluminium, the BOLT digital tensiometer is lightweight, easy to handle and operates on wires which are already under tension. Once installed it enables the operator to quickly check tension on cables or wire ropes set at any angle.

BOLT may be powered by the on-board AA batteries for up to 50 days of continuous measures at 3Hz or if needed to be fitted for longer periods or in remote sites may be powered via the LoadConnect base station via low voltage cables or solar battery pack solutions allowing for permanent power.

It is supplied inclusive of an SW-D dongle, to make on-the-spot calibrations to achieve greater accuracy of 2-3%; standard factory accuracy is 3-5%.

Features

• Designed to be mounted in a permanent position on wire rope or cable.
• To accurately monitor measurements of tension up to 10,000 kg and up to 32 mm diameter.
• Constructed from aerospace-grade aluminium.
• Proprietary 2.4 GHz wireless.
• Leading wireless range of 1,000 m when connected to SW-HHP, enabling you to read up to four loadcells simultaneously.
• Unlimited range when connected to BaseStation to monitor remotely.
• Will provide reduced site visits, improve decision making and safely monitor line tensions from any distance from anywhere in the world.
• Unrivalled battery life of 1,200 hrs.
• Multiple drop tested from 3 m.
• Internal antenna.
• Remote on/off from handheld display or software.
• Units: kilograms, pounds, metric tons and kilonewtons.
• Battery Type: 4 x ’AA’ cell batteries.
• Operating Temperature: -10°C to +50°C.
• Protection: IP67 / NEMA6.
• Accuracy: Typically 3-5%.

Dimensions & Specifications
