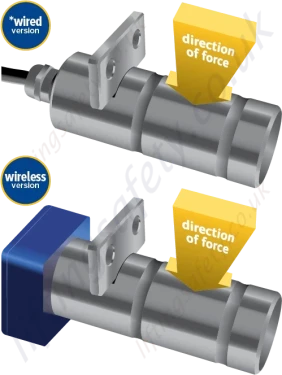

The Crosby Straightpoint range of Load Measurement Pins (LMP’s) are designed for use in applications where an end of line load cell cannot be used, meaning an integrated solution is required.
Often a customized solution, they are manufactured from high tensile stainless steel and are normally supplied complete with an anti-rotation plate as a cabled or wireless solution.
Built to withstand the harshest environments in industries such as marine and offshore oil and gas, they are suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths.
Crosby Straightpoint Loadpins are typically connected to Straightpoint’s Handheld plus, or may be supplied with a vast array of output formats. These include mV/V, 4-20mA output, utilising the ASCII, and MODBUS RTU and protocols or an analogue output such as 4-20mA for PLC integration. All are also supplied with a 10 meter or 32ft cable as standard, however, usable cable length varies greatly with lengths available to 1500 meters or 4900ft, depending on output format.
Features
- Designed for use in applications where an end of line loadcell cannot be used, meaning an integrated solution is required.
- High tensile stainless steel.
- Supplied complete with an anti-rotation plate as a cabled or wireless solution.
- Built to withstand the harshest environments in industries such as marine and offshore oil and gas.
- Suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths.
- Supplied with a 10 m cable as standard, however, usable cable length varies greatly with lengths available to 1,500 m, depending on output format.
- Include mV/V, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols or an analogue output such as 4-20mA for PLC integration.
- Design validated by FEA.
- Design Factor: 3:1.
- Operating Temperature: -20 to +70 °C.
- Accuracy: ±1% of full scale.
- Protection: IP67 [IP68 available as an option] NEMA6 [NEMA6P available on application].
Dimensions & Specifications
| Stock No. |
Model |
Capacity (t) |
Resolution (t) |
Weight (kg) |
Dimensions (mm) |
| A |
B |
C |
ØD |
| 2789276 |
LP500KG |
500 (kg) |
0.2 (kg) |
0.9 |
24 |
36 |
70 |
20 |
| 2789277 |
LP1T |
1,000 (kg) |
0.5 (kg) |
1 |
35 |
49 |
80 |
20 |
| 2789278 |
LP2.5T |
2.5 |
0.001 |
1.2 |
45 |
70 |
100 |
25 |
| 2789279 |
LP3.5T |
3.5 |
0.001 |
1.4 |
50 |
75 |
105 |
30 |
| 2789280 |
LP6.5T |
6.5 |
0.002 |
2 |
63 |
95 |
125 |
40 |
| 2789281 |
LP15T |
15 |
0.002 |
3.1 |
75 |
114 |
150 |
50 |
| 2789282 |
LP25T |
25 |
0.005 |
5.6 |
89 |
152 |
195 |
63 |
| 2789283 |
LP50T |
50 |
0.01 |
8.6 |
102 |
178 |
225 |
75 |
| 2789284 |
LP100T |
100 |
0.05 |
11.8 |
110 |
190 |
230 |
88 |
| 2789285 |
LP250T |
250 |
0.1 |
29.8 |
130 |
220 |
300 |
125 |
| 2789286 |
LP500T |
500 |
0.2 |
79.2 |
225 |
370 |
440 |
170 |
| 2789287 |
LP750T |
750 |
0.2 |
146 |
295 |
500 |
590 |
200 |
| 2789288 |
LP1000T |
1000 |
0.5 |
275 |
360 |
612 |
712 |
250 |
| 2789289 |
LP1500T |
1500 |
0.5 |
389 |
430 |
731 |
832 |
275 |
