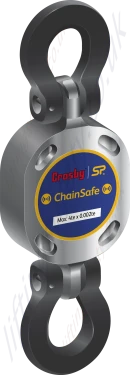

Chainsafe Wireless Load Cell from Straightpoint
Crosby Straightpoint ChainSafe is a Bluetooth wireless tension load cell capable of load monitoring of capacities up to 4 tonnes. Specifically designed for use along the length of the chain with a vast choice of Kito Crosby chain fittings for applications where chain lashing and tie downs are used in industries such as transportation.
The ChainSafe design has an unrivalled strength-to-weight ratio with a completely sealed stainless steel enclosure providing IP67 or NEMA6 environmental protection, making this industry-leading dynamometer even more suitable for use in the harshest environments.
The versatile chain load monitoring device has an update rate of 1Hz, and the Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP app installed. This will provide the operator with a wireless range of up to 328ft or 100m, measuring the load from a safe distance. The app will also allow the operator to log data versus time or on events such as over- or underload, and the adjustable alarm will alert the operator on their smartphone if any overload is occurring.
ChainSafe is designed to be fitted with an array of Kito Crosby chain fittings, and is an approved wireless tension loadcell capable of load monitoring of capacities up to 4t. Contact us for further information regarding fittings, etc.
Chainsafe Features
- Designed to work with a 10mm chain.
- Unmatched weight-to-strength ratio.
- Update rate of 1Hz and the Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP App, which will alert the operator on their smartphone if any overload is occurring.
- Bluetooth wireless range of 100 m.
- No battery change required.
- Battery life: 5 years based on 3 hours of use per day.
- Battery Type: Lithium Thionyl Chloride (non-replaceable).
- Environmentally sealed to IP67/NEMA6.
- Internal antenna.
- Conforms to EN1677:2008.
- Fatigue tested to 30,000 cycles to 1.5x WLL.
- Design Factor: 4:1.
- Operating Temperature: -10°C to +50°C.
- Recommended Fittings: 10mm (3/8”) G100 chain fittings.
Dimensions & Specifications
| Stock No. |
Model |
Capacity (t) |
Resolution (t) |
Weight (kg) |
Dimensions (mm) |
| A |
B |
C |
D |
E |
F |
G |
| 2789536 |
ChainSafe |
4 |
0.002 |
2.5 |
164 |
35 |
85 |
132 |
13.2 |
11 |
28 |
