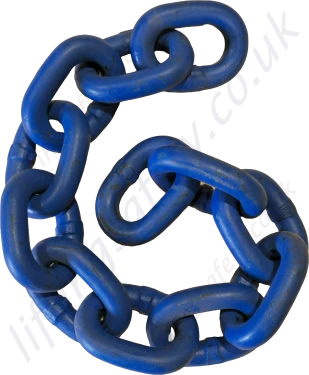

Yoke Grade 100 Sling Chain for Chain Slings

Yoke Grade 100 Sling Chain for Chain Slings

Grade 10 / 100 alloy steel lifting chain specifically designed in chain slings. WLL Range 1.4 tonne to 40 tonnes with chain diameters from 6 to 32 mm.

Model:

SC

Quick Ref:

YGSC-5650

Yoke Grade 100 Sling Chain for Chain Slings

Yoke Grade 100 Lifting Chain 1 Yoke Grade 100 Lifting Chain 2 Yoke Grade 100 Lifting Chain 3
More from:
Yoke

Grade 100 (Grade 10) Lifting Chain for Chain Slings

  • Grade 100 short link lifting chain
  • Conforms to ASTM A973/A973-01, EN 818-2 with increased load-bearing capacity by +25%
  • 4:1 factor of safety
  • The operating temperature range is from -20°C to +200°C
  • Designed specifically to be used in a grade 100 chain sling arrangement for lifting applications.

Chain Specifications

Code Capacity (tonne) Chain Diameter (mm) Link Dimension (mm) Weight (kg/m)
D W1 (min) W2 (max)
SC-060V-01 1.4 6 18 8.5 22.2 0.84
SC-080V-01 2.5 8 24 11.0 29.6 1.50
SC-100V-01 4.0 10 30 13.5 37.0 2.40
SC-130V-01 6.7 13 39 16.9 48.1 4.10
SC-160V-01 10.0 16 48 20.8 59.2 6.05
SC-200V-01 16.0 20 60 26.0 74.0 10.00
SC-220V-01 19.0 22 66 28.6 81.4 11.90
SC-260V-01 26.5 26 78 33.8 96.2 15.70
SC-320V-01 40.0 32 96 41.6 118.0 24.30
Dimensional Drawing

Contact Us About This Product

If you wish to receive a quote for this product, please use the Pricing section to the right, this form is for general enquiries regarding this product only.

Regarding: Yoke Grade 100 Sling Chain for Chain Slings
Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

qrcode

Pricing

(min:1)
Unit Price

£7.00

Ex. VAT

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Availability

Usually 1-2 Days (Next working day delivery may be possible) - 1pm cut-off

Grade 100 (Grade 10) Lifting Chain for Chain Slings

  • Grade 100 short link lifting chain
  • Conforms to ASTM A973/A973-01, EN 818-2 with increased load-bearing capacity by +25%
  • 4:1 factor of safety
  • The operating temperature range is from -20°C to +200°C
  • Designed specifically to be used in a grade 100 chain sling arrangement for lifting applications.

Chain Specifications

Code Capacity (tonne) Chain Diameter (mm) Link Dimension (mm) Weight (kg/m)
D W1 (min) W2 (max)
SC-060V-01 1.4 6 18 8.5 22.2 0.84
SC-080V-01 2.5 8 24 11.0 29.6 1.50
SC-100V-01 4.0 10 30 13.5 37.0 2.40
SC-130V-01 6.7 13 39 16.9 48.1 4.10
SC-160V-01 10.0 16 48 20.8 59.2 6.05
SC-200V-01 16.0 20 60 26.0 74.0 10.00
SC-220V-01 19.0 22 66 28.6 81.4 11.90
SC-260V-01 26.5 26 78 33.8 96.2 15.70
SC-320V-01 40.0 32 96 41.6 118.0 24.30
Dimensional Drawing

Contact Us About This Product

If you wish to receive a quote for this product, please use the tab, this form is for general enquiries regarding this product only.

Regarding: Yoke Grade 100 Sling Chain for Chain Slings
Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

qrcode
