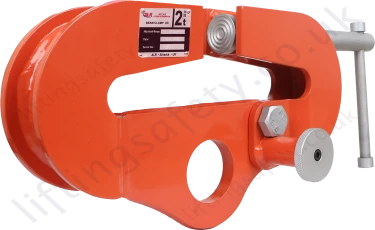

ALR AUC Adjustable Universal Beam Clamp

Universal Beam Clamp with Adjusting Screw

This lifting clamp delivers full rated capacity at any lifting angle, providing a quick and versatile rigging point for safely hoisting equipment in a wide range of applications. Its low headroom design makes it ideal for confined spaces, while the highly flexible configuration allows it to be used for lifting, pulling, or as a semi-permanent anchor point. Designed to accommodate a broad range of beam widths, the unit offers exceptional adaptability across different structural setups.

The multidirectional adjusting screw spindle ensures a high clamping force to the beam web, enhancing both stability and operational safety during use. Engineered for demanding environments, the clamp operates reliably within a temperature range of -40°C to +80°C. It features a factor of safety of 5:1 for straight pulling and lifting, and 4:1 at all other angles, ensuring dependable performance under varying load conditions. The product also complies with ASME B30.20 and EN13155:2003+A2:2009 standards, demonstrating adherence to internationally recognised lifting and safety requirements.

Key Features of the AUC Clamp

• Full rated capacity at any lifting angle
• Quick and versatile rigging point for hoisting equipment
• Low headroom design
• Highly flexible - for lifting, pulling or as a semi-permanent anchor point
• Designed to accommodate a wide range of beam widths
• Multidirectional adjusting screw spindle ensures a high clamping force to the beam web
• Operating temperature -40°C to +80°C
• Factor of safety: 5:1 for straight pulling and lifting, 4:1 at all other angles
• Complies with ASME B30.20 and EN13155 : 2003+A2:2009

Specifications

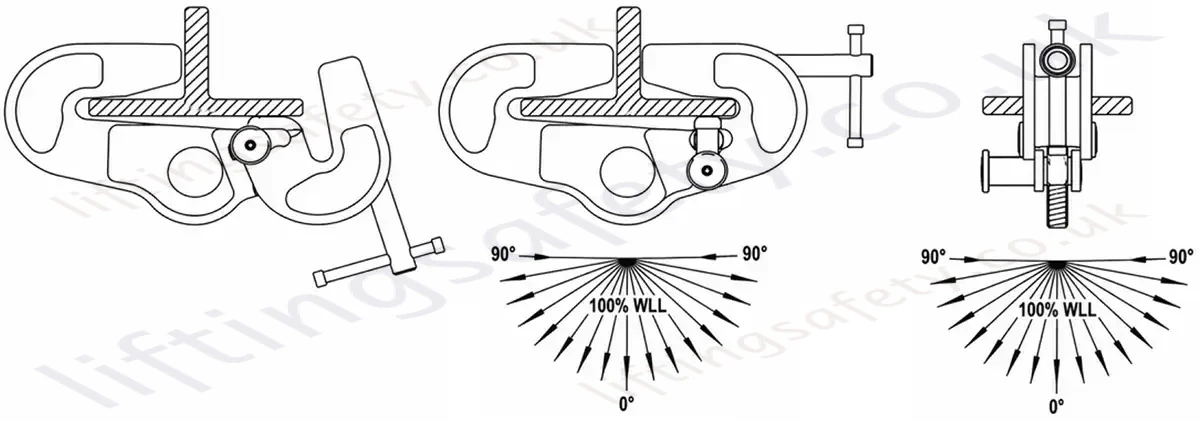

Loading Angles: 100% WLL
