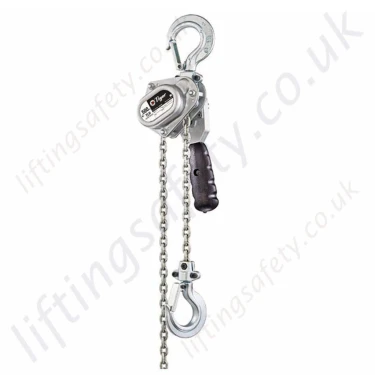

Tiger Mini Lever Hoist

Tiger Mini Lever Hoist

Rugged construction steel body lever hoist with lightweight and portable design. 250kg or 500kg lifting capacity.

Model:

LH-0025/LH-0050 / TMLH-5602

Tiger Mini Lever Hoist

Mini Lever Hoist Mini Lever Hoist with Optional Adaptor Self Locking Hook Fitting 500kg Lever Hoist In Belt Pouch

250kg or 500kg Mini Lever Hoist from Tiger Lifting

  • 360-degree handle rotation
  • Short stroke and low lever pulling effort
  • Easy single-hand “freewheeling” operation
  • Drop forged & heat-treated alloy hooks
  • Safe, reliable twin pawl mechanical brake
  • Proof tested to 1.5 times rated capacity
  • 1.5m height of lift as standard, but can be chained to exact requirements
  • Supplied with useful belt bags
  • Can be supplied with adapter fittings that replace the traditional load hook. Options include clevis shackles, self-locking hooks or reevable egg links.

See our comprehensive lever hoist range for larger capacities or additional features such as ATEX certification, corrosion protection, overload protection, etc.

Dimensions and Specifications

Product CodeCapacity (tonne)Effort (kg)Dimensions (mm)Load ChainStandard HOL (m)Mass@ std HOL (kg)Mass for extra metre HOL (kg)
ABCDEF1F2Diameter (mm)No. of falls
LH-0025 0.25 15 89 168 265 113 70 22 31 ⌀4.0 1 1.5 2.9 0.3
LH-0050 0.50 30 89 168 280 113 70 24 38 ⌀4.0 1 1.5 2.9 0.3

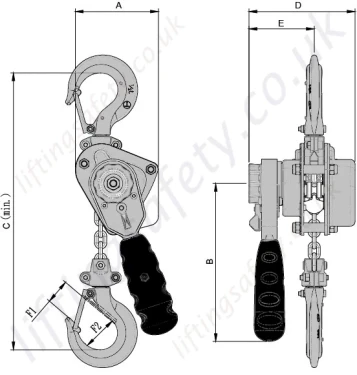

Mini Lever Hoist Dimensional Drawing

Pricing

(min:1.5) (1.5 included in price)
Sale Price £150.00

£132.00

Ex. VAT

Please Note: Buy online is only available to UK mainland customers and addresses. For anywhere else, please request a quote.

Availability

Usually 1-2 Days (Next working day delivery may be possible) - 1pm cut-off

Description

250kg or 500kg Mini Lever Hoist from Tiger Lifting

  • 360-degree handle rotation
  • Short stroke and low lever pulling effort
  • Easy single-hand “freewheeling” operation
  • Drop forged & heat-treated alloy hooks
  • Safe, reliable twin pawl mechanical brake
  • Proof tested to 1.5 times rated capacity
  • 1.5m height of lift as standard, but can be chained to exact requirements
  • Supplied with useful belt bags
  • Can be supplied with adapter fittings that replace the traditional load hook. Options include clevis shackles, self-locking hooks or reevable egg links.

See our comprehensive lever hoist range for larger capacities or additional features such as ATEX certification, corrosion protection, overload protection, etc.

Dimensions and Specifications

Product CodeCapacity (tonne)Effort (kg)Dimensions (mm)Load ChainStandard HOL (m)Mass@ std HOL (kg)Mass for extra metre HOL (kg)
ABCDEF1F2Diameter (mm)No. of falls
LH-0025 0.25 15 89 168 265 113 70 22 31 ⌀4.0 1 1.5 2.9 0.3
LH-0050 0.50 30 89 168 280 113 70 24 38 ⌀4.0 1 1.5 2.9 0.3

Mini Lever Hoist Dimensional Drawing
