ALR ALHC6 Compact Lever Hoist

0.25t or 0.5t Mini Lever Hoist from ALR: ALCH6 Series

Built for reliable, precise load control in tight spaces, the ALHC6 Compact Lever Hoist from Atlas Lifting & Rigging combines heavy-duty construction with full regulatory compliance - making it a dependable choice for lifting, pulling, and tensioning applications.

Key Features

• Secure Hook Closure - Reinforced cast-steel safety latches on both the top and bottom hooks ensure a positive, secure hold during every lift.
• Full Traceability - Each hook is clearly marked with overload indicators and identification codes, supporting easy inspection and compliance documentation.
• Corrosion-Resistant Chain - Fitted with G80 alloy steel load chain, zinc-finished for enhanced durability and compliant with EN818-7.
• Wide Operating Range - Performs reliably in temperatures from -20°C to +120°C, suiting both indoor and demanding outdoor environments.
• Built-In Safety Margins - Engineered with a 4:1 safety factor and proof-load tested at 1.5x the Working Load Limit (WLL), with a 2% WLL light-load rating.
• Certified to Global Standards - Fully compliant with British Standard BS EN13157:2004 + AI:2009 and American Standard ASME B30.16-2014.

Specifications

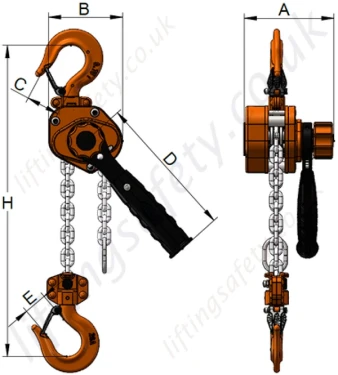

Capacity	Part Number	No. Chain Falls	Load Chain (mm)	Weight @ 1.5m HOL (kg)	Weight Per Additional Metre HOL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	H (mm)
250kg	ALHC6-0025	1	3.2 x 9	1.5	0.22	76	87	21	14	145	200
500kg	ALHC6-005	1	4.3 x 12	4.5	0.37	81	100.5	24.5	17	160	250
