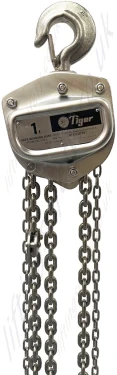

Tiger NX Stainless Steel Chain Block

Tiger NX Stainless Steel Chain Block

High grade stainless steel manual chain hoist designed for use in cleanroom, chemical, food industry or corrosive environments. 500kg to 3 tonne lifting capacity options.

Model:

Tiger NX / TNSS-5614

Tiger NX Stainless Steel Chain Block

1 Tonne Stainless Steel Manual Chain Hoist Full Stainless Steel Chain Hoist Stainless Steel Bottom Hook Block
More from:
Tiger Lifting

NX Stainless Steel Chain Block - High-Quality Stainless Steel Manual Hoist

The NX Stainless Steel Chain Block is a premium stainless steel chain hoist designed for demanding environments where corrosion resistance, hygiene, and durability are critical. Ideal for industries such as chemical plants, food processing, and pharmaceuticals, this stainless steel manual hoist ensures reliable lifting while meeting strict cleanliness standards.

Key Features of the Stainless Tiger Chain Hoist

  • Built for corrosion-sensitive and clean-room environments.
  • Equipped with a double brake pawl for superior safety and load control.
  • Electrolytically polished surfaces minimise contamination and enhance corrosion resistance.
  • Adjustable chain length to accommodate specific lifting requirements.
  • Constructed from high-grade stainless steel components:
    • Load chain: SUS316L
    • Hand chain: SUS316
    • Covers: SUS304L
    • Hooks and plates: SUS304
    • Pins and bushes: SUS420J2
    • Nameplate: SUS316

Technical Specifications: NX Series Stainless Chain Hoists

Product Code Capacity (tonne) Effort (kg) Dimensions Std. Chain Length Load Chain Spec No of Falls Std. Net Weight (kg)
H (min) L1 L2 W1 W2 D T Load Chain Hand Chain
NX-005-SS 0.5 18.0 355.0 65.0 85.0 84.5 62.0 ⌀38.0 27.0 2.5 2.0 ⌀6.3 1 12.5
NX-010-SS 1.0 24.0 425.0 82.5 110.5 91.8 72.8 ⌀46.0 32.0 2.5 2.0 ⌀7.9 1 20.5
NX-020-SS 2.0 25.0 586.0 64.2 173.0 91.8 72.8 ⌀64.0 51.0 3.0 2.5 ⌀7.9 2 38.0
NX-030-SS 3.0 30.0 655.0 75.1 201.0 95.5 80.5 ⌀64.0 51.0 3.0 2.5 ⌀10.0 2 50.0

NX Hoist Applications

The NX stainless steel chain block is a reliable stainless steel manual hoist for environments that demand hygiene and corrosion resistance, including:

  • Food and beverage processing
  • Pharmaceutical manufacturing
  • Chemical handling facilities
  • Clean room operations

This stainless steel chain hoist combines durability, safety, and precision, making it the ideal choice for industries requiring reliable manual lifting solutions in corrosive or sanitary environments.

Contact Us About This Product

If you wish to receive a quote for this product, please use the Pricing section to the right, this form is for general enquiries regarding this product only.

Regarding: Tiger NX Stainless Steel Chain Block
Did you know?

You can also request a quote through the pricing tab!

You can easily add more than one item to the Quote Request. This is highly recommended as we will be able to suit your needs much more efficiently.

Share this page!

qrcode

Pricing

(min:3)
Unit Price Request Quote

NX Stainless Steel Chain Block - High-Quality Stainless Steel Manual Hoist

The NX Stainless Steel Chain Block is a premium stainless steel chain hoist designed for demanding environments where corrosion resistance, hygiene, and durability are critical. Ideal for industries such as chemical plants, food processing, and pharmaceuticals, this stainless steel manual hoist ensures reliable lifting while meeting strict cleanliness standards.

Key Features of the Stainless Tiger Chain Hoist

  • Built for corrosion-sensitive and clean-room environments.
  • Equipped with a double brake pawl for superior safety and load control.
  • Electrolytically polished surfaces minimise contamination and enhance corrosion resistance.
  • Adjustable chain length to accommodate specific lifting requirements.
  • Constructed from high-grade stainless steel components:
    • Load chain: SUS316L
    • Hand chain: SUS316
    • Covers: SUS304L
    • Hooks and plates: SUS304
    • Pins and bushes: SUS420J2
    • Nameplate: SUS316

Technical Specifications: NX Series Stainless Chain Hoists

Product Code Capacity (tonne) Effort (kg) Dimensions Std. Chain Length Load Chain Spec No of Falls Std. Net Weight (kg)
H (min) L1 L2 W1 W2 D T Load Chain Hand Chain
NX-005-SS 0.5 18.0 355.0 65.0 85.0 84.5 62.0 ⌀38.0 27.0 2.5 2.0 ⌀6.3 1 12.5
NX-010-SS 1.0 24.0 425.0 82.5 110.5 91.8 72.8 ⌀46.0 32.0 2.5 2.0 ⌀7.9 1 20.5
NX-020-SS 2.0 25.0 586.0 64.2 173.0 91.8 72.8 ⌀64.0 51.0 3.0 2.5 ⌀7.9 2 38.0
NX-030-SS 3.0 30.0 655.0 75.1 201.0 95.5 80.5 ⌀64.0 51.0 3.0 2.5 ⌀10.0 2 50.0

NX Hoist Applications

The NX stainless steel chain block is a reliable stainless steel manual hoist for environments that demand hygiene and corrosion resistance, including:

  • Food and beverage processing
  • Pharmaceutical manufacturing
  • Chemical handling facilities
  • Clean room operations

This stainless steel chain hoist combines durability, safety, and precision, making it the ideal choice for industries requiring reliable manual lifting solutions in corrosive or sanitary environments.
