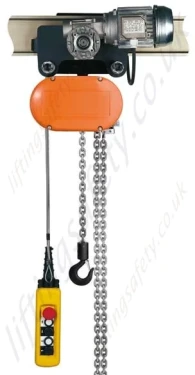

Lodestar Electric Hoist with Electric Beam Trolley by CM
The CM Lodestar hoist is a tough and durable electric chain hoist, designed to keep working in the most arduous applications. The Lodestar is recognised and proven within the hire industry as the number one electric hoist, where high duty, combined with long lifting heights, is required. The CM Lodestar has a proven reputation as the solution for industrial strength lifting.
Looking for a Lodestar with a push beam trolley, or a Lodestar with a top hook? We offer those too. View all Lodestar electric chain hoist variants to find out more about all of the options available.
Lodestar Features
- Capacity options available: 250kg, 500kg, 1000kg and 2000kg.
- 250kg and 500kg are available in single-phase 230V only. 1-tonne and 2-tonne are available in single phase as 110V or 230V, as well as in 400V three-phase.
- Also available with a top suspension hook or a manual beam trolley.
- 48v control, IP65 pendant as standard (Hoist is IP54).
- Thermal overload protection is standard on all Lodestars.
- FEM classification 2m (40% duty - 24 minutes continuous use per hour).
- Motor classification H4.
- Standard operating temperature -10°C to +65°C.
- Excellent closed height dimensions.
- A lifetime lubricated gearbox contributes to exceptional service and maintenance characteristics.
- 3-phase single-speed hoist motors are dual voltage.
- The load hook has an axial bearing.
- Ideal for long heights of lifts.
- The Lodestar is designed and built for the hire industry, where heavy-duty is a necessity.
- Large frame, single-phase hoists are supplied with handles and a 1 metre supply cable with a Cee-Form plug.
Lodestar Models and Specifications
| Model |
Hoist Capacity (SWL) |
Falls of Load Chain |
Voltage |
Load Chain (depth x pitch) (mm) |
Lodestar Frame Type |
Lifting Speed (m/min) |
Closed Height (mm) |
Weight @ Std HOL with Top Hook (kg) |
| CMLS250/230-8 |
250kg |
1 |
230V - Single Phase |
6.3 x 18.9 |
C |
8 |
413* |
29 |
| CMLS250/110-8 |
250kg |
1 |
110V - Single Phase |
6.3 x 18.9 |
C |
8 |
413* |
29 |
| CMLS500/230-4 |
500kg |
1 |
230V - Single Phase |
6.3 x 18.9 |
F |
4 |
413* |
29 |
| CMLS500/110-4 |
500kg |
1 |
110V - Single Phase |
6.3 x 18.9 |
F |
4 |
413* |
29 |
| CMLS500/230-8 |
500kg |
1 |
230V - Single Phase |
7.9 x 21.7 |
J |
8 |
471* |
51 |
| CMLS500/110-8 |
500kg |
1 |
110V - Single Phase |
7.9 x 21.7 |
J |
8 |
471* |
51 |
| CMLS1000/230-4 |
1 tonne |
1 |
230V - Single Phase |
7.9 x 21.7 |
L |
4 |
471* |
52 |
| CMLS1000/110-4 |
1 tonne |
1 |
110V - Single Phase |
7.9 x 21.7 |
L |
4 |
471* |
52 |
| CMLS1000/400-8 |
1 tonne |
1 |
400V - Three Phase |
7.9 x 21.7 |
LL |
8 |
- |
52 |
| CMLS1000/400-8/2.5 |
1 tonne |
1 |
400V - Three Phase |
7.9 x 21.7 |
LL2 |
8/2.5 |
- |
53 |
| CMLS2000/230-2 |
2 tonne |
2 |
230V - Single Phase |
7.9 x 21.7 |
R |
2 |
613* |
58 |
| CMLS2000/110-2 |
2 tonne |
2 |
110V - Single Phase |
7.9 x 21.7 |
R |
2 |
613* |
58 |
| CMLS2000/400-4 |
2 tonne |
2 |
400V - Three Phase |
7.9 x 21.7 |
RR |
4 |
- |
58 |
| CMLS2000/400-4/1.3 |
2 tonne |
2 |
400V - Three Phase |
7.9 x 21.7 |
RR2 |
4/1.3 |
- |
59 |
*Please note that if a Lodestar is supplied with a chain collector bag, then the hoist's upper limit switch is preset to achieve a maximum raised hook height equal to the bottom of the chain container, to avoid load interference with the chain container.
As you may or may not know, CM, Columbus McKinnon, or the Columbus McKinnon Corporation (CMCO), to give the giant its full name, also owns and operates other world-renowned industry-leading brands, such as Yale and Stahl. Because of this, if the CM Lodestar isn't for you, or doesn't quite fit your needs, then you can have peace of mind knowing that there may be a Yale electric hoist or a Stahl electric hoist that still comes from the CMCO brand that does meet your requirements.
