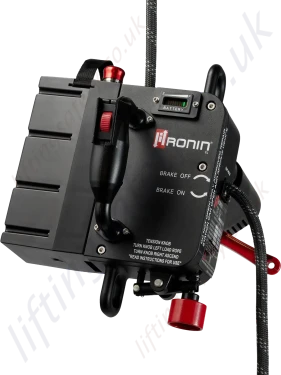

Ronin TL (Titan Lift) Powered Ascender with Hot Swappable Battery
The FS160-200 Ronin Powered Ascender is a compact, high-performance lifting solution engineered to deliver reliability, safety, and efficiency in demanding at-height environments. As a leading powered ascender, it combines a lightweight yet rugged construction with advanced safety features, making it ideal for industries such as arboriculture, telecommunications, construction, wind energy, and infrastructure maintenance.
Ronin TL Kit Specifications
- Width (W): 28.58 cm (11.25 in.)
- Depth (D): 34.29 cm (13.50 in.)
- Height (H): 29.85 cm (11.75 in.)
- Weight: approx. 9 kg (20 lbs) including battery
- Construction: Aluminium, Stainless Steel and Bronze
- Finish: Powder Coated Black
- Operating Temperature Range: -20 °C - +49 °C (-4 °F -120 °F)
- Ingress Protection: IP55
- Battery Type: 48 VDC Lithium Ion Rechargeable
- Battery Life Ascent:107 m of rope @ 181.43 kg (350 ft. of rope @ 400 lbs.)
- Standard Battery:213 m of rope @ 90.71 kg (700 ft. of rope @ 200 lbs.)
- Battery Re-Charge Time: Approximately 2 hours
- Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope - See the full list of approved ropes below.
- Rope Loading: End Feed
- Ascent Speed: Variable 0.15 - 0.46 m/per second (0.5 - 1.5 ft./per second)
- Descent Method: Gravity Feed with Manual Brake
- Descent Speed: 1.06 m/sec. max @ 181 kg (2.8 ft./sec. max @ 400 lbs.)
- Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
- Max Working Load: 181 kg (400 lbs.)
- Product Certifications: CE Certified & ANSI Certified
- Reverse Functionality: For Angled Ascents, winching applications, and removing rope from the system.
- Battery Re-Charge Time: Approximately 2 hours
- Battery Re-Charge Time Fast Charger Option: Approximately 45 minutes. Contact us for more information about the fast charger option.
Features
- 181 kg (400 lbs.) Safe Working Load for lifting personnel and equipment with confidence
- Variable speed control (0.5 - 1.5 ft./sec) with thumbwheel trigger for smooth, precise operation
- Hands-free braking system with secondary safety lock for enhanced control and security
- Gravity-feed descent for controlled and efficient downward movement
- Automatic end-feed rope loading system that securely captures the rope and prevents accidental detachment
- Supports angled ascents for increased versatility in complex environments
- Hot-swappable lithium battery with optional charge indicator display for continuous, all-day operation
- The battery indicator power selector switch allows the display to be turned on or off as needed
- Water-resistant (IP54 rated) for reliable performance in challenging conditions
- Wide operating temperature range from -20°C to +49°C (-4°F to 120°F)
- Lightweight, portable design for ease of transport and deployment
- Rugged, durable construction built for harsh industrial environments
- Fully compatible with existing climbing systems and rope access equipment
- Functions as both a powered ascender and a winch, offering maximum operational flexibility

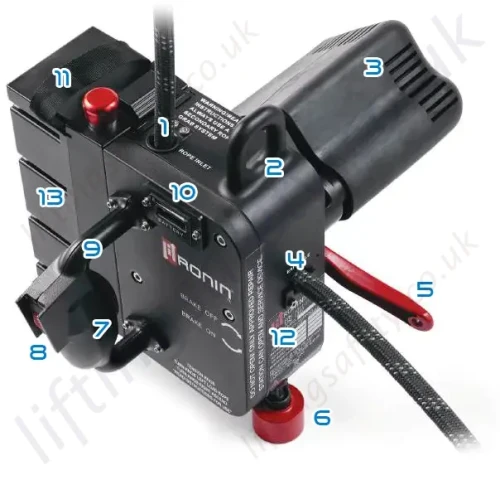

Labelled Features
- Rope Inlet
- 2:1 Mechanical Advantage Attachment Point
- Motor, Gearbox and Protective Rubber Cover
- Rope Outlet
- Manual Brake Release
- Tensioner Knob
- Anti-Panic Trigger Handle
- Variable Speed Thumbwheel Control
- Machine Guarded Handle
- Battery Indicator
- Nylon Carry Strap
- Reverse Switch
- 48 VDC Lithium Ion Battery
Kit Components
- 1 x Ronin lift TL Titan powered ascender featuring anti-panic handle and reverse function.
- 1 x Li-Ion battery (additional batteries are available upon request).
- 1 x charger & charger cable
- 1 x hard case with protective foam insert.
- 1 x rope brush
- 1 x rubber motor protector
- 1 x perfect burn tip
- An optional wireless remote control is available upon request.

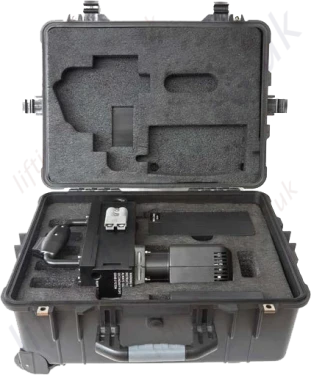

Hard Protective Transport Case

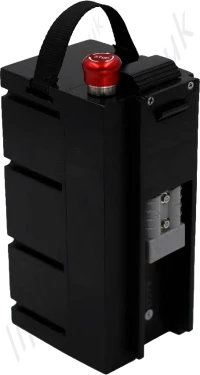

Ronin Lift Replaceable Battery

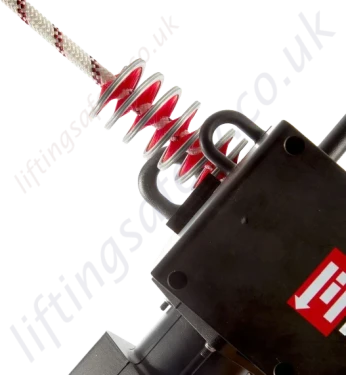

Rope Brush
Perfect Burn Kit

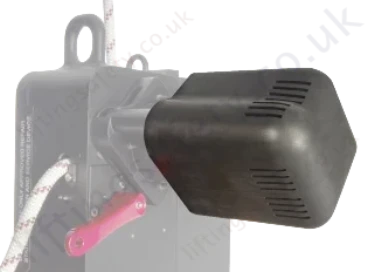

Removable Rubber Motor Cover
Optional Remote Control
Approved Ropes (Titan Lift Only!)
Below are the fully approved ropes to be used with the Ronin Titan Lift.
- Marlow – Ronin HP Rope (Tech-Nora)
- Marlow – ProTech 500 (Tech-Nora)
- Teufelberger – KMIII Max
- Teufelberger – X-Static (11.7 mm dia.)
- Korda’s – Titania 12 (12 mm dia.)
- Yale Cordage – Scandere (11.7 mm dia.)
- Sterling – HTP Red (13 mm dia.)
- Sterling – Tech 125 (12.7 mm dia.)
- Sterling – WorkPro (12.7 mm dia.)
Ronin TL Serial Numbers 3000-R and up only
- Rope Type: Static Rope
- Rope Diameter: 11.5 mm – 13 mm
Remember to never put dynamic rope into your Ronin Ascender. Only approved ropes tested by Ronin should be used. Please refer to the above list for Approved Ropes.
Ronin do not force the usage of a single rope for our ascender. However, not all ropes are created equal. With that in mind, refer to the above list of ropes we’ve approved for use with our system. The rope will have a big impact on how your ascender performs. We recommend choosing from the approved ropes list only.
Applications
- Tower/Telecommunication
- Power Utility
- Wind Turbine
- Arbor care
- Rescue
- Police/Fire
- Construction
- Building Maintenance
Improve Safety and Efficiency with a Powered Ascender
Designed to reduce the physical strain of climbing, this powered ascender significantly improves working conditions by minimising fatigue and lowering the risk of injury. Automating vertical access enables operators to work more efficiently and safely, ultimately enhancing productivity and extending careers in physically demanding roles.
High-Performance Powered Ascender Capabilities
Despite its compact size, the Ronin Powered Ascender delivers exceptional lifting capability, with a safe working load of up to 181 kg (400 lbs). It features variable speed control, allowing smooth and controlled ascent between 0.15-0.46 metres per second, as well as a hands-free braking system that ensures user safety during operation.
Advanced Rope Management System
One of the defining innovations of this powered ascender is its automatic end-feed rope system, which securely captures the rope within the device and helps prevent accidental detachment. This not only enhances safety but also enables angled ascents and more versatile operational use compared to traditional ascenders.
Battery Performance and Runtime
The Ronin system is powered by a 48V lithium-ion battery, offering reliable performance across a range of workloads. It provides approximately 107 metres of ascent at maximum load, or up to 213 metres with lighter loads, and can be fully recharged in around 2-3 hours. The hot-swappable battery design allows users to quickly change batteries mid-operation, ensuring minimal downtime and continuous workflow on demanding job sites.
Built for Harsh Environments
This powered ascender is designed to withstand challenging conditions, featuring a durable aluminium and stainless-steel construction, along with water resistance and an operating temperature range of -20°C to +49°C. This makes it a dependable solution for use in extreme weather and demanding industrial environments.
Ronin Titan Lift (TL) Kit
Advanced Powered Ascender Technology
The Ronin Titan Lift (TL) represents one of the most advanced and portable powered ascender systems available today. Recognised as one of the smallest and lightest devices in its class, it delivers powerful lifting performance without compromising portability or ease of use.
Versatile Applications
This powered ascender is designed for a wide range of applications, including search and rescue, evacuation, rope access, cargo handling, inspections, and training scenarios. Its versatility makes it an essential tool for professionals who require reliable vertical mobility in complex or restricted environments.
Complete Powered Ascender Kit
The complete kit includes everything required for immediate deployment and ongoing maintenance, such as:
- Ronin Titan Lift Ascender
- Wireless remote control (optional, not included as standard)
- Anti-panic handle and reverse function
- Rechargeable battery and charger
- Durable hard case with custom foam
- Rope brush and protective components
Enhanced Safety and Control Features
In addition to its core lifting capabilities, the Ronin Titan Lift incorporates features such as gravity-feed descent, secondary safety lock-out systems, and battery status indicators, ensuring both operational control and user confidence at all times.
A Market-Leading Powered Ascender
Overall, the Ronin system stands out as a market-leading powered ascender, combining compact design, high load capacity, and advanced safety innovations. Whether used for industrial access, rescue operations, or maintenance work, it provides a modern, efficient solution for overcoming the challenges of working at height.
